JL Industries 1024 Academy Trimless Recessed Fire Extinguisher Cabinet, Aluminum

The JL Industries 1024 is an Academy series trimless recessed fire extinguisher cabinet in aluminum with trimless trim, built around a 10-1/2" x 24" x 6" tub. The Academy is the aluminum member of the architectural series. Door and trim are clear anodized aluminum; the tub is white powder coated cold rolled steel, except on surface mount models, where the tub is clear anodized aluminum to match. It suits projects where aluminum storefront, frames or trim set the finish vocabulary. A .040" aluminum tub is available as an option for non-rated use, and a .050" dark bronze anodized finish is offered as an alternative to clear. Academy shares the Ambassador tub sizes, trim projections and door styles; add 5/8" wall depth for cabinets with aluminum frames.

Fits: Cosmic 2.5 lb - 10 lb, Galaxy 2.5 lb - 10 lb, Mercury 2.5 lb - 5 lb, Sentinel 5 lb.

Configure this cabinet

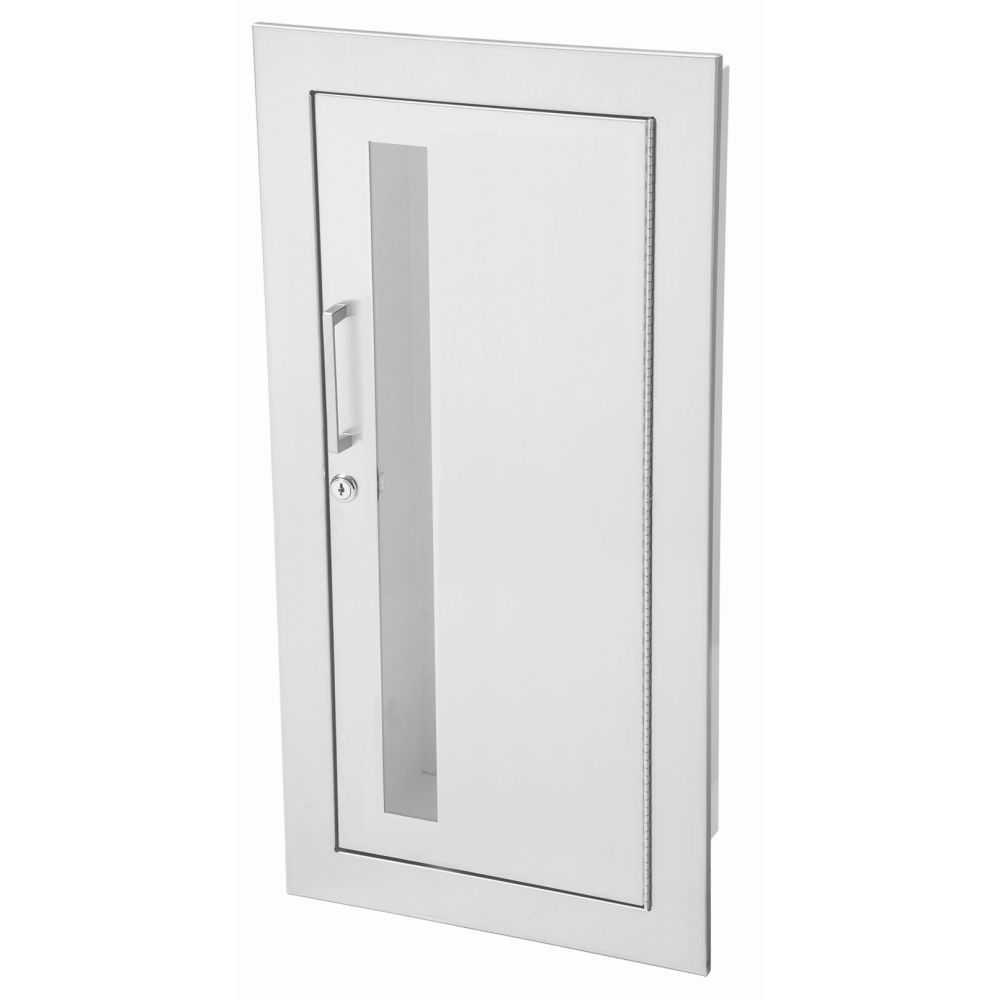

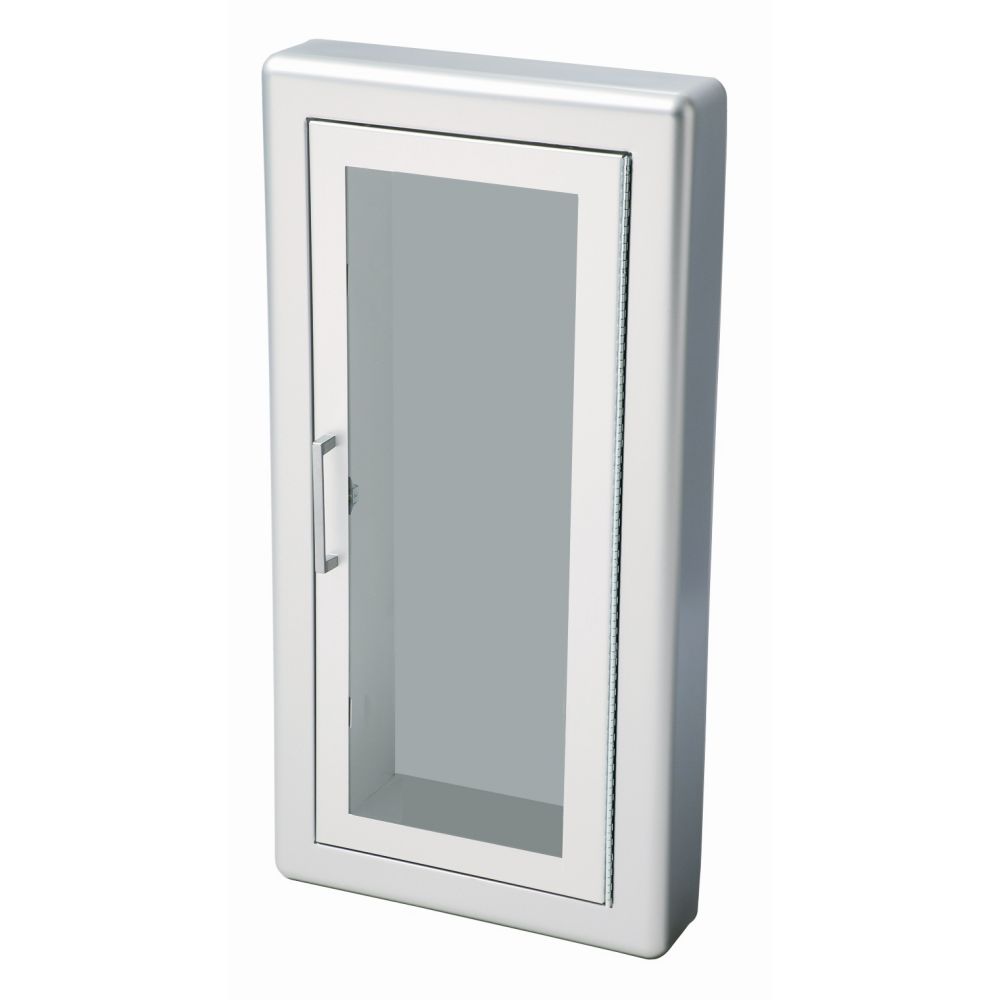

Door style: Full Glass, Full Glass + Saf-T-Lok, Vertical Duo, Vertical Duo + Saf-T-Lok, Horizontal Duo, Horizontal Duo + Saf-T-Lok, Solid Door, Solid Door + Saf-T-Lok. Saf-T-Lok (SL-LC) is the standard lock for most locking cabinets: a theft-deterrent keyed cylinder lock used instead of a break glass lock lever, since breaking glass in a panic can injure people and create liability. The door appears locked and is, but a sharp pull breaks or bends a replaceable plastic cam and opens it. The cam is 1-5/8" x 1" x 3/32" and is replaced with a Phillips head screwdriver.

Glazing: Glazing 10 is 0.090" clear acrylic, the standard clear glazing. Glazing 15 is 1/8" bronze acrylic, for a tinted door. Glazing 16 is 1/8" gray acrylic, a neutral tint. Glazing 17 is 1/8" clear tempered glass. Glazing 18 is 1/4" clear safety glass, shown in the catalog as laminated safety.

Pull / handle: Pull handles are 4" CTC in finishes matching the cabinet material, with a standard zinc pull (PUS) on most cabinets. The flush recessed pull (PRH, model suffix A) is a plastic cup-type handle, standard on all 4" trim cabinets and optional elsewhere; on a vertical duo door it moves the window to the right. The chrome lever handle (LH) is optional on cabinets without Saf-T-Lok.

Colored powder-coat finishes, magnetic catches, decorative bronze or brass pulls, Futura cast handles, wired glass and alarms are available on request — ask for a quote with your model number.

Dimensions

• Tub (inside): 10-1/2" x 24" x 6" (W x H x D)
• Trim / frame outside: 13-7/8" x 27-3/8"
• Wall opening: 11-1/2" x 25"
• Wall depth required: 6-1/8" — add 5/8" wall depth for aluminum frames
• Trim: Trimless
• Approx. ship weight: 15 lb

ADA Standards for protruding objects specify that objects projecting from walls with leading edges between 27" and 80" above the finished floor shall protrude no more than 4" into walkways. The ADA also states the cabinet handle cannot be mounted higher than 48" AFF where only a forward approach in a wheelchair is possible. Trimless, 3/8" flat, 2-1/4" and 1-1/2" square, 3" rolled and 4" rolled trims meet the 4" rule; 4-1/2" rolled and surface mount do not.

Fire-rated wall? Order the Fire-FX2 version, model 1024FX2, which carries the same door, glazing and pull options.

Availability: built to order by JL Industries to the configuration you select. Ask us for the current lead time before you schedule an install.

Model number key: tub 10 = 10-1/2" x 24" x 6"; material Aluminum; trim Trimless Recessed Flange. All fire protection products carry a one year warranty after the date of shipment against defects in materials and workmanship, and the manufacturer will replace or repair any product found defective within this period at its discretion. No other warranty expressed or implied is valid; fire extinguishers may carry a longer warranty and manufacturer's warranty terms and conditions apply in all cases.
