JL Industries 3028 Academy Semi-Recessed Fire Extinguisher Cabinet, 4 1/2" Rolled Trim, Aluminum

The JL Industries 3028 is an Academy series semi-recessed fire extinguisher cabinet in aluminum with 4 1/2" rolled trim, built around a 16" x 32" x 7-3/4" tub. The Academy is the aluminum member of the architectural series. Door and trim are clear anodized aluminum; the tub is white powder coated cold rolled steel, except on surface mount models, where the tub is clear anodized aluminum to match. It suits projects where aluminum storefront, frames or trim set the finish vocabulary. A .040" aluminum tub is available as an option for non-rated use, and a .050" dark bronze anodized finish is offered as an alternative to clear. Academy shares the Ambassador tub sizes, trim projections and door styles; add 5/8" wall depth for cabinets with aluminum frames.

Fits: Any Cosmic or Galaxy (20 lb mounts to back of tub), any Mercury, any Saturn, Grenadier, Sentinel 5 lb - 15 lb, Nebula 250, 270, 272.

Configure this cabinet

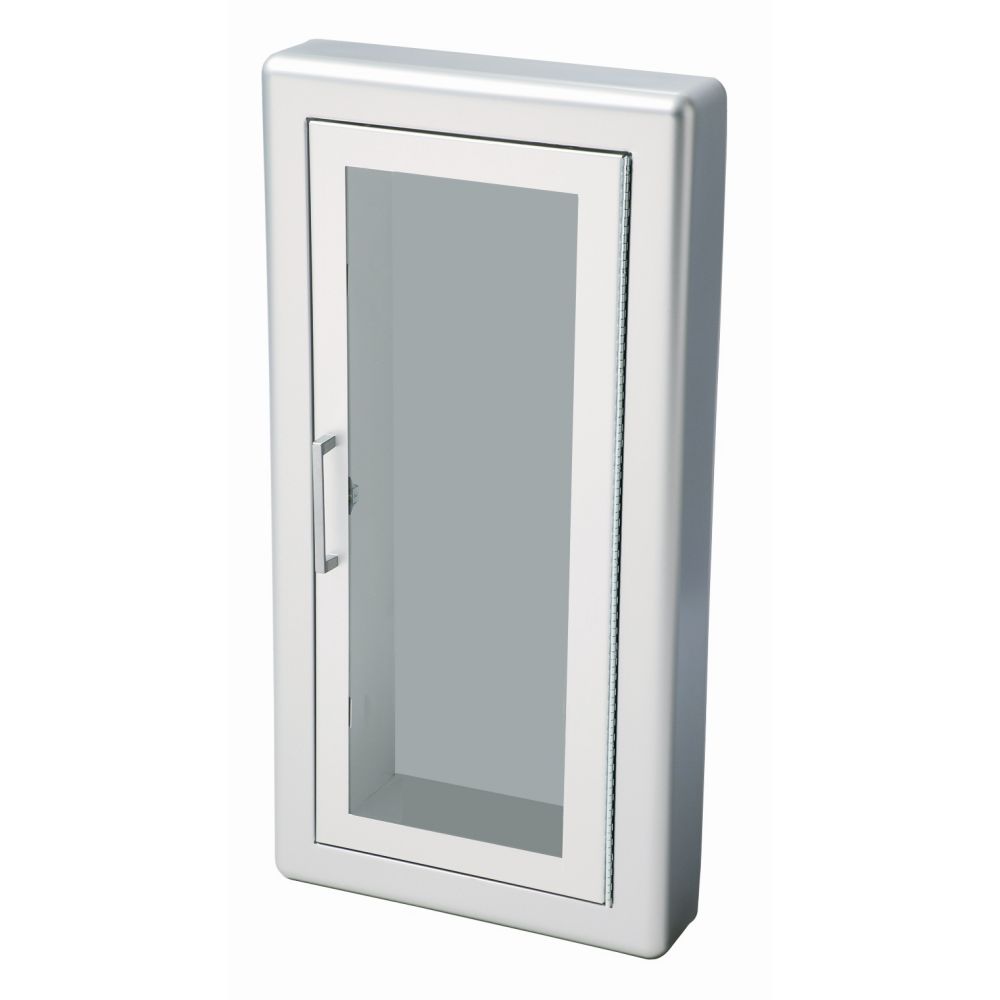

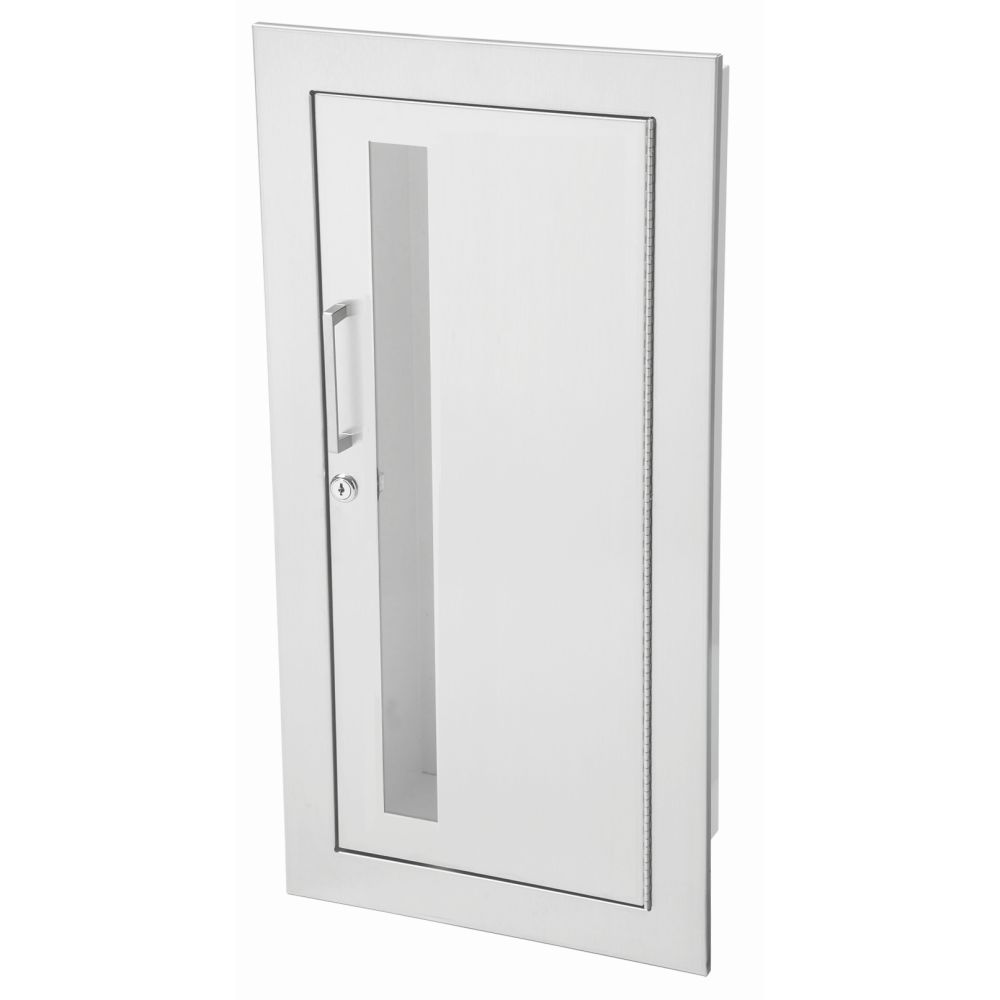

Door style: Full Glass, Full Glass + Saf-T-Lok, Vertical Duo, Vertical Duo + Saf-T-Lok, Horizontal Duo, Horizontal Duo + Saf-T-Lok, Solid Door, Solid Door + Saf-T-Lok, Panorama Clear Polycarbonate, Panorama Clear Polycarbonate + Saf-T-Lok, Panorama Colored Acrylic, Panorama Colored Acrylic + Saf-T-Lok. Saf-T-Lok (SL-LC) is the standard lock for most locking cabinets: a theft-deterrent keyed cylinder lock used instead of a break glass lock lever, since breaking glass in a panic can injure people and create liability. The door appears locked and is, but a sharp pull breaks or bends a replaceable plastic cam and opens it. The cam is 1-5/8" x 1" x 3/32" and is replaced with a Phillips head screwdriver.

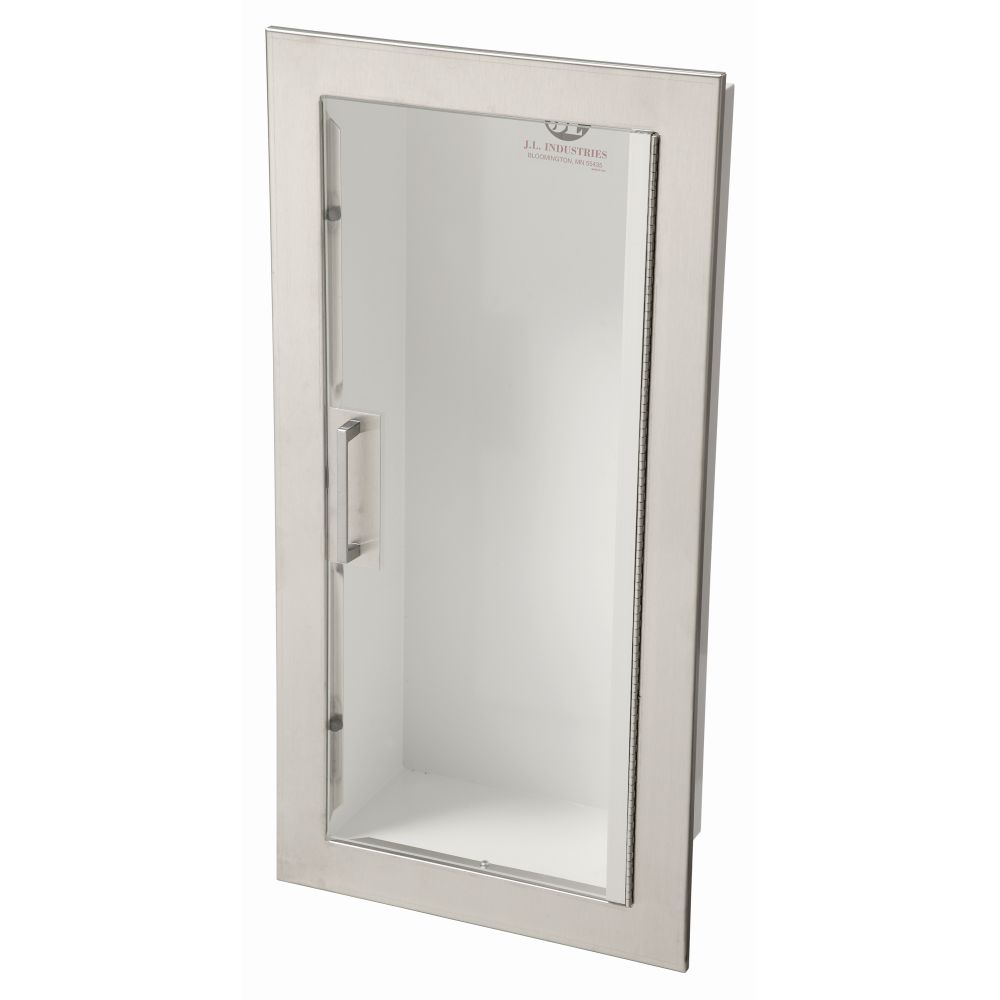

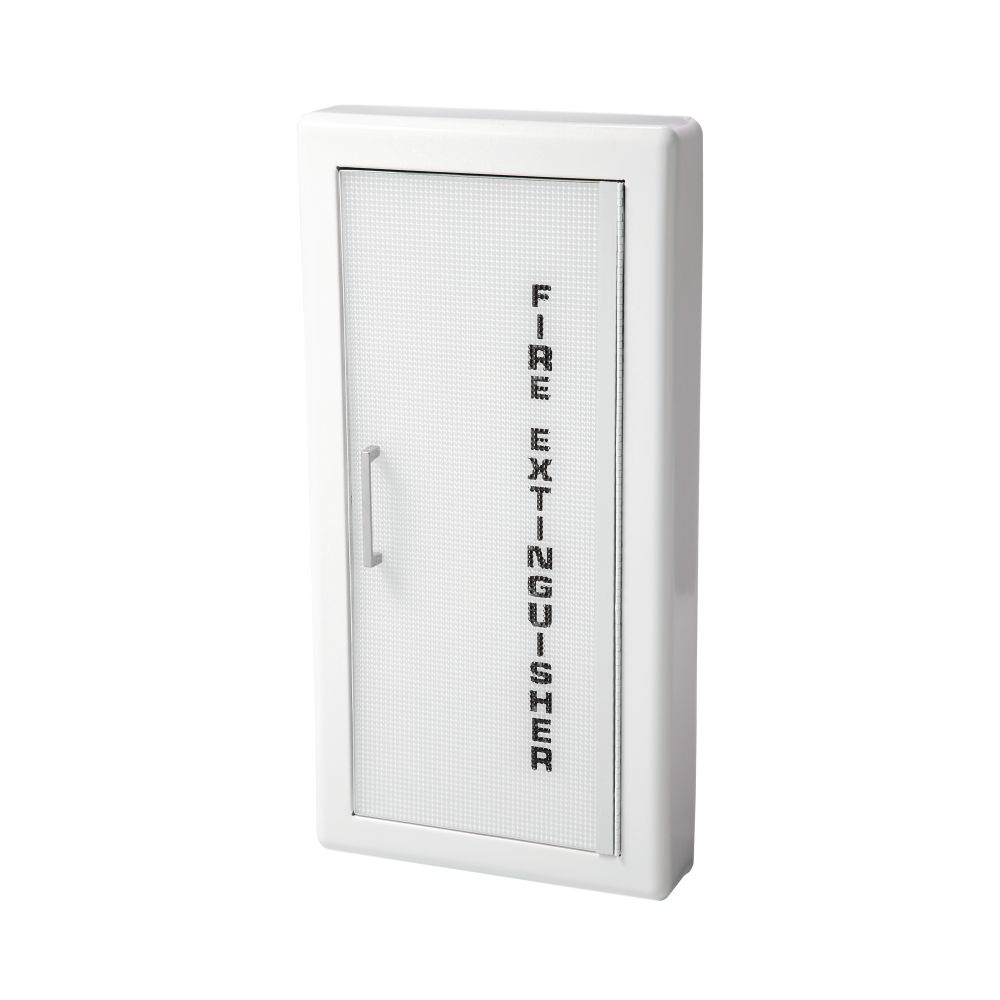

Glazing: Glazing 10 is 0.090" clear acrylic, the standard clear glazing. Glazing 15 is 1/8" bronze acrylic, for a tinted door. Glazing 16 is 1/8" gray acrylic, a neutral tint. Glazing 17 is 1/8" clear tempered glass. Glazing 18 is 1/4" clear safety glass, shown in the catalog as laminated safety. Panorama door style C uses 70 clear polycarbonate and 71 3/16" clear polycarbonate with Saf-T-Lok, while Panorama door styles P and Q use 3/16" acrylic in codes 40-53, covering black, red or white acrylic with white, black or red letters in vertical (40-43), horizontal (45-48) or ascending (50-53) orientation.

Pull / handle: Pull handles are 4" CTC in finishes matching the cabinet material, with a standard zinc pull (PUS) on most cabinets. The flush recessed pull (PRH, model suffix A) is a plastic cup-type handle, standard on all 4" trim cabinets and optional elsewhere; on a vertical duo door it moves the window to the right. The chrome lever handle (LH) is optional on cabinets without Saf-T-Lok.

Colored powder-coat finishes, magnetic catches, decorative bronze or brass pulls, Futura cast handles, wired glass and alarms are available on request — ask for a quote with your model number.

Dimensions

• Tub (inside): 16" x 32" x 7-3/4" (W x H x D)
• Trim / frame outside: 19-3/8" x 35-3/8"
• Wall opening: 17" x 33"
• Wall depth required: 3-3/8" — add 5/8" wall depth for aluminum frames
• Trim: 4 1/2" Rolled
• Approx. ship weight: 32 lb

Fire-rated wall? Order the Fire-FX2 version, model 3028FX2, which carries the same door, glazing and pull options.

Availability: built to order by JL Industries to the configuration you select. Ask us for the current lead time before you schedule an install.

Model number key: tub 30 = 16" x 32" x 7-3/4"; material Aluminum; trim Semi-Recessed 4-1/2" Rolled Edge. All fire protection products carry a one year warranty after the date of shipment against defects in materials and workmanship, and the manufacturer will replace or repair any product found defective within this period at its discretion. No other warranty expressed or implied is valid; fire extinguishers may carry a longer warranty and manufacturer's warranty terms and conditions apply in all cases.
