- Model
- 01010
- UL rating
- 10A:120B:C
- Ship weight
- 36.5 lb
- H × W × D
- 24.0″ × 10.25″ × 7.0″

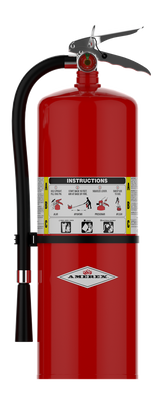

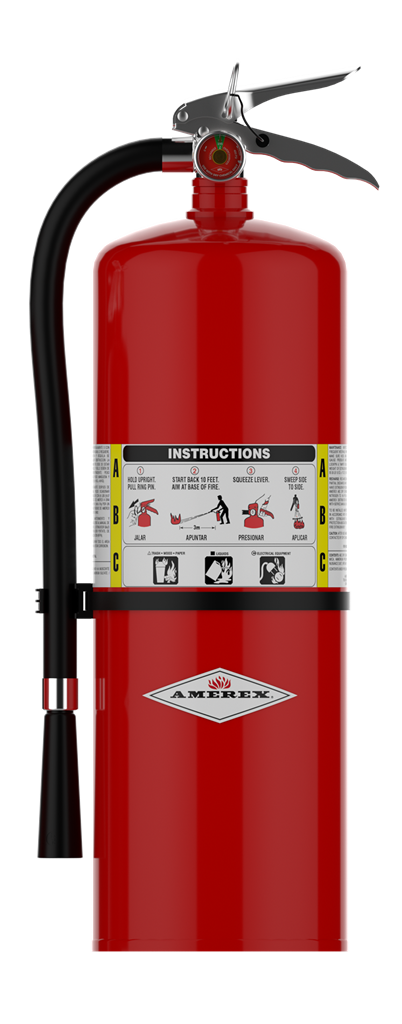

Amerex 423 20 lb ABC Dry Chemical Fire Extinguisher
FSP · P-02
What it is

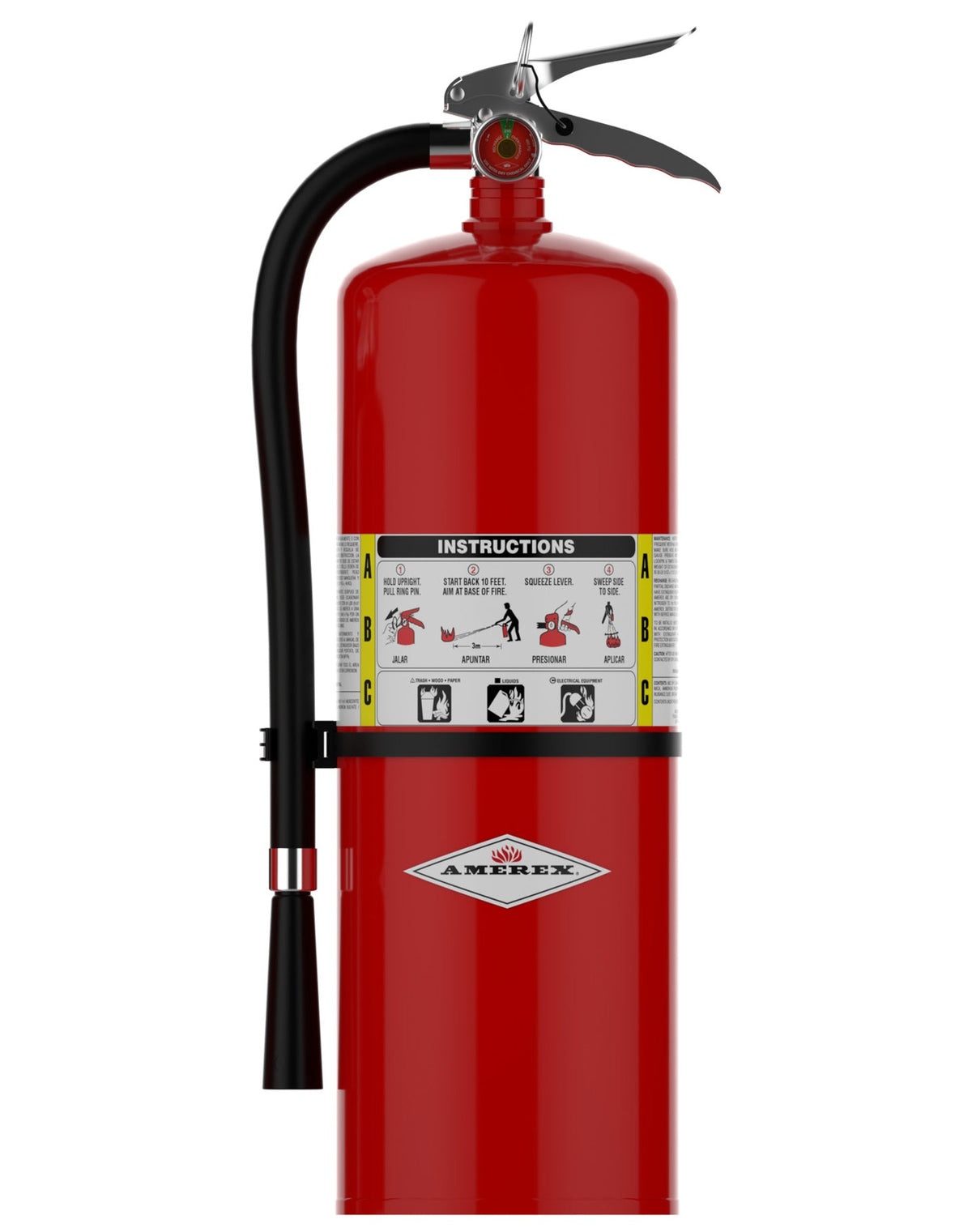

Amerex 423 is a 20 lb ABC dry chemical fire extinguisher rated 10A:120B:C for ordinary combustibles, flammable liquids and gases, and live electrical equipment. Discharge runs 30 seconds with an initial range of 15 to 21 ft at 195 PSIG. The agent is a specially fluidized and siliconized mono ammonium phosphate that melts and coats the burning surface, insulating Class A fuel and breaking the chain reaction on Class B fires. The cylinder is drawn-steel with a chrome-plated brass valve body, stainless steel handle and lever. A wall bracket ships with the extinguisher. The operating temperature range is −65°F to 120°F.
Twenty pounds of ABC dry chemical make the Amerex 423 a workhorse for warehouses, loading docks, manufacturing floors and large retail spaces where a 5 lb unit simply runs out too soon. Rated 10A:120B:C, it covers ordinary combustibles such as wood, paper and fabric alongside flammable liquids and energized electrical equipment. This is the brass-valve build of Amerex's 20 lb platform: a heavy-duty chrome-plated brass valve body with a stainless steel handle and lever, mounted on a dependable drawn steel cylinder finished in durable high-gloss polyester powder paint. Bilingual labels and straightforward serviceability keep the 423 easy and economical to maintain over a long working life.
- 10A:120B:C UL rating covers Class A, Class B and Class C hazards from a single unit
- 20 lb ABC dry chemical charge for larger commercial and industrial floor areas
- All-metal valve construction with heavy-duty chrome plated brass valve body
- Stainless steel handle and lever; dependable drawn steel cylinder
- Durable high gloss polyester powder paint finish and bilingual labels
Specifications
| Model | 423 |
|---|---|
| Item / Part No. | 01010 |
| UL Rating | 10A:120B:C |
| Capacity | 20 lb |
| Shipping Weight | 36.5 lb |
| Dimensions (H x W x D) | 25.13 in x 7.5 in x 7.5 in |
| Valve | Chrome plated brass body, stainless steel handle and lever |
FSP · P-03
Submittal data
The same values print on the submittal sheet.
| Ratings and agent | |
|---|---|
| UL and ULC rating | 10A:120B:C |
| Capacity | 20 lb |
| Agent | ABC dry chemical |
| Agent chemical base | Mono ammonium phosphate, specially fluidized and siliconized |
| Discharge design | Hose & Nozzle |
| Discharge | |
|---|---|
| Discharge time | 30 seconds |
| Initial range | 15 to 21 ft |
| Nominal operating pressure | 195 PSIG |
| Construction | |
|---|---|
| Cylinder material | Drawn-steel |
| Finish | High-gloss polyester powder paint |
| Valve construction | All-metal |
| Valve material | Chrome-plated brass valve body / Stainless steel handle & lever |
| Operating temperature range | −65°F to 120°F |
| Dimensions and weight | |
|---|---|
| Height | 24 in |
| Width | 10.25 in |
| Depth | 7 in |
| Cylinder diameter | 7 in |
| Shipping weight | 38 lb |
| Mounting and standards | |
|---|---|
| Included bracket | Wall |
| Optional brackets | 810 |
| Tested to | CAN/ULC-S504 - UL 299 & CAN/ULC-S508 - UL 711 |
| Warranty | 6-Year manufacturer's warranty |
| Item | |
|---|---|
| Amerex item number | 01010 |
FSP · P-04
Documents
FSP · P-05
General notes
What is the UL rating of the Amerex 423?
10A:120B:C.
How many pounds of dry chemical is in the Amerex 423?
20 lb of ABC dry chemical - a specially fluidized and siliconized mono ammonium phosphate.
How long does the Amerex 423 discharge for?
30 seconds.
Is there a chrome version of the Amerex 423?
No. The OPTIONAL CHROME CYLINDER row of the ABC spec table has no entry for this model.
How far does the Amerex 423 spray?
Initial range 15-21 ft.
What are the dimensions of the Amerex 423?
Height 24 in., width 10.25 in., depth 7 in., on a 7 in. diameter cylinder.
How much does the Amerex 423 weigh?
38 lb shipping weight. Amerex notes that shipping weight includes the box.
What pressure does the Amerex 423 operate at?
195 PSIG nominal operating pressure. The parts book specifies 03965-P Gauge - 195 PSI for this model group.
Does the Amerex 423 have an aluminum or a brass valve?
Brass. The valve body is chrome-plated brass with a stainless steel handle and lever. Amerex classes this valve as heavy duty.
