Division 10 44 00

JL Lifestart AED Cabinets

10 products

Lifestart 1400 series AED cabinets with alarm, on/off switch and AED graphics, for any brand of AED.

Read the series notes
Construction
Steel, aluminum or stainless steel; alarm and AED graphics included
Tub sizes
14″ × 14″ × 6-3/4″
Mounting
Recessed, semi-recessed, surface
Fire-rated walls
Fire-FX2 option, up to 2 hours
Model Mounting and trim Tub Wall depth Fire-FX2 ADA 4" Stock From
14x3 JL Industries 14x3F12 Lifestart Surface-Mounted AED Cabinet with Alarm, Surface Mount Square Trim · Surface Mount Square trim 14″ x 14″ x 6-3/4″ — No No JL stock $340.95 Configure →
14x3FX2 JL Industries 14x3F12FX2 Lifestart Fire-Rated (Fire-FX2) Surface-Mounted AED Cabinet with Alarm, Surface Mount Square Trim · Surface Mount Square trim 14″ x 14″ x 6-3/4″ — Yes No Built to order $454.95 Configure →

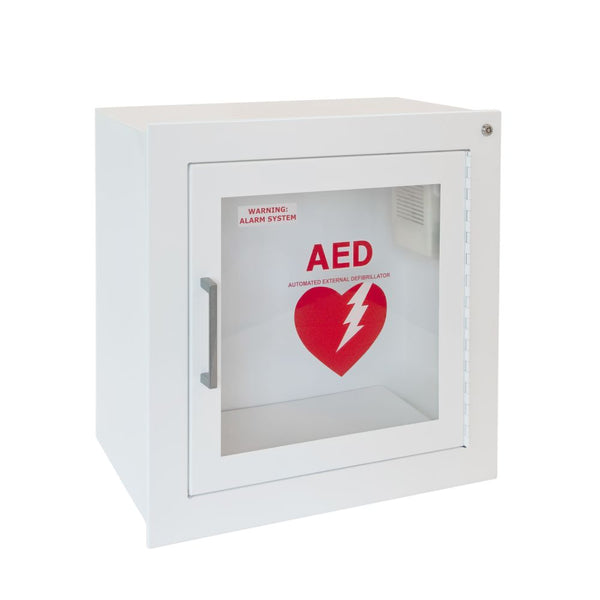

14x5 Recessed · 3/8" Flat Trim trim 14″ x 14″ x 6-3/4″ — No No JL stock $302.95 Configure →
14x5FX2 Recessed · 3/8" Flat Trim trim 14″ x 14″ x 6-3/4″ — Yes No Built to order $416.95 Configure →
14x6 JL Industries 14x6F12 Lifestart Semi-Recessed AED Cabinet with Alarm, 1 1/2" Square Trim · 1 1/2" Square trim 14″ x 14″ x 6-3/4″ — No No Built to order $331.95 Configure →
14x6FX2 JL Industries 14x6F12FX2 Lifestart Fire-Rated (Fire-FX2) Semi-Recessed AED Cabinet with Alarm, 1 1/2" Square Trim · 1 1/2" Square trim 14″ x 14″ x 6-3/4″ — Yes No Built to order $445.95 Configure →
14x7 JL Industries 14x7F12 Lifestart Semi-Recessed AED Cabinet with Alarm, 3" Rolled Trim · 3" Rolled trim 14″ x 14″ x 6-3/4″ — No No JL stock $341.95 Configure →
14x7FX2 JL Industries 14x7F12FX2 Lifestart Fire-Rated (Fire-FX2) Semi-Recessed AED Cabinet with Alarm, 3" Rolled Trim · 3" Rolled trim 14″ x 14″ x 6-3/4″ — Yes No Built to order $455.95 Configure →
14x9 JL Industries 14x9F12 Lifestart Semi-Recessed AED Cabinet with Alarm, Surface Mount Square Trim · Surface Mount Square trim 14″ x 14″ x 6-3/4″ — No No Built to order $587.95 View →
14x9FX2 JL Industries 14x9F12FX2 Lifestart Fire-Rated (Fire-FX2) Semi-Recessed AED Cabinet with Alarm, Surface Mount Square Trim · Surface Mount Square trim 14″ x 14″ x 6-3/4″ — Yes No Built to order $701.95 View →
FSP · C-03

Series notes

Lifestart 1400 series AED cabinets with alarm, on/off switch and AED graphics, for any brand of AED.

FSP · C-04

Selection schedule

Start from the wall, not the catalog.

MarkIf the wall isSpecifyLifestart AED modelsNote
ADeep enough to bury the tub, clean flat face wantedFully recessed, 3/8″ flat trimTrim 5: 14x5F12Within the ADA 4″ projection limit
BToo shallow for the full tubSemi-recessed, square or rolled edgeTrim 6, 7, 9: 14x6F12, 14x7F12, 14x9F12Trim 9 projects past the ADA 4″ limit
CBlock or concrete, no cutout possibleSurface mountTrim 3: 14x3F12Check the ADA path of travel
DA fire-rated partitionFire-FX2 version of the same modelAdd FX2: 14x5F12FX2, 14x6F12FX2Rated up to 2 hours
FSP · C-05

General notes

Note 1

What is the difference between semi-recessed and surface mount?

A semi-recessed cabinet sets the tub into the wall and leaves only the trim projecting, in 1-1/4″, 1-1/2″, 2-1/4″, 2-1/2″, 3″, 4″ or 4-1/2″ depths. A surface mount cabinet hangs entirely on the wall face, so nothing is cut into the wall, but the whole cabinet depth projects into the space. Only the recessed and semi-recessed trims through 4″ meet the ADA 4″ projection requirement; surface mount models do not. For surface mount cabinets, add 3-3/16″ to the width and height measurements.

Note 2

Do I need a fire-rated cabinet?

You need one when the cabinet is recessed into a wall that carries a fire rating, because the opening is a membrane penetration in that assembly. The Fire-FX2 option is UL tested to maintain one and two-hour fire rated wall barriers in accordance with ANSI/UL-1479 (ASTM E814 and ULC.CAN S115) for membrane penetration firestops. Ordering it changes the rough opening to the bracketed dimensions in the series table, and knockouts are not available on fire-rated cabinets. Confirm the wall rating with the architect or the authority having jurisdiction.

Note 3

How high can the cabinet be mounted and still be ADA compliant?

According to the ADA, the cabinet handle cannot be mounted higher than 48″ above the finished floor for applications which allow only a forward approach in a wheelchair. Separately, objects projecting from walls with leading edges between 27″ and 80″ above the finished floor must protrude no more than 4″ into walkways. These are national standards subject to change by local authorities having jurisdiction. Note that installing a Saf-T-Lok raises the pull handle 3-5/8″ on the door, except for the ADA recessed pull, which sits to the right of the lock.
