20 products
Cavalier series: decorative bronze (US10) and polished brass (US3) cabinets for lobbies and finished architectural spaces.
No wall cutout
No wall cutout
No wall cutout
No wall cutout
| Model | Mounting and trim | Tub | Wall depth | Fire-FX2 | ADA 4" | Stock | From | Link |
|---|---|---|---|---|---|---|---|---|
| 1043 | Surface-mounted | 10-1/2″ x 24″ x 6″ | None (surface) | No | No | Built to order | $2,071.95 | Configure → |
| 1045 | Recessed · Flat Trim trim | 10-1/2″ x 24″ x 6″ | 5-7/8″ | No | Yes | Built to order | $1,314.95 | Configure → |
| 1046 | Semi-recessed · 1 1/2" Square trim | 10-1/2″ x 24″ x 6″ | 4-5/8″ | No | Yes | Built to order | $1,437.95 | Configure → |

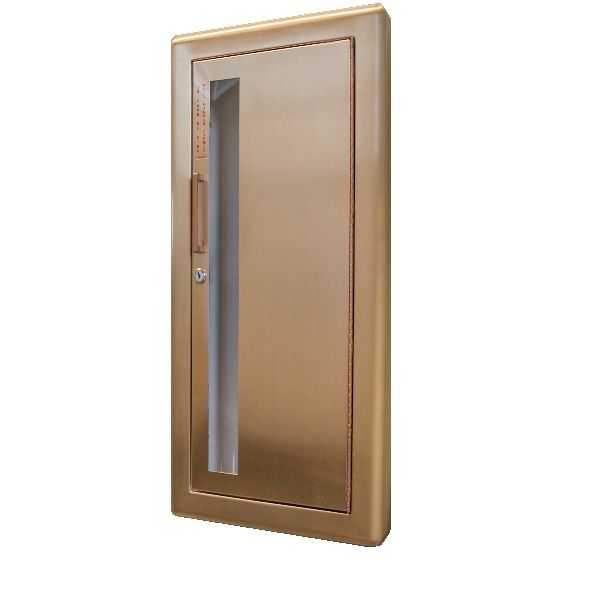

| 1047 | Semi-recessed · 3" Rolled trim | 10-1/2″ x 24″ x 6″ | 3-1/8″ | No | Yes | Built to order | $2,049.95 | Configure → |
| 1053 | Surface-mounted | 10-1/2″ x 24″ x 6″ | None (surface) | No | No | Built to order | $2,071.95 | Configure → |
| 1055 | Recessed · Flat Trim trim | 10-1/2″ x 24″ x 6″ | 5-7/8″ | No | Yes | Built to order | $1,314.95 | Configure → |
| 1056 | Semi-recessed · 1 1/2" Square trim | 10-1/2″ x 24″ x 6″ | 4-5/8″ | No | Yes | Built to order | $1,437.95 | Configure → |
| 1057 | Semi-recessed · 3" Rolled trim | 10-1/2″ x 24″ x 6″ | 3-1/8″ | No | Yes | Built to order | $2,049.95 | Configure → |
| 1845 | Recessed · Flat Trim trim | 10-1/2″ x 24″ x 5-1/2″ | 5-5/8″ | No | Yes | Built to order | $1,283.95 | Configure → |
| 1846 | Semi-recessed · 1 1/2" Square trim | 10-1/2″ x 24″ x 5-1/2″ | 4-1/8″ | No | Yes | Built to order | $1,408.95 | Configure → |
| 1847 | Semi-recessed · 3" Rolled trim | 10-1/2″ x 24″ x 5-1/2″ | 2-5/8″ | No | Yes | Built to order | $2,018.95 | Configure → |
| 1855 | Recessed · Flat Trim trim | 10-1/2″ x 24″ x 5-1/2″ | 5-5/8″ | No | Yes | Built to order | $1,283.95 | Configure → |
| 1856 | Semi-recessed · 1 1/2" Square trim | 10-1/2″ x 24″ x 5-1/2″ | 4-1/8″ | No | Yes | Built to order | $1,408.95 | Configure → |
| 1857 | Semi-recessed · 3" Rolled trim | 10-1/2″ x 24″ x 5-1/2″ | 2-5/8″ | No | Yes | Built to order | $2,018.95 | Configure → |
| 2043 | Surface-mounted | 12″ x 27″ x 7-3/4″ | None (surface) | No | No | Built to order | $2,224.95 | Configure → |
| 2045 | Recessed · Flat Trim trim | 12″ x 27″ x 7-3/4″ | 7-7/8″ | No | Yes | Built to order | $1,496.95 | Configure → |
| 2046 | Semi-recessed · 1 1/4" Square trim | 12″ x 27″ x 7-3/4″ | 6-5/8″ | No | Yes | Built to order | $1,550.95 | Configure → |
| 2053 | Surface-mounted | 12″ x 27″ x 7-3/4″ | None (surface) | No | No | Built to order | $2,224.95 | Configure → |
| 2055 | Recessed · Flat Trim trim | 12″ x 27″ x 7-3/4″ | 7-7/8″ | No | Yes | Built to order | $1,496.95 | Configure → |
| 2056 | Semi-recessed · 1 1/4" Square trim | 12″ x 27″ x 7-3/4″ | 6-5/8″ | No | Yes | Built to order | $1,550.95 | Configure → |
Cavalier series: decorative bronze (US10) and polished brass (US3) cabinets for lobbies and finished architectural spaces.
Start from the wall, not the catalog.
| Mark | If the wall is | Specify | Cavalier models | Note |
|---|---|---|---|---|
| A | Deep enough to bury the tub, clean flat face wanted | Fully recessed, 3/8″ flat trim | Trim 5: 1845, 1855 | Within the ADA 4″ projection limit |
| B | Too shallow for the full tub | Semi-recessed, square or rolled edge | Trim 6, 7: 1846, 1856, 1847, 1857 | Within the ADA 4″ projection limit |
| C | Block or concrete, no cutout possible | Surface mount | Trim 3: 1043, 1053 | Check the ADA path of travel |
A semi-recessed cabinet sets the tub into the wall and leaves only the trim projecting, in 1-1/4″, 1-1/2″, 2-1/4″, 2-1/2″, 3″, 4″ or 4-1/2″ depths. A surface mount cabinet hangs entirely on the wall face, so nothing is cut into the wall, but the whole cabinet depth projects into the space. Only the recessed and semi-recessed trims through 4″ meet the ADA 4″ projection requirement; surface mount models do not. For surface mount cabinets, add 3-3/16″ to the width and height measurements.
According to the ADA, the cabinet handle cannot be mounted higher than 48″ above the finished floor for applications which allow only a forward approach in a wheelchair. Separately, objects projecting from walls with leading edges between 27″ and 80″ above the finished floor must protrude no more than 4″ into walkways. These are national standards subject to change by local authorities having jurisdiction. Note that installing a Saf-T-Lok raises the pull handle 3-5/8″ on the door, except for the ADA recessed pull, which sits to the right of the lock.
The tub is the box that holds the extinguisher, hose rack or valve, and its inside dimensions are given as A (width), B (height) and C (depth). The trim is the frame around the door that covers the cut edge of the wall, and its projection determines how far the cabinet sticks into the room. The two are ordered by separate digits in the model number: the first digits are the tub size and the fourth digit is the trim projection. On most cabinets the tub is white powder coated cold rolled steel even when the trim and door are aluminum, stainless, bronze or brass.
