Ambassador series: cold rolled steel cabinets with a white powder-coat finish, in every trim style from surface mount to trimless, for 2.5 lb to 20 lb extinguishers and dual-extinguisher tubs.
1-5/8″ wall
1-1/8″ wall
No wall cutout
3-3/8″ wall
No wall cutout
3-3/8″ wall
| Model | Mounting and trim | Tub | Wall depth | Fire-FX2 | ADA 4" | Stock | From | Link |
|---|---|---|---|---|---|---|---|---|
| 1012 | Semi-recessed · 4" Rolled-Flush Pull trim | 10-1/2″ x 24″ x 6″ | 2-3/8″ | No | Yes | Built to order | $256.95 | Configure → |
| 1012FX2 | Semi-recessed · 4" Rolled-Flush Pull trim | 10-1/2″ x 24″ x 6″ | 3-3/8″ | Yes | Yes | Built to order | $394.95 | Configure → |

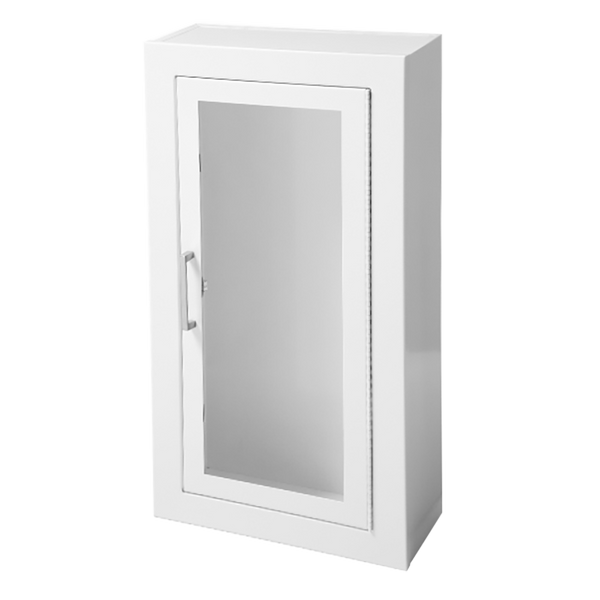

| 1013 | Surface-mounted | 10-1/2″ x 24″ x 6″ | None (surface) | No | No | JL stock | $144.95 | Configure → |
| 1014 | Trimless recessed | 10-1/2″ x 24″ x 6″ | 6-1/8″ | No | Yes | Built to order | $187.95 | Configure → |
| 1014FX2 | Trimless recessed | 10-1/2″ x 24″ x 6″ | 6-11/16″ | Yes | Yes | Built to order | $324.95 | Configure → |
| 1015 | Recessed · Flat Trim trim | 10-1/2″ x 24″ x 6″ | 5-7/8″ | No | Yes | JL stock | $122.95 | Configure → |
| 1015FX2 | Recessed · Flat Trim trim | 10-1/2″ x 24″ x 6″ | 6-15/16″ | Yes | Yes | JL stock | $237.95 | Configure → |
| 1016 | Semi-recessed · 1 1/2" Square trim | 10-1/2″ x 24″ x 6″ | 4-5/8″ | No | Yes | JL stock | $128.95 | Configure → |
| 1016FX2 | Semi-recessed · 1 1/2" Square trim | 10-1/2″ x 24″ x 6″ | 5-11/16″ | Yes | Yes | JL stock | $243.95 | Configure → |
| 1017 | Semi-recessed · 3" Rolled trim | 10-1/2″ x 24″ x 6″ | 3-1/8″ | No | Yes | JL stock | $142.95 | Configure → |
| 1017FX2 | Semi-recessed · 3" Rolled trim | 10-1/2″ x 24″ x 6″ | 4″ | Yes | Yes | JL stock | $257.95 | Configure → |
| 1018 | Semi-recessed · 4 1/2" Rolled trim | 10-1/2″ x 24″ x 6″ | 1-5/8″ | No | No | Built to order | $226.95 | Configure → |
| 1018FX2 | Semi-recessed · 4 1/2" Rolled trim | 10-1/2″ x 24″ x 6″ | 2-11/16″ | Yes | No | Built to order | $363.95 | Configure → |
| 1812 | Semi-recessed · 4" Rolled-Flush Pull trim | 10-1/2″ x 24″ x 5-1/2″ | 1-7/8″ | No | Yes | Built to order | $256.95 | Configure → |
| 1812FX2 | Semi-recessed · 4" Rolled-Flush Pull trim | 10-1/2″ x 24″ x 5-1/2″ | 2-7/8″ | Yes | Yes | Built to order | $394.95 | Configure → |
| 1815 | Recessed · Flat Trim trim | 10-1/2″ x 24″ x 5-1/2″ | 5-5/8″ | No | Yes | Built to order | $144.95 | Configure → |
| 1815FX2 | Recessed · Flat Trim trim | 10-1/2″ x 24″ x 5-1/2″ | 6-7/16″ | Yes | Yes | Built to order | $282.95 | Configure → |
| 1816 | Semi-recessed · 1 1/2" Square trim | 10-1/2″ x 24″ x 5-1/2″ | 4-1/8″ | No | Yes | JL stock | $128.95 | Configure → |
| 1816FX2 | Semi-recessed · 1 1/2" Square trim | 10-1/2″ x 24″ x 5-1/2″ | 5-3/16″ | Yes | Yes | Built to order | $289.95 | Configure → |
| 1817 | Semi-recessed · 3" Rolled trim | 10-1/2″ x 24″ x 5-1/2″ | 2-5/8″ | No | Yes | Built to order | $168.95 | Configure → |
| 1817FX2 | Semi-recessed · 3" Rolled trim | 10-1/2″ x 24″ x 5-1/2″ | 3-11/16″ | Yes | Yes | Built to order | $305.95 | Configure → |
| 1818 | Semi-recessed · 4 1/2" Rolled trim | 10-1/2″ x 24″ x 5-1/2″ | 1-1/8″ | No | No | Built to order | $226.95 | Configure → |
| 1818FX2 | Semi-recessed · 4 1/2" Rolled trim | 10-1/2″ x 24″ x 5-1/2″ | 2-3/16″ | Yes | No | Built to order | $363.95 | Configure → |
| 2012 | Semi-recessed · 4" Rolled-Flush Pull trim | 12″ x 27″ x 7-3/4″ | 4-1/8″ | No | Yes | Built to order | $331.95 | Configure → |
| 2012FX2 | Semi-recessed · 4" Rolled-Flush Pull trim | 12″ x 27″ x 7-3/4″ | 5-1/8″ | Yes | Yes | Built to order | $517.95 | Configure → |
| 2013 | Surface-mounted | 12″ x 27″ x 7-3/4″ | None (surface) | No | No | Built to order | $259.95 | Configure → |
| 2014 | Trimless recessed | 12″ x 27″ x 7-3/4″ | 7-7/8″ | No | Yes | Built to order | $249.95 | Configure → |
| 2014FX2 | Trimless recessed | 12″ x 27″ x 7-3/4″ | 8-7/16″ | Yes | Yes | Built to order | $436.95 | Configure → |
| 2015 | Recessed · Flat Trim trim | 12″ x 27″ x 7-3/4″ | 7-5/8″ | No | Yes | Built to order | $207.95 | Configure → |
| 2015FX2 | Recessed · Flat Trim trim | 12″ x 27″ x 7-3/4″ | 8-11/16″ | Yes | Yes | Built to order | $394.95 | Configure → |
| 2016 | Semi-recessed · 1 1/2" Square trim | 12″ x 27″ x 7-3/4″ | 6-5/8″ | No | Yes | Built to order | $227.95 | Configure → |
| 2016FX2 | Semi-recessed · 1 1/2" Square trim | 12″ x 27″ x 7-3/4″ | 7-11/16″ | Yes | Yes | Built to order | $413.95 | Configure → |
| 2017 | Semi-recessed · 2 1/2" Rolled trim | 12″ x 27″ x 7-3/4″ | 5-3/8″ | No | Yes | JL stock | $222.95 | Configure → |
| 2017FX2 | Semi-recessed · 2 1/2" Rolled trim | 12″ x 27″ x 7-3/4″ | 6-7/16″ | Yes | Yes | Built to order | $450.95 | Configure → |
| 2018 | Semi-recessed · 4 1/2" Rolled trim | 12″ x 27″ x 7-3/4″ | 3-3/8″ | No | No | Built to order | $293.95 | Configure → |
| 2018FX2 | Semi-recessed · 4 1/2" Rolled trim | 12″ x 27″ x 7-3/4″ | 4-7/16″ | Yes | No | Built to order | $479.95 | Configure → |
| 3012 | Semi-recessed · 4" Rolled-Flush Pull trim | 16″ x 32″ x 7-3/4″ | 4-1/8″ | No | Yes | Built to order | $447.95 | Configure → |
| 3012FX2 | Semi-recessed · 4" Rolled-Flush Pull trim | 16″ x 32″ x 7-3/4″ | 5-1/8″ | Yes | Yes | Built to order | $744.95 | Configure → |
| 3013 | Surface-mounted | 16″ x 32″ x 7-3/4″ | None (surface) | No | No | Built to order | $375.95 | Configure → |
| 3015 | Recessed · Flat Trim trim | 16″ x 32″ x 7-3/4″ | 7-5/8″ | No | Yes | Built to order | $341.95 | Configure → |
| 3015FX2 | Recessed · Flat Trim trim | 16″ x 32″ x 7-3/4″ | 8-11/16″ | Yes | Yes | Built to order | $638.95 | Configure → |
| 3016 | Semi-recessed · 1 1/2" Square trim | 16″ x 32″ x 7-3/4″ | 6-5/8″ | No | Yes | Built to order | $357.95 | Configure → |
| 3016FX2 | Semi-recessed · 1 1/2" Square trim | 16″ x 32″ x 7-3/4″ | 7-11/16″ | Yes | Yes | Built to order | $653.95 | Configure → |
| 3017 | Semi-recessed · 2 1/2" Rolled trim | 16″ x 32″ x 7-3/4″ | 5-3/8″ | No | Yes | Built to order | $385.95 | Configure → |
| 3017FX2 | Semi-recessed · 2 1/2" Rolled trim | 16″ x 32″ x 7-3/4″ | 6-7/16″ | Yes | Yes | Built to order | $682.95 | Configure → |
| 3018 | Semi-recessed · 4 1/2" Rolled trim | 16″ x 32″ x 7-3/4″ | 3-3/8″ | No | No | Built to order | $410.95 | Configure → |
| 3018FX2 | Semi-recessed · 4 1/2" Rolled trim | 16″ x 32″ x 7-3/4″ | 4-7/16″ | Yes | No | Built to order | $707.95 | Configure → |
| 4012 | Semi-recessed · 4" Rolled-Flush Pull trim | 20″ x 27″ x 7-3/4″ | 4-1/8″ | No | Yes | Built to order | $480.95 | Configure → |
Ambassador series: cold rolled steel cabinets with a white powder-coat finish, in every trim style from surface mount to trimless, for 2.5 lb to 20 lb extinguishers and dual-extinguisher tubs.
Start from the wall, not the catalog.
| Mark | If the wall is | Specify | Ambassador models | Note |
|---|---|---|---|---|
| A | Deep enough to bury the tub, clean flat face wanted | Fully recessed, 3/8″ flat trim | Trim 5: 8115, 1015, 1815, 2015 | Within the ADA 4″ projection limit |
| B | 5/8″ drywall or 3/4″ plaster finished to the door | Trimless recessed flange | Trim 4: 8114, 1014, 2014 | No visible trim on the wall face |
| C | Too shallow for the full tub | Semi-recessed, square or rolled edge | Trim 6, 7, 2 or 8: 8116, 8117, 1012, 8118 | The 4-1/2″ rolled edge (trim 8) projects past the ADA 4″ limit |
| D | Block or concrete, no cutout possible | Surface mount, square edge | Trim 3: 8113, 1013, 2013 | Check the ADA path of travel |
| E | A fire-rated partition | Fire-FX2 version of the same model | Add FX2: 8117FX2, 1017FX2 | Rated up to 2 hours |
Match the tub to the extinguisher. The 9″ × 18″ × 5-1/2″ tub takes JL Cosmic 2.5 lb to 6 lb, Galaxy 2.5 lb to 5.5 lb and Mercury 2.5 lb to 5 lb; larger Ambassador tubs run up to 20″ × 27″ × 7-3/4″ for two extinguishers. Every product page lists what fits.
Objects mounted between 27″ and 80″ above the floor may project no more than 4″ into a circulation path. Cabinets that comply carry the ADA 4″ mark on this page.
When the cabinet is recessed into a fire-rated wall. Fire-FX2 cabinets are tested to ASTM E814 and UL 1479 and are available for ratings up to 2 hours.
