- Model
- 20895
- UL rating
- 1A:20B:C
- Ship weight
- 19.5 lb
- H × W × D
- 20.5″ × 8.75″ × 5.0″

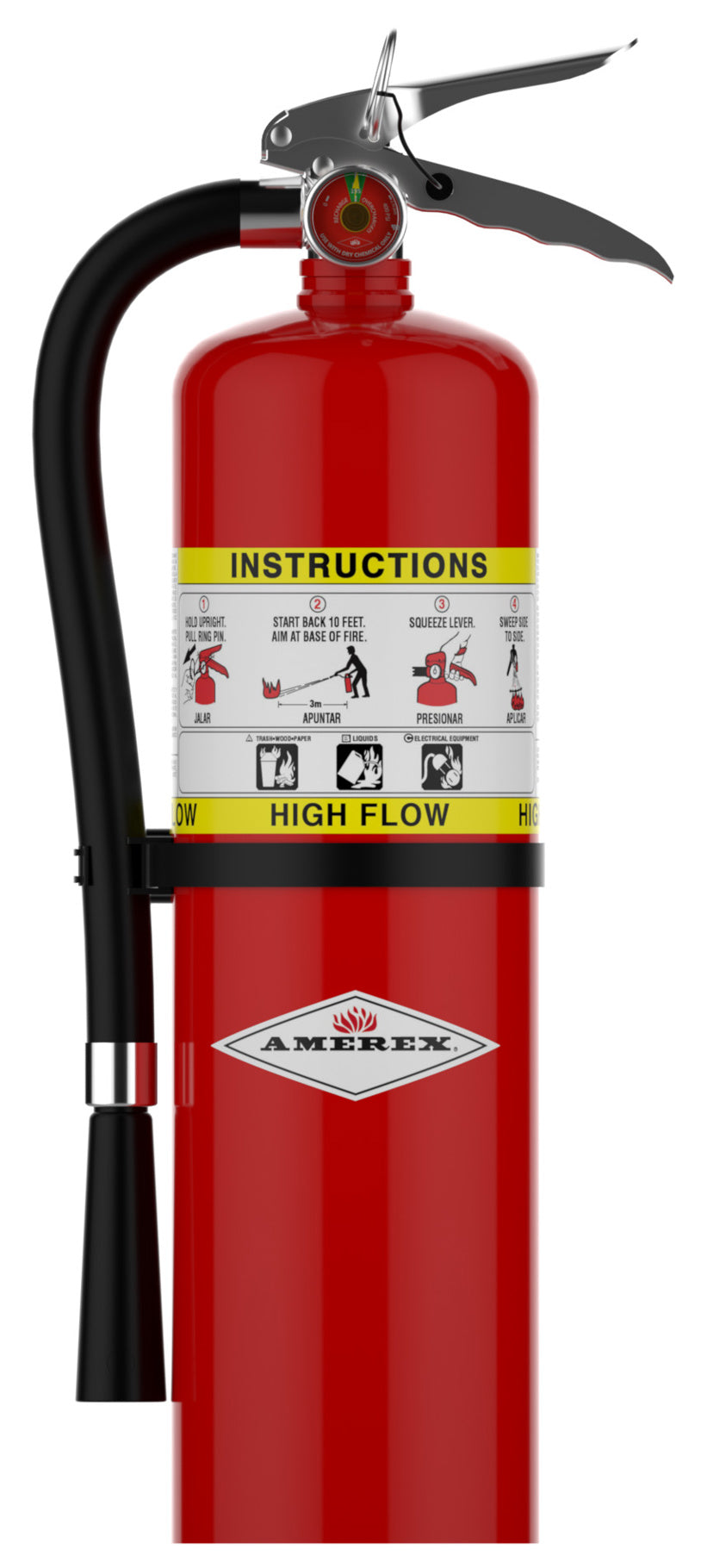

Amerex 720 10 lb ABC Dry Chemical Fire Extinguisher - High Flow
FSP · P-02
What it is
Amerex 720 is a 10 lb ABC dry chemical fire extinguisher rated 1A:20B:C for ordinary combustibles, flammable liquids and gases, and live electrical equipment. Discharge runs 10 seconds with an initial range of 15 to 25 ft at 195 PSIG. The agent is a specially fluidized and siliconized mono ammonium phosphate that melts and coats the burning surface, insulating Class A fuel and breaking the chain reaction on Class B fires. The cylinder is drawn-steel with a chrome-plated brass valve body, stainless steel handle and lever. A wall bracket ships with the extinguisher. The operating temperature range is −65°F to 120°F.
Some hazards demand agent on the fire faster than a standard extinguisher can deliver. The Amerex 720 is a high-flow 10 lb ABC unit built for exactly those applications, the ones NFPA 10 identifies as requiring discharge rates exceeding one pound per second. It averages 1.22 lb per second, twice the flow rate of standard models, emptying in roughly 10 seconds with a 15 to 25 foot reach. Hardware and UL specifications match Amerex's compliance-rated products: a dependable drawn steel cylinder, all-metal valve construction around a heavy-duty chrome-plated brass valve body, a stainless steel handle and lever, and a large loop stainless steel pull pin. Rated 1A:20B:C, UL Listed and NFPA 10 compliant.
- High-flow design: 1.22 lb/sec average discharge rate, twice the flow of standard models
- 10 second discharge time with a 15-25 ft discharge range
- Heavy-duty brass valve, chrome plated body with stainless steel handle and lever
- Large loop stainless steel pull pin; QR coded and multilingual labels
- Rated for -65F to 120F service and backed by a 6-year manufacturer's warranty
Specifications
| Model | 720 |
|---|---|
| Item / Part No. | 20895 |
| UL Rating | 1A:20B:C |
| Capacity | 10 lb ABC dry chemical |
| Shipping Weight | 19.5 lb (includes box) |
| Dimensions (H x W x D) | 20.5 in x 8.75 in x 5 in |
| Discharge Time | 10 sec |
| Average Discharge Rate | 1.22 lb/sec |
| Discharge Range | 15-25 ft |
| Nominal Operating Pressure | 195 PSIG |
| Temperature Range | -65F to 120F |
| Design | Stored pressure, hose and nozzle |
| Warranty | 6-year manufacturer's warranty |
FSP · P-03
Submittal data
The same values print on the submittal sheet.
| Ratings and agent | |
|---|---|
| UL and ULC rating | 1A:20B:C |
| Capacity | 10 lb |
| Agent | ABC dry chemical |
| Agent chemical base | Mono ammonium phosphate, specially fluidized and siliconized |
| Discharge design | Hose & Nozzle |
| Discharge | |
|---|---|
| Initial range | 15 to 25 ft |
| Discharge time | 10 seconds |
| Nominal operating pressure | 195 PSIG |
| Construction | |
|---|---|
| Cylinder material | Drawn-steel |
| Finish | High-gloss polyester powder paint |
| Valve construction | All-metal |
| Valve material | Chrome-plated brass valve body / Stainless steel handle & lever |
| Operating temperature range | −65°F to 120°F |
| Dimensions and weight | |
|---|---|
| Height | 20 1/2 in |
| Width | 8 3/4 in |
| Depth | 5 in |
| Cylinder diameter | 5 in |
| Shipping weight | 19.5 lb |
| Mounting and standards | |
|---|---|
| Included bracket | Wall |
| Optional brackets | 808, 809, 889HB, 895, 846 |
| Tested to | CAN/ULC-S504 - UL 299 & CAN/ULC-S508 - UL 711 |
| Warranty | 6-Year manufacturer's warranty |
| Item | |
|---|---|
| Amerex item number | 20895 |
FSP · P-04
Documents
FSP · P-05
General notes
What is the UL rating of the Amerex 720?
1A:20B:C.
How many pounds of dry chemical is in the Amerex 720?
10 lb of ABC dry chemical - a specially fluidized and siliconized mono ammonium phosphate.
How long does the Amerex 720 discharge for?
10 seconds.
What is the discharge rate of the Amerex 720?
1.22 lb per second. Amerex classes the 720 and 760 as HIGH-FLOW, 'for applications where discharge rates exceeding one pound per second are required as specified in NFPA 10'.
How far does the Amerex 720 spray?
Discharge range 15-25 ft.
What are the dimensions of the Amerex 720?
Height 20 1/2 in., width 8 3/4 in., depth 5 in., on a 5 in. diameter cylinder.
How much does the Amerex 720 weigh?
19.5 lb shipping weight. Amerex notes that shipping weight includes the box.
What pressure does the Amerex 720 operate at?
195 PSIG nominal operating pressure. The parts book specifies 03965-P Gauge - 195 PSI for this model group.
Does the Amerex 720 have an aluminum or a brass valve?
Brass. The valve body is chrome-plated brass with a stainless steel handle and lever. Amerex classes this valve as heavy duty.
