- Model
- 20901
- UL rating
- 4A:60B:C
- Ship weight
- 38.0 lb
- H × W × D
- 24.0″ × 10.25″ × 7.0″

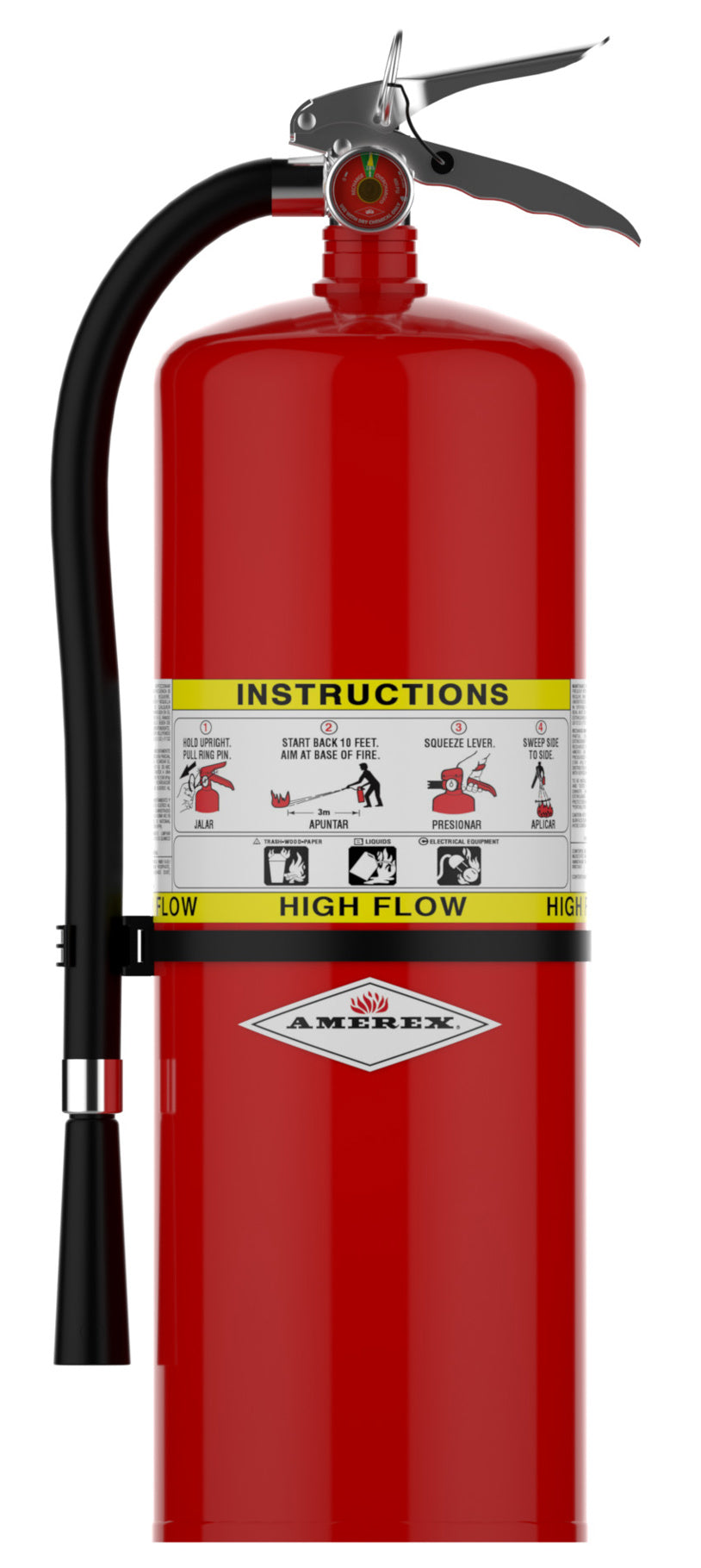

Amerex 760 20 lb ABC Dry Chemical Fire Extinguisher - High Flow
FSP · P-02
What it is
Amerex 760 is a 20 lb ABC dry chemical fire extinguisher rated 4A:60B:C for ordinary combustibles, flammable liquids and gases, and live electrical equipment. Discharge runs 19 seconds with an initial range of 15 to 25 ft at 195 PSIG. The agent is a specially fluidized and siliconized mono ammonium phosphate that melts and coats the burning surface, insulating Class A fuel and breaking the chain reaction on Class B fires. The cylinder is drawn-steel with a chrome-plated brass valve body, stainless steel handle and lever. A wall bracket ships with the extinguisher. The operating temperature range is −65°F to 120°F.
When a high-hazard process needs both volume and speed, the Amerex 760 pairs a 20 lb ABC dry chemical charge with a high-flow design, the kind NFPA 10 calls for wherever discharge rates above one pound per second are required. It moves agent at twice the rate of a standard model, and its 4A:60B:C rating means one extinguisher answers ordinary combustibles, flammable liquids and energized electrical equipment. Underneath, the build follows standard Amerex portable practice: a drawn steel cylinder, an all-metal valve assembly and a high gloss polyester powder paint finish meant to survive industrial service. Its valve body is heavy duty chrome plated brass; the handle and lever are stainless steel. Labels are printed bilingually.
- Moves agent at twice the flow rate of a standard model for high-flow applications
- 20 lb ABC dry chemical charge, UL rated 4A:60B:C
- Brass valve: heavy duty chrome plated body, stainless steel handle and lever
- Drawn steel cylinder finished in high gloss polyester powder paint
- Bilingual labels for mixed-language work sites
Specifications
| Model | 760 |
|---|---|
| Item / Part No. | 20901 |
| UL Rating | 4A:60B:C |
| Capacity | 20 lb |
| Shipping Weight | 38 lb |
| Dimensions (H x W x D) | 25.13 in x 7.5 in x 7.5 in |
| Valve | Chrome plated brass body, stainless steel handle and lever |
FSP · P-03
Submittal data
The same values print on the submittal sheet.
| Ratings and agent | |
|---|---|
| UL and ULC rating | 4A:60B:C |
| Capacity | 20 lb |
| Agent | ABC dry chemical |
| Agent chemical base | Mono ammonium phosphate, specially fluidized and siliconized |
| Discharge design | Hose & Nozzle |
| Discharge | |
|---|---|
| Initial range | 15 to 25 ft |
| Discharge time | 19 seconds |
| Nominal operating pressure | 195 PSIG |
| Construction | |
|---|---|
| Cylinder material | Drawn-steel |
| Finish | High-gloss polyester powder paint |
| Valve construction | All-metal |
| Valve material | Chrome-plated brass valve body / Stainless steel handle & lever |
| Operating temperature range | −65°F to 120°F |
| Dimensions and weight | |
|---|---|
| Height | 24 in |
| Width | 10 1/4 in |
| Depth | 7 in |
| Cylinder diameter | 7 in |
| Shipping weight | 38 lb |
| Mounting and standards | |
|---|---|
| Included bracket | Wall |
| Optional brackets | 810 |
| Tested to | CAN/ULC-S504 - UL 299 & CAN/ULC-S508 - UL 711 |
| Warranty | 6-Year manufacturer's warranty |
| Item | |
|---|---|
| Amerex item number | 20901 |
FSP · P-04
Documents
FSP · P-05
General notes
What is the UL rating of the Amerex 760?
4A:60B:C.
How many pounds of dry chemical is in the Amerex 760?
20 lb of ABC dry chemical - a specially fluidized and siliconized mono ammonium phosphate.
How long does the Amerex 760 discharge for?
19 seconds.
What is the discharge rate of the Amerex 760?
1.14 lb per second. Amerex classes the 720 and 760 as HIGH-FLOW, 'for applications where discharge rates exceeding one pound per second are required as specified in NFPA 10'.
How far does the Amerex 760 spray?
Discharge range 15-25 ft.
What are the dimensions of the Amerex 760?
Height 24 in., width 10 1/4 in., depth 7 in., on a 7 in. diameter cylinder.
How much does the Amerex 760 weigh?
38 lb shipping weight. Amerex notes that shipping weight includes the box.
What pressure does the Amerex 760 operate at?
195 PSIG nominal operating pressure. The parts book specifies 03965-P Gauge - 195 PSI for this model group.
Does the Amerex 760 have an aluminum or a brass valve?
Brass. The valve body is chrome-plated brass with a stainless steel handle and lever. Amerex classes this valve as heavy duty.
