- Model
- 23849
- UL rating
- 3A:40B:C
- Ship weight
- 10.0 lb
- H × W × D
- 15.25″ × 7.25″ × 4.25″

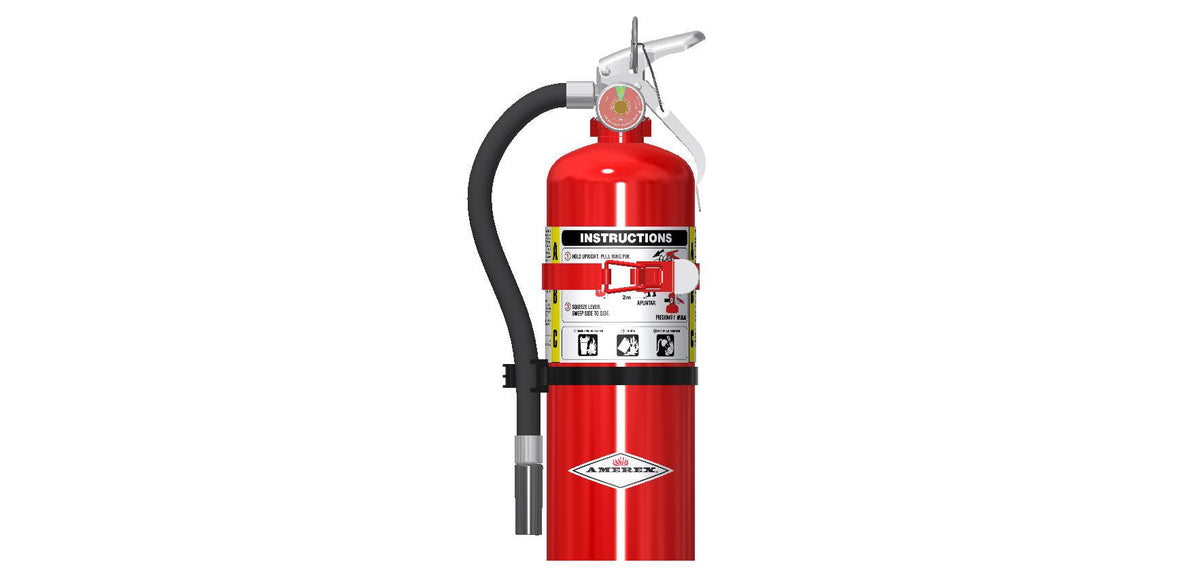

Amerex B402T 5 lb ABC Dry Chemical Fire Extinguisher with Vehicle Bracket, Modified Valve
FSP · P-02
What it is
Amerex B402T is a 5 lb ABC dry chemical fire extinguisher rated 3A:40B:C for ordinary combustibles, flammable liquids and gases, and live electrical equipment. Discharge runs 14 seconds with an initial range of 12 to 18 ft at 195 PSIG. The agent is a specially fluidized and siliconized mono ammonium phosphate that melts and coats the burning surface, insulating Class A fuel and breaking the chain reaction on Class B fires. The cylinder is drawn-steel with an anodized aluminum valve body, anodized aluminum handle and lever. A wall and vehicle bracket ships with the extinguisher. The operating temperature range is −65°F to 120°F.
Built to the same UL listing as the standard B402T, this modified-valve production variant delivers identical 3A:40B:C protection from 5 lb of specially fluidized and siliconized mono ammonium phosphate dry chemical. The agent chemically insulates Class A fires by melting at approximately 350°F to coat the burning surface, smothers Class B fires by breaking the chain reaction, and will not conduct electricity back to the operator. An included vehicle bracket readies it for truck and equipment mounting, and every unit is made in the U.S.A.
- Stored-pressure design with hose and nozzle, all-metal valve construction, and drawn steel cylinder
- 14-second discharge time with a 12-18 ft initial range
- Operates from -65°F to 120°F at a nominal 195 PSIG
- Complies with NFPA 10; manufactured and tested to ANSI/UL standards in an ISO-9001 certified facility
- Large loop pull pin, bar-coded bilingual labels, and a 6-year manufacturer's warranty
Specifications
| Model | B402T (Modified Valve) |
|---|---|
| Item / Part No. | 23849 |
| UL Rating | 3A:40B:C |
| Capacity | 5 lb |
| Shipping Weight | 10 lb |
| Dimensions (H × W × D) | 15.25 × 7.25 × 4.25 in |
| Discharge Time | 14 seconds |
| Discharge Range (initial) | 12-18 ft |
| Operating Pressure | 195 PSIG |
| Temperature Range | -65°F to 120°F |
| Warranty | 6 years |
FSP · P-03
Submittal data
The same values print on the submittal sheet.
| Ratings and agent | |
|---|---|
| UL and ULC rating | 3A:40B:C |
| Capacity | 5 lb |
| Agent | ABC dry chemical |
| Agent chemical base | Mono ammonium phosphate, specially fluidized and siliconized |
| Discharge design | Hose & Nozzle |
| Discharge | |
|---|---|
| Discharge time | 14 seconds |
| Initial range | 12 to 18 ft |
| Nominal operating pressure | 195 PSIG |
| Construction | |
|---|---|
| Cylinder material | Drawn-steel |
| Finish | High-gloss polyester powder paint |
| Valve construction | All-metal |
| Valve material | Anodized aluminum valve body / Anodized aluminum handle & lever |
| Operating temperature range | −65°F to 120°F |
| Dimensions and weight | |
|---|---|
| Height | 15.25 in |
| Width | 7.25 in |
| Depth | 4.25 in |
| Cylinder diameter | 4.25 in |
| Shipping weight | 9.25 lb (catalog) / 9.5 lb (price list) |
| Mounting and standards | |
|---|---|
| Included bracket | Wall and vehicle bracket |
| Optional brackets | 818S, 821, 821S, 807 |
| Tested to | CAN/ULC-S504 - UL 299 & CAN/ULC-S508 - UL 711 |
| Warranty | 6-Year manufacturer's warranty |
| Item | |
|---|---|
| Amerex item number | 23849 |
FSP · P-04
Documents
FSP · P-05
General notes
What is the UL rating of the Amerex B402T?
3A:40B:C.
How many pounds of dry chemical is in the Amerex B402T?
5 lb of ABC dry chemical - a specially fluidized and siliconized mono ammonium phosphate.
How long does the Amerex B402T discharge for?
14 seconds.
Is there a chrome version of the Amerex B402T?
Yes. The catalog marks OPTIONAL CHROME CYLINDER = Yes for this model.
How far does the Amerex B402T spray?
Initial range 12-18 ft.
What are the dimensions of the Amerex B402T?
Height 15.25 in., width 7.25 in., depth 4.25 in., on a 4.25 in. diameter cylinder.
How much does the Amerex B402T weigh?
9.25/9.5 lb shipping weight. Amerex notes that shipping weight includes the box.
What pressure does the Amerex B402T operate at?
195 PSIG nominal operating pressure. The parts book specifies 03103-P Gauge - 195 PSI for this model group.
Does the Amerex B402T have an aluminum or a brass valve?
Aluminum. The valve body, handle and lever are anodized aluminum. Amerex classes this valve as light to medium duty.
