- Model
- 15281
- UL rating
- 3A:40B:C
- Ship weight
- 10.0 lb
- H × W × D
- 15.25″ × 7.25″ × 4.25″

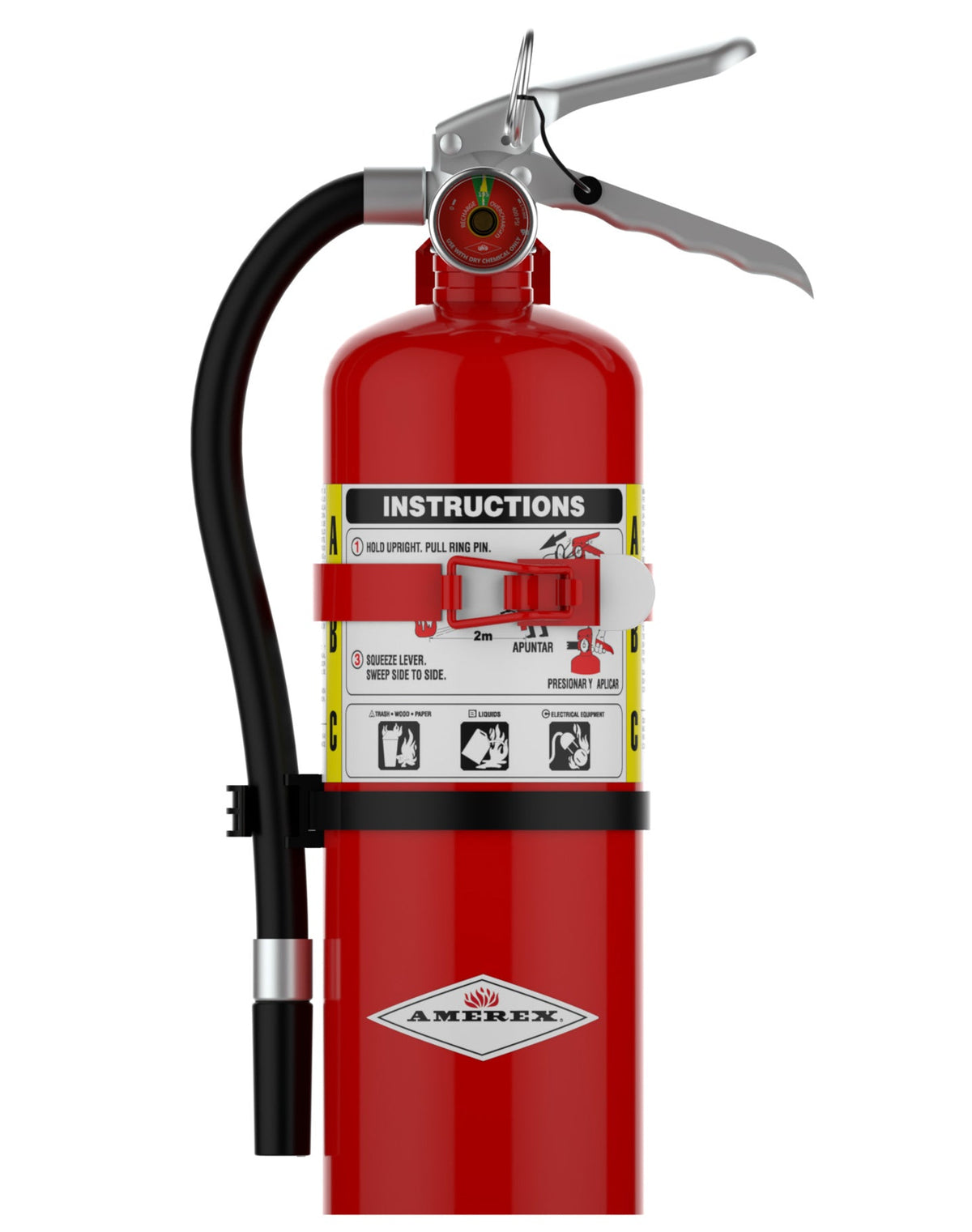

Amerex B402T 5 lb ABC Dry Chemical Fire Extinguisher with Vehicle Bracket
FSP · P-02
What it is
Amerex B402T is a 5 lb ABC dry chemical fire extinguisher rated 3A:40B:C for ordinary combustibles, flammable liquids and gases, and live electrical equipment. Discharge runs 14 seconds with an initial range of 12 to 18 ft at 195 PSIG. The agent is a specially fluidized and siliconized mono ammonium phosphate that melts and coats the burning surface, insulating Class A fuel and breaking the chain reaction on Class B fires. The cylinder is drawn-steel with an anodized aluminum valve body, anodized aluminum handle and lever. A wall and vehicle bracket ships with the extinguisher. The operating temperature range is −65°F to 120°F.
Work trucks, delivery vans, and service fleets get dependable protection from the Amerex B402T, which pairs the proven 5 lb B402 platform with an included vehicle bracket. Its UL rating of 3A:40B:C covers wood, paper, fabric, and plastic fires (Class A), flammable liquids such as gasoline, oils, paints, and tar (Class B), and live electrical equipment (Class C).
- Vehicle bracket included for secure mobile mounting
- Rechargeable and easy and economical to maintain and service
- Easy-to-read pressure gauge for at-a-glance readiness checks
- Illustrated P.A.S.S. (pull, aim, spray, sweep) directions on the label
- Ideal for hospitals, restaurants, offices, and light industrial settings; 6-year warranty
Specifications
| Model | B402T |
|---|---|
| Item / Part No. | 15281 |
| UL Rating | 3A:40B:C |
| Capacity | 5 lb |
| Shipping Weight | 10 lb |
| Boxed Dimensions (H × W × D) | 16.25 × 4.4 × 6.88 in |
FSP · P-03
Submittal data
The same values print on the submittal sheet.
| Ratings and agent | |
|---|---|
| UL and ULC rating | 3A:40B:C |
| Capacity | 5 lb |
| Agent | ABC dry chemical |
| Agent chemical base | Mono ammonium phosphate, specially fluidized and siliconized |
| Discharge design | Hose & Nozzle |
| Discharge | |
|---|---|
| Discharge time | 14 seconds |
| Initial range | 12 to 18 ft |
| Nominal operating pressure | 195 PSIG |
| Construction | |
|---|---|
| Cylinder material | Drawn-steel |
| Finish | High-gloss polyester powder paint |
| Valve construction | All-metal |
| Valve material | Anodized aluminum valve body / Anodized aluminum handle & lever |
| Operating temperature range | −65°F to 120°F |
| Dimensions and weight | |
|---|---|
| Height | 15.25 in |
| Width | 7.25 in |
| Depth | 4.25 in |
| Cylinder diameter | 4.25 in |
| Shipping weight | 9.25 lb (catalog) / 9.5 lb (price list) |
| Mounting and standards | |
|---|---|
| Included bracket | Wall and vehicle bracket |
| Optional brackets | 818S, 821, 821S, 807 |
| Tested to | CAN/ULC-S504 - UL 299 & CAN/ULC-S508 - UL 711 |
| Warranty | 6-Year manufacturer's warranty |
| Item | |
|---|---|
| Amerex item number | 15281 |
FSP · P-04
Documents
FSP · P-05
General notes
What is the UL rating of the Amerex B402T?
3A:40B:C.
How many pounds of dry chemical is in the Amerex B402T?
5 lb of ABC dry chemical - a specially fluidized and siliconized mono ammonium phosphate.
How long does the Amerex B402T discharge for?
14 seconds.
Is there a chrome version of the Amerex B402T?
Yes. The catalog marks OPTIONAL CHROME CYLINDER = Yes for this model.
How far does the Amerex B402T spray?
Initial range 12-18 ft.
What are the dimensions of the Amerex B402T?
Height 15.25 in., width 7.25 in., depth 4.25 in., on a 4.25 in. diameter cylinder.
How much does the Amerex B402T weigh?
9.25/9.5 lb shipping weight. Amerex notes that shipping weight includes the box.
What pressure does the Amerex B402T operate at?
195 PSIG nominal operating pressure. The parts book specifies 03103-P Gauge - 195 PSI for this model group.
Does the Amerex B402T have an aluminum or a brass valve?
Aluminum. The valve body, handle and lever are anodized aluminum. Amerex classes this valve as light to medium duty.
FSP · P-06
Shipping and returns
Shipping & returns
Cabinets and extinguishers ship by ground within the contiguous United States. Rates are shown at checkout before you pay. Multi-unit orders for a project schedule can be quoted directly.
