- Model
- 15217
- UL rating
- 1A:10B:C
- Ship weight
- 6.0 lb
- H × W × D
- 15.25″ × 5.5″ × 3.0″

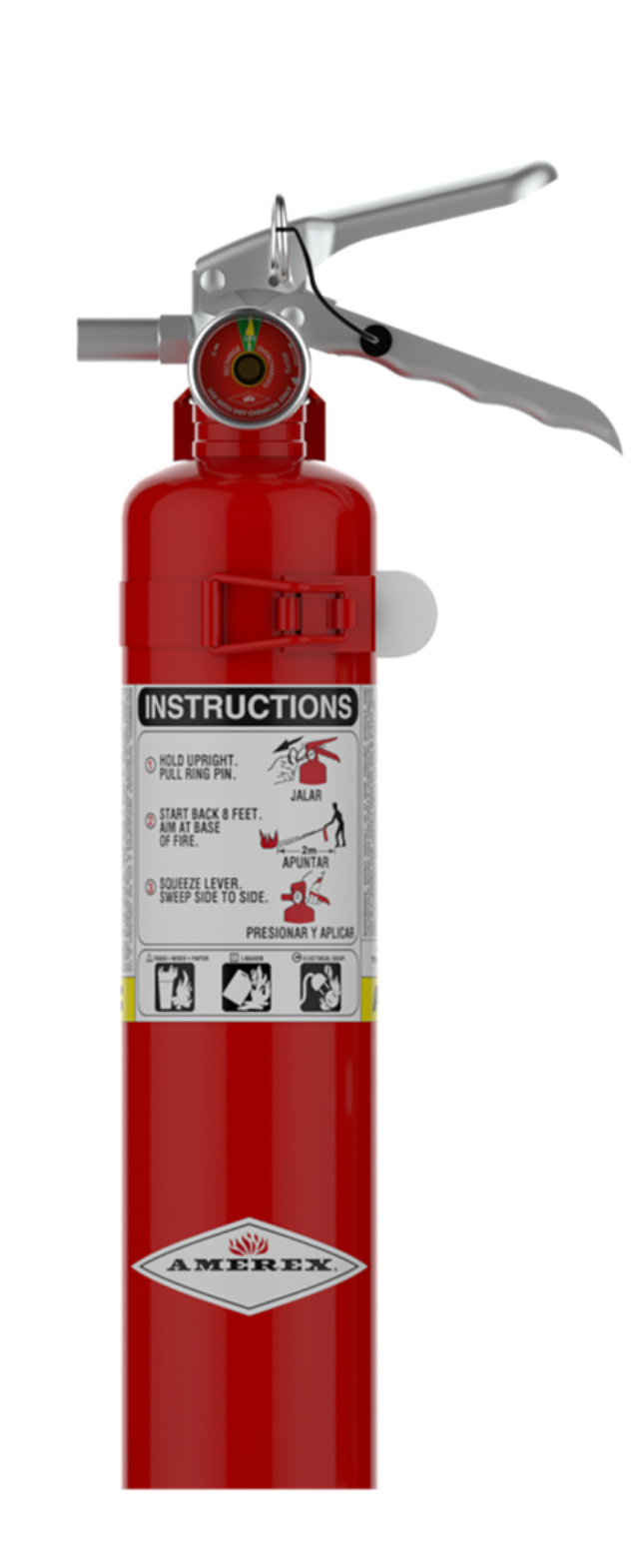

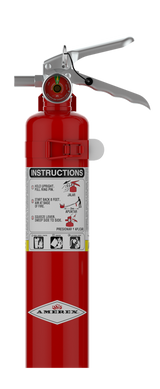

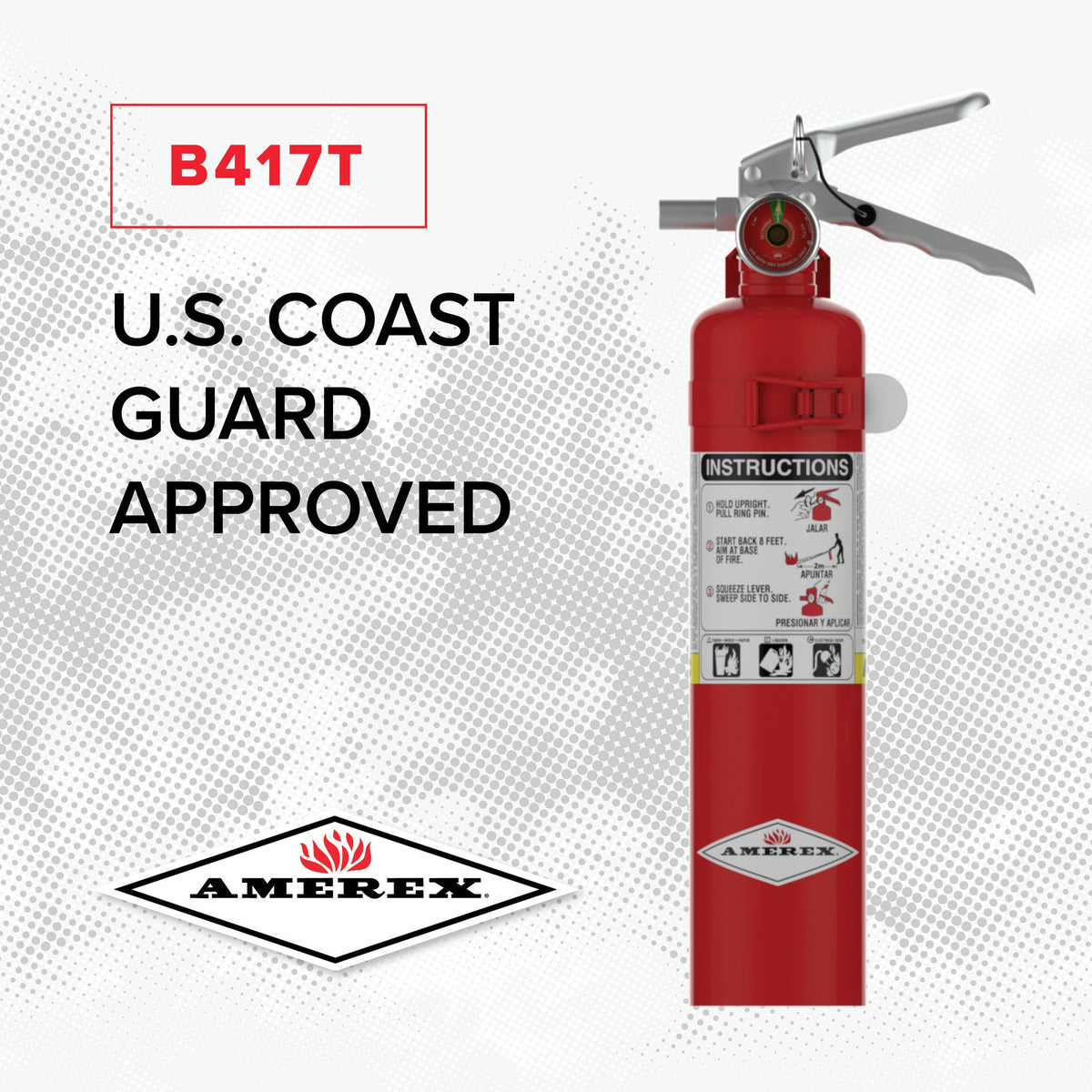

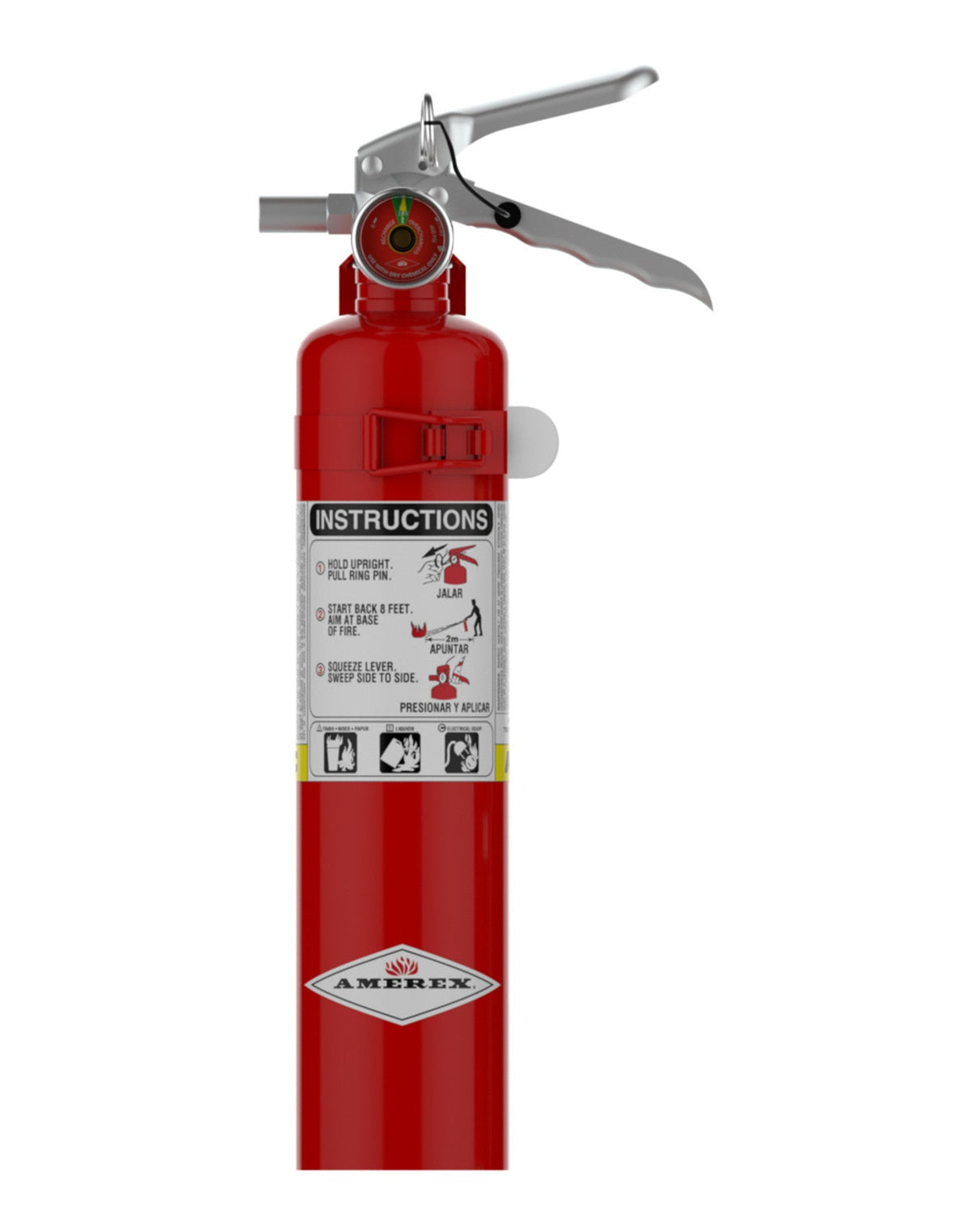

Amerex B417T 2.5 lb ABC Dry Chemical Fire Extinguisher with Vehicle Bracket
FSP · P-02
What it is
Amerex B417T is a 2.5 lb ABC dry chemical fire extinguisher rated 1A:10B:C for ordinary combustibles, flammable liquids and gases, and live electrical equipment. Discharge runs 9 seconds with an initial range of 9 to 15 ft at 195 PSIG. The agent is a specially fluidized and siliconized mono ammonium phosphate that melts and coats the burning surface, insulating Class A fuel and breaking the chain reaction on Class B fires. The cylinder is drawn-steel with an anodized aluminum valve body, anodized aluminum handle and lever. A vehicle bracket ships with the extinguisher. The operating temperature range is −65°F to 120°F.

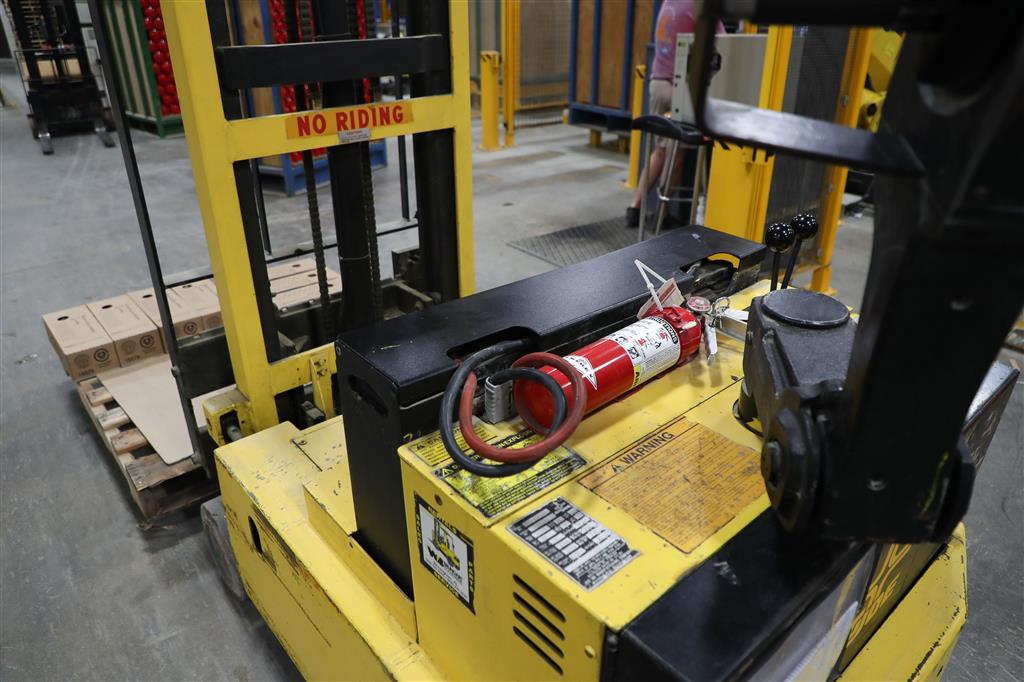

Small enough to tuck beside a seat yet rated for real fires, the Amerex B417T puts 2.5 lb of ABC dry chemical wherever space is tight. It carries a UL rating of 1A:10B:C, chemically insulating Class A fires by melting at approximately 350°F to coat the burning surface and smothering Class B fires by breaking the chain reaction—without conducting electricity back to the operator. The included vehicle bracket holds it fast in cars, trucks, and equipment cabs.
- Compact 2.5 lb capacity with a 5.5 lb shipping weight

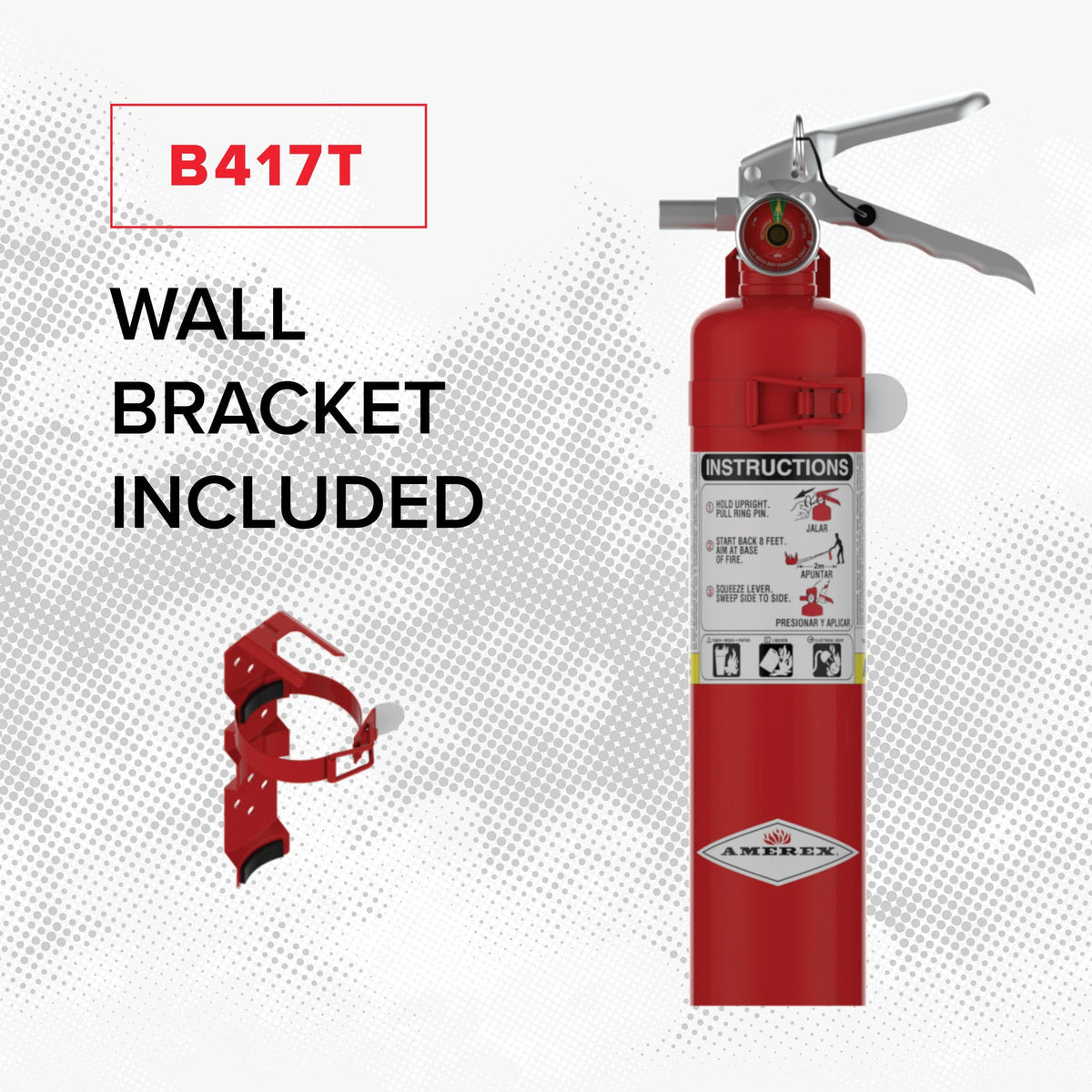

- Vehicle bracket included
- Anodized aluminum valve body, handle, and lever
- Durable high-gloss polyester powder paint over all-metal valve construction
- Bilingual labels; made in the U.S.A.
Specifications
| Model | B417T |
|---|---|
| Item / Part No. | 15217 |
| UL Rating | 1A:10B:C |
| Capacity | 2.5 lb |
| Shipping Weight | 5.5 lb |

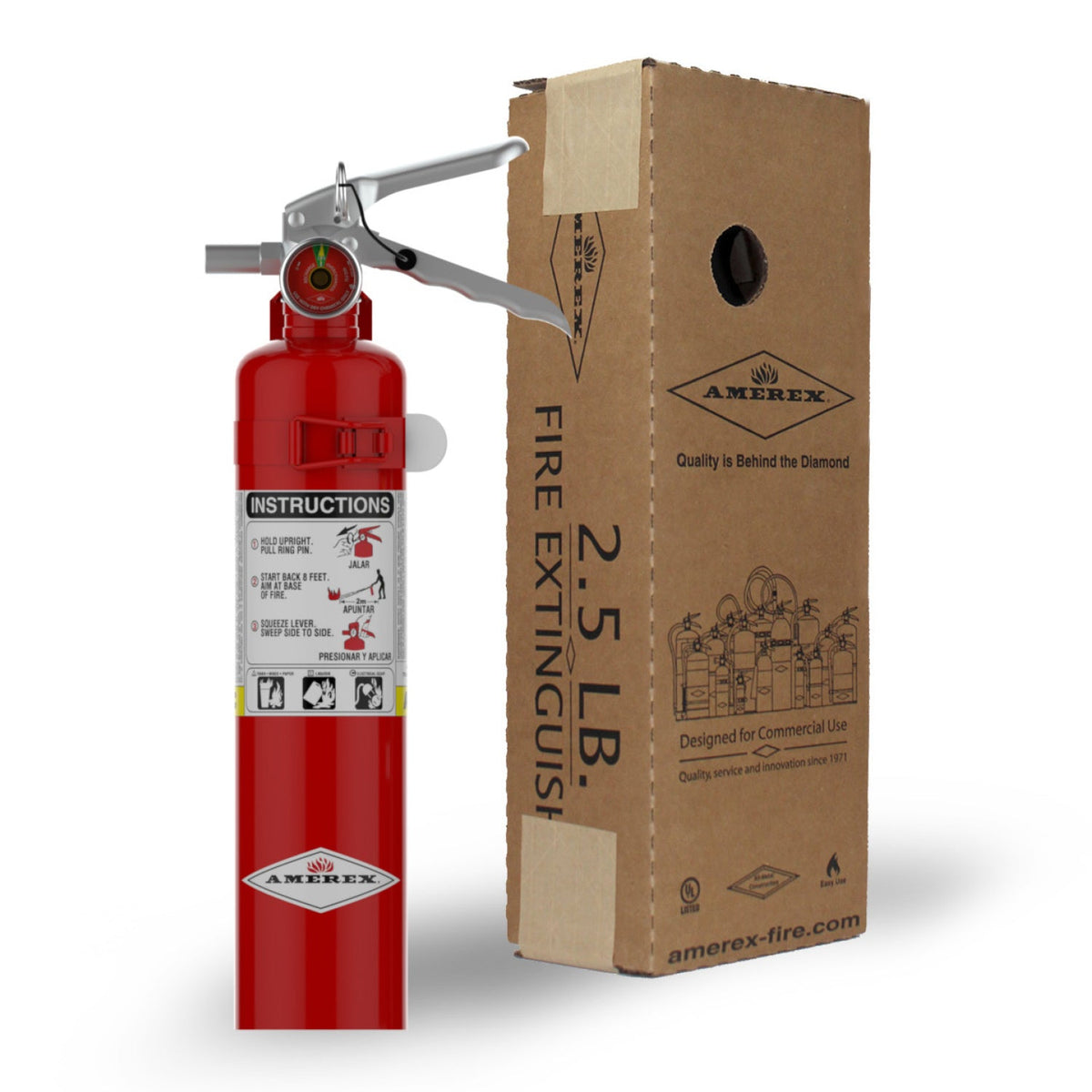

| Boxed Dimensions (H × W × D) | 16.13 × 3.88 × 5.63 in |
FSP · P-03
Submittal data
The same values print on the submittal sheet.
| Ratings and agent | |
|---|---|
| UL and ULC rating | 1A:10B:C |
| Capacity | 2.5 lb |
| Agent | ABC dry chemical |
| Agent chemical base | Mono ammonium phosphate, specially fluidized and siliconized |
| Discharge design | Nozzle |
| Discharge | |
|---|---|
| Discharge time | 9 seconds |
| Initial range | 9 to 15 ft |
| Nominal operating pressure | 195 PSIG |
| Construction | |
|---|---|

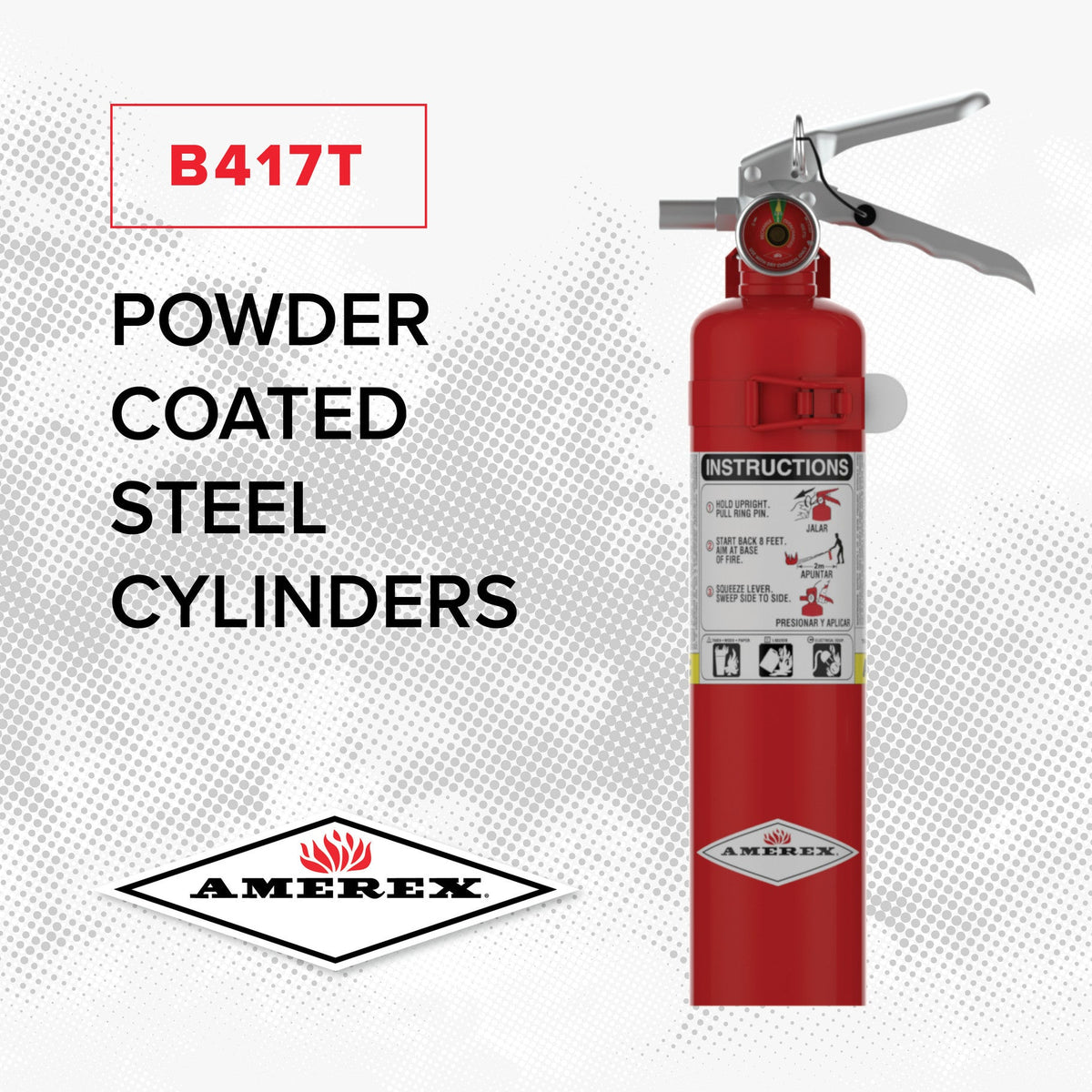

| Cylinder material | Drawn-steel |
| Finish | High-gloss polyester powder paint |

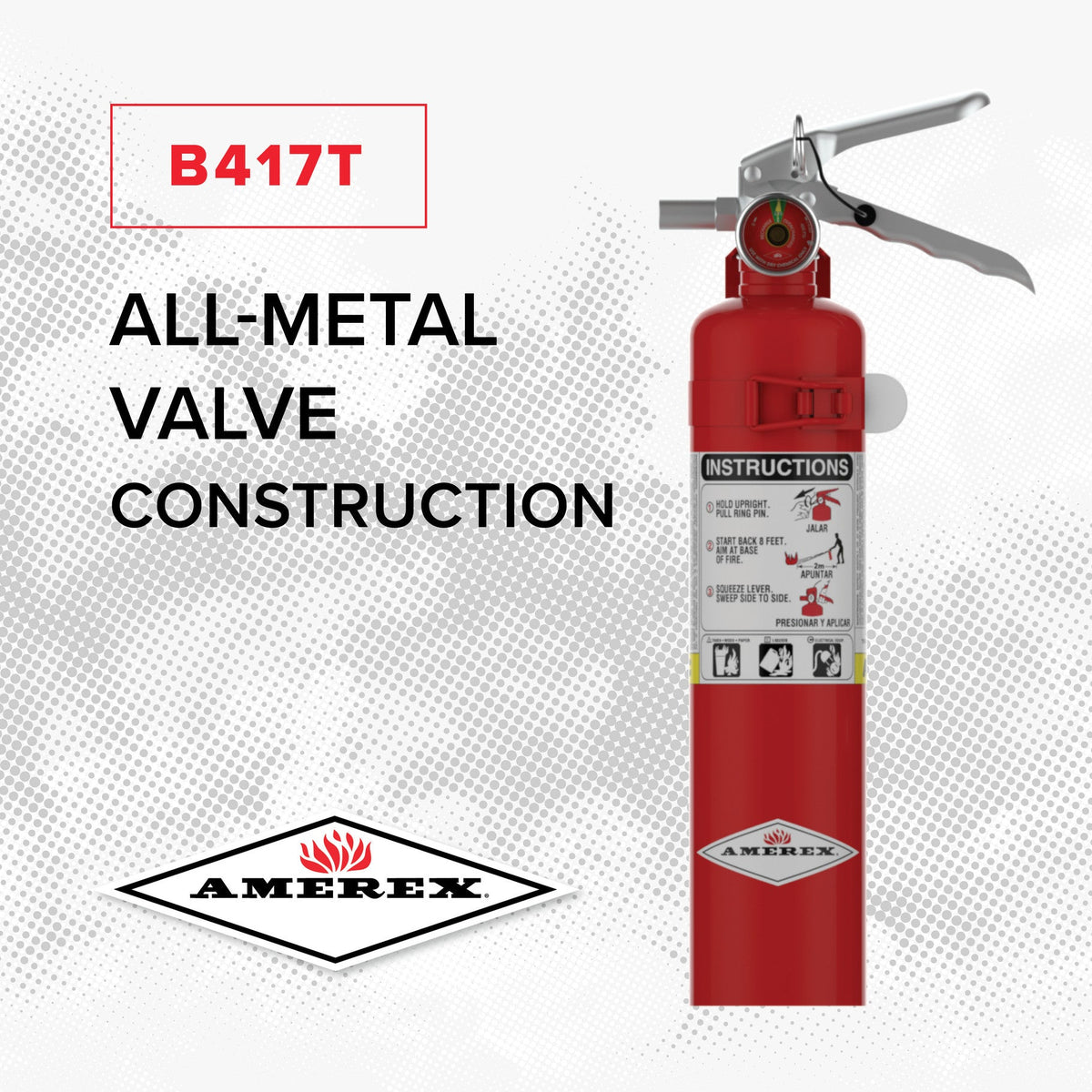

| Valve construction | All-metal |
| Valve material | Anodized aluminum valve body / Anodized aluminum handle & lever |
| Operating temperature range | −65°F to 120°F |
| Dimensions and weight | |
|---|---|
| Height | 15.25 in |
| Width | 5.5 in |
| Depth | 3 in |
| Cylinder diameter | 3 in |
| Shipping weight | 5.5 lb |
| Mounting and standards | |
|---|---|
| Included bracket | Vehicle |
| Optional brackets | 817S |
| Tested to | CAN/ULC-S504 - UL 299 & CAN/ULC-S508 - UL 711 |
| Warranty | 6-Year manufacturer's warranty |
| Item | |
|---|---|
| Amerex item number | 15217 |
FSP · P-04
Documents
FSP · P-05
General notes
What is the UL rating of the Amerex B417T?
1A:10B:C.
How many pounds of dry chemical is in the Amerex B417T?
2.5 lb of ABC dry chemical - a specially fluidized and siliconized mono ammonium phosphate.
How long does the Amerex B417T discharge for?
9 seconds.
Is there a chrome version of the Amerex B417T?
Yes. The catalog marks OPTIONAL CHROME CYLINDER = Yes for this model.
How far does the Amerex B417T spray?
Initial range 9-15 ft.
What are the dimensions of the Amerex B417T?
Height 15.25 in., width 5.5 in., depth 3 in., on a 3 in. diameter cylinder.
How much does the Amerex B417T weigh?
5.5 lb shipping weight. Amerex notes that shipping weight includes the box.
What pressure does the Amerex B417T operate at?
195 PSIG nominal operating pressure. The parts book specifies 03103-P Gauge - 195 PSI for this model group.
Does the Amerex B417T have an aluminum or a brass valve?
Aluminum. The valve body, handle and lever are anodized aluminum. Amerex classes this valve as light to medium duty.
