- Model
- 15254
- UL rating
- 1A:10B:C
- Ship weight
- 5.5 lb
- H × W × D
- 15.25″ × 5.5″ × 3.0″

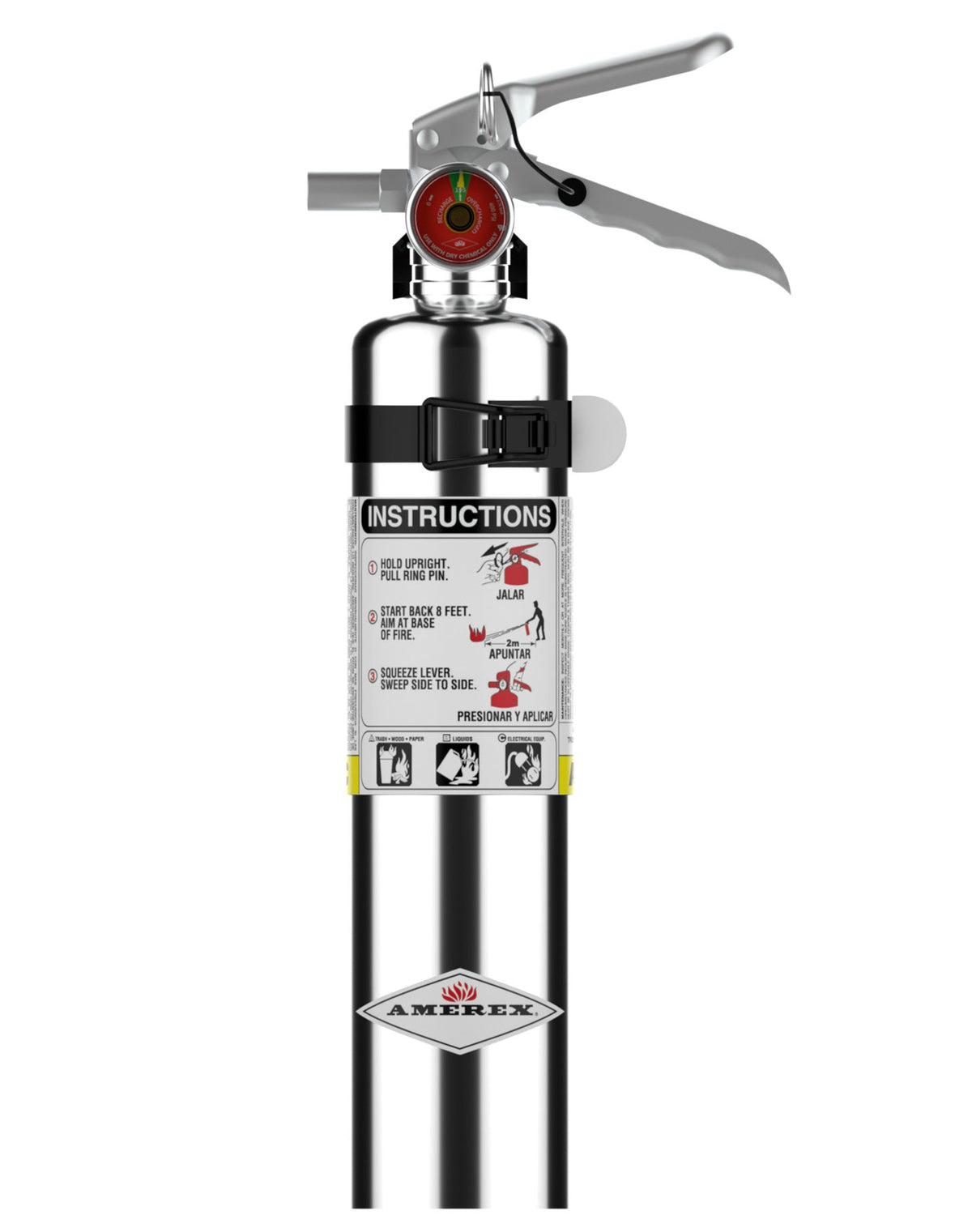

Amerex B417TC 2.5 lb ABC Dry Chemical Fire Extinguisher, Chrome with Vehicle Bracket
FSP · P-02
What it is
Amerex B417TC is a 2.5 lb ABC dry chemical fire extinguisher rated 1A:10B:C for ordinary combustibles, flammable liquids and gases, and live electrical equipment. Discharge runs 9 seconds with an initial range of 9 to 15 ft at 195 PSIG. The agent is a specially fluidized and siliconized mono ammonium phosphate that melts and coats the burning surface, insulating Class A fuel and breaking the chain reaction on Class B fires. The cylinder is drawn-steel with an anodized aluminum valve body, anodized aluminum handle and lever. A vehicle bracket ships with the extinguisher. The operating temperature range is −65°F to 120°F.
Chrome cylinders give the Amerex B417TC a finish worthy of a show car while keeping genuine fire protection within reach. UL rated 1A:10B:C, this 2.5 lb ABC unit chemically insulates Class A fires by melting at approximately 350°F to coat the surface it touches, and it smothers Class B fires by breaking the chain reaction—without conducting electricity back to the operator. A vehicle bracket comes in the box, ready for mounting.
- Chrome cylinder with high-gloss finish and all-metal valve construction
- Vehicle bracket included
- Light- to medium-duty anodized aluminum valve body, handle, and lever
- Compact 2.5 lb size for cars, trucks, and equipment cabs
- Bilingual labels
Specifications
| Model | B417TC |
|---|---|
| Item / Part No. | 15254 |
| UL Rating | 1A:10B:C |
| Capacity | 2.5 lb |
| Shipping Weight | 5.5 lb |
| Boxed Dimensions (H × W × D) | 16.13 × 3.88 × 5.63 in |
FSP · P-03
Submittal data
The same values print on the submittal sheet.
| Ratings and agent | |
|---|---|
| UL and ULC rating | 1A:10B:C |
| Capacity | 2.5 lb |
| Agent | ABC dry chemical |
| Agent chemical base | Mono ammonium phosphate, specially fluidized and siliconized |
| Discharge design | Nozzle |
| Discharge | |
|---|---|
| Discharge time | 9 seconds |
| Initial range | 9 to 15 ft |
| Nominal operating pressure | 195 PSIG |
| Construction | |
|---|---|
| Cylinder material | Drawn-steel |
| Finish | High-gloss polyester powder paint |
| Valve construction | All-metal |
| Valve material | Anodized aluminum valve body / Anodized aluminum handle & lever |
| Operating temperature range | −65°F to 120°F |
| Dimensions and weight | |
|---|---|
| Height | 15.25 in |
| Width | 5.5 in |
| Depth | 3 in |
| Cylinder diameter | 3 in |
| Shipping weight | 5.5 lb |
| Mounting and standards | |
|---|---|
| Included bracket | Vehicle |
| Optional brackets | 817S |
| Tested to | CAN/ULC-S504 - UL 299 & CAN/ULC-S508 - UL 711 |
| Warranty | 6-Year manufacturer's warranty |
| Item | |
|---|---|
| Amerex item number | 15254 |
FSP · P-04
Documents
FSP · P-05
General notes
What is the UL rating of the Amerex B417TC?
1A:10B:C.
How many pounds of dry chemical is in the Amerex B417TC?
2.5 lb of ABC dry chemical - a specially fluidized and siliconized mono ammonium phosphate.
How long does the Amerex B417TC discharge for?
9 seconds.
Is there a chrome version of the Amerex B417TC?
Yes. The catalog marks OPTIONAL CHROME CYLINDER = Yes for this model.
How far does the Amerex B417TC spray?
Initial range 9-15 ft.
What are the dimensions of the Amerex B417TC?
Height 15.25 in., width 5.5 in., depth 3 in., on a 3 in. diameter cylinder.
How much does the Amerex B417TC weigh?
5.5 lb shipping weight. Amerex notes that shipping weight includes the box.
What pressure does the Amerex B417TC operate at?
195 PSIG nominal operating pressure. The parts book specifies 03103-P Gauge - 195 PSI for this model group.
Does the Amerex B417TC have an aluminum or a brass valve?
Aluminum. The valve body, handle and lever are anodized aluminum. Amerex classes this valve as light to medium duty.
