- Model
- 15949
- UL rating
- 1A:10B:C
- Ship weight
- 5.5 lb
- H × W × D
- 15.25″ × 5.5″ × 3.0″

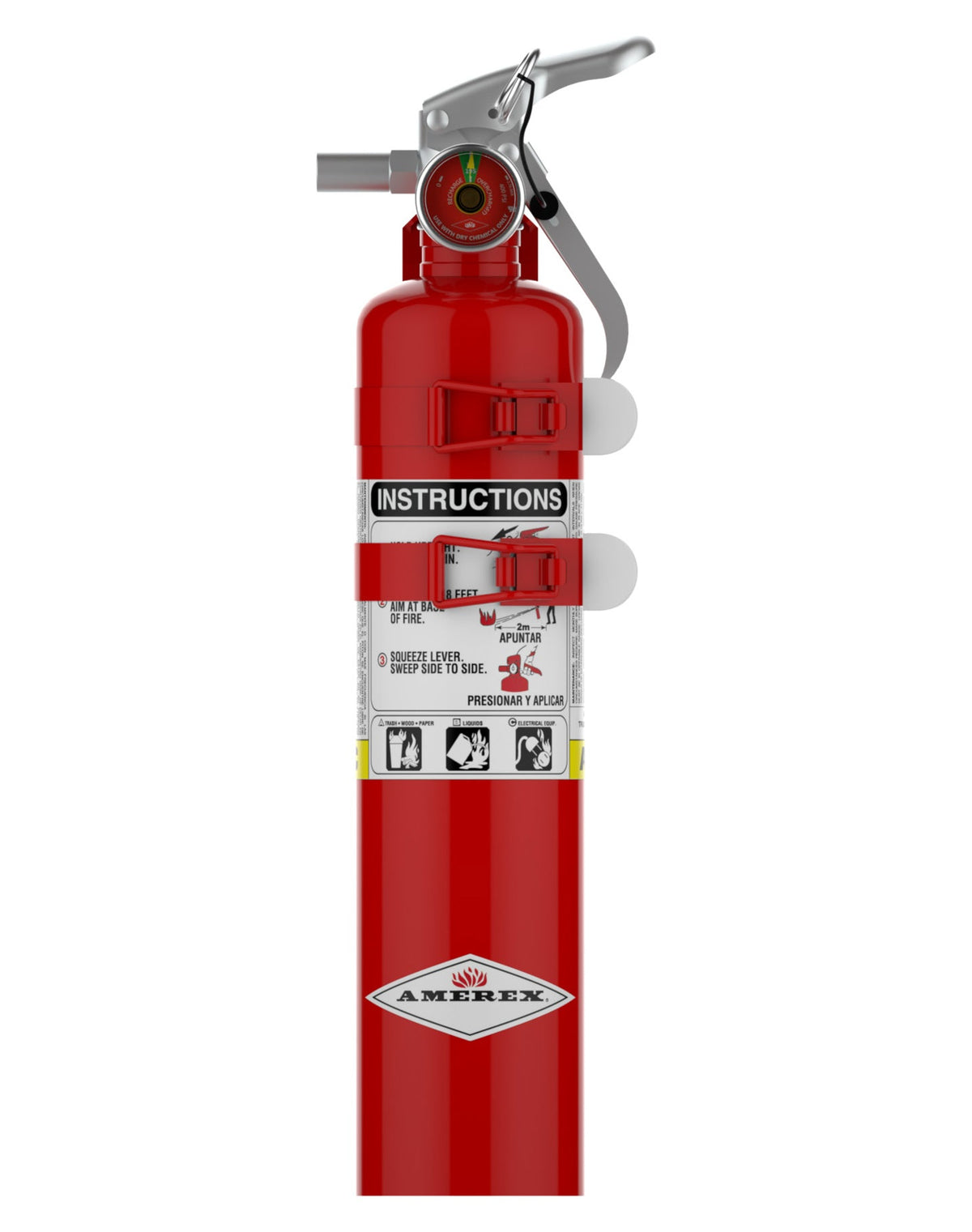

Amerex B417TS 2.5 lb ABC Dry Chemical Fire Extinguisher with 2-Strap Vehicle Bracket
FSP · P-02
What it is
Amerex B417TS is a 2.5 lb ABC dry chemical fire extinguisher rated 1A:10B:C for ordinary combustibles, flammable liquids and gases, and live electrical equipment. Discharge runs 9 seconds with an initial range of 9 to 15 ft at 195 PSIG. The agent is a specially fluidized and siliconized mono ammonium phosphate that melts and coats the burning surface, insulating Class A fuel and breaking the chain reaction on Class B fires. The cylinder is drawn-steel with an anodized aluminum valve body, anodized aluminum handle and lever. A vehicle bracket ships with the extinguisher. The operating temperature range is −65°F to 120°F.
Rough duty calls for a second strap. The Amerex B417TS pairs the compact 2.5 lb B417 platform with an included two-strap vehicle bracket that keeps the extinguisher planted through vibration and hard stops. Rated 1A:10B:C by UL, its ABC dry chemical chemically insulates Class A fires by melting at approximately 350°F and coating the surface, while smothering Class B fires and breaking the chain reaction without conducting electricity back to the operator.
- Two-strap vehicle bracket included
- Light- to medium-duty anodized aluminum valve body with anodized aluminum handle and lever
- Durable high-gloss polyester powder paint over all-metal valve construction
- UL rated 1A:10B:C
- Bilingual labels
Specifications
| Model | B417TS |
|---|---|
| Item / Part No. | 15949 |
| UL Rating | 1A:10B:C |
| Capacity | 2.5 lb |
| Shipping Weight | 5.5 lb |
| Boxed Dimensions (H × W × D) | 16.13 × 3.88 × 5.63 in |
FSP · P-03
Submittal data
The same values print on the submittal sheet.
| Ratings and agent | |
|---|---|
| UL and ULC rating | 1A:10B:C |
| Capacity | 2.5 lb |
| Agent | ABC dry chemical |
| Agent chemical base | Mono ammonium phosphate, specially fluidized and siliconized |
| Discharge design | Nozzle |
| Discharge | |
|---|---|
| Discharge time | 9 seconds |
| Initial range | 9 to 15 ft |
| Nominal operating pressure | 195 PSIG |
| Construction | |
|---|---|
| Cylinder material | Drawn-steel |
| Finish | High-gloss polyester powder paint |
| Valve construction | All-metal |
| Valve material | Anodized aluminum valve body / Anodized aluminum handle & lever |
| Operating temperature range | −65°F to 120°F |
| Dimensions and weight | |
|---|---|
| Height | 15.25 in |
| Width | 5.5 in |
| Depth | 3 in |
| Cylinder diameter | 3 in |
| Shipping weight | 5.5 lb |
| Mounting and standards | |
|---|---|
| Included bracket | Vehicle |
| Optional brackets | 817S |
| Tested to | CAN/ULC-S504 - UL 299 & CAN/ULC-S508 - UL 711 |
| Warranty | 6-Year manufacturer's warranty |
| Item | |
|---|---|
| Amerex item number | 15949 |
FSP · P-04
Documents
FSP · P-05
General notes
What is the UL rating of the Amerex B417TS?
1A:10B:C.
How many pounds of dry chemical is in the Amerex B417TS?
2.5 lb of ABC dry chemical - a specially fluidized and siliconized mono ammonium phosphate.
How long does the Amerex B417TS discharge for?
9 seconds.
Is there a chrome version of the Amerex B417TS?
Yes. The catalog marks OPTIONAL CHROME CYLINDER = Yes for this model.
How far does the Amerex B417TS spray?
Initial range 9-15 ft.
What are the dimensions of the Amerex B417TS?
Height 15.25 in., width 5.5 in., depth 3 in., on a 3 in. diameter cylinder.
How much does the Amerex B417TS weigh?
5.5 lb shipping weight. Amerex notes that shipping weight includes the box.
What pressure does the Amerex B417TS operate at?
195 PSIG nominal operating pressure. The parts book specifies 03103-P Gauge - 195 PSI for this model group.
Does the Amerex B417TS have an aluminum or a brass valve?
Aluminum. The valve body, handle and lever are anodized aluminum. Amerex classes this valve as light to medium duty.
