- Model
- 15267
- UL rating
- 2A:10B:C
- Ship weight
- 10.5 lb
- H × W × D
- 15.5″ × 8.0″ × 4.25″

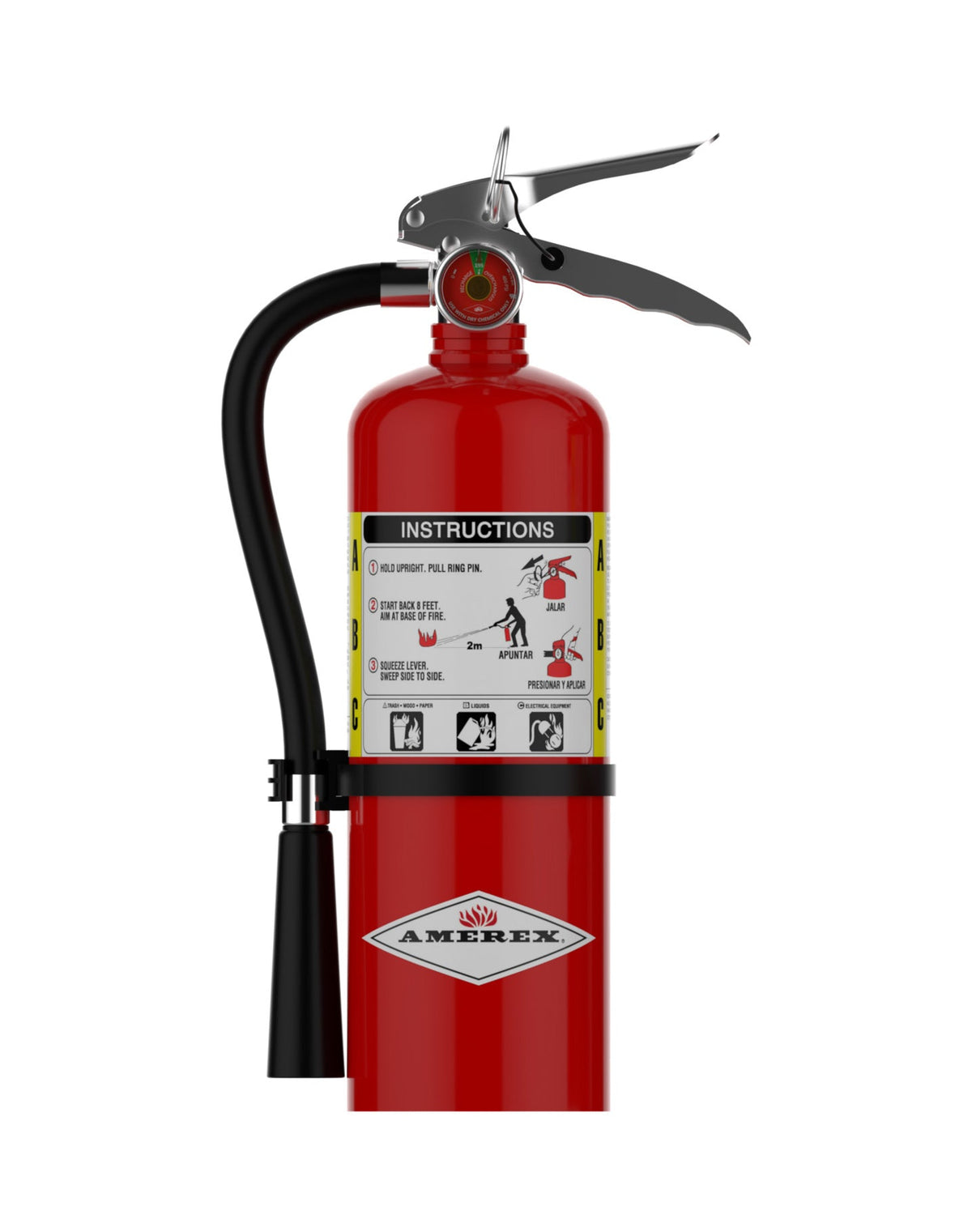

Amerex B424 5 lb ABC Dry Chemical Fire Extinguisher
FSP · P-02
What it is
Amerex B424 is a 5 lb ABC dry chemical fire extinguisher rated 2A:10B:C for ordinary combustibles, flammable liquids and gases, and live electrical equipment. Discharge runs 14 seconds with an initial range of 12 to 18 ft at 195 PSIG. The agent is a specially fluidized and siliconized mono ammonium phosphate that melts and coats the burning surface, insulating Class A fuel and breaking the chain reaction on Class B fires. The cylinder is drawn-steel with a chrome-plated brass valve body, stainless steel handle and lever. A wall bracket ships with the extinguisher. The operating temperature range is −65°F to 120°F.
Offices, shops, classrooms and stockrooms get a compact all-purpose defender in the Amerex B424. Its 5 lb ABC dry chemical charge chemically insulates Class A fires by melting at approximately 350F and coating the surface to which it is applied, smothers Class B liquid fires and breaks their chain reaction, and will not conduct electricity back to the operator. The 2A:10B:C rating covers all three of those hazard classes. Value shows in the hardware: a brass valve built from a chrome-plated brass valve body with a stainless steel handle and lever, finished with durable high gloss polyester powder paint. Bilingual labels come standard, and the unit stands just over 18 inches tall.
- 5 lb ABC dry chemical, UL rated 2A:10B:C
- Melts at approximately 350F to chemically insulate and coat Class A fuels
- Smothers Class B fires and breaks the chain reaction; will not conduct electricity back to the operator
- Brass valve with chrome plated valve body and stainless steel handle and lever
- Durable high gloss polyester powder paint; bilingual labels
Specifications
| Model | B424 |
|---|---|
| Item / Part No. | 15267 |
| UL Rating | 2A:10B:C |
| Capacity | 5 lb |
| Shipping Weight | 10.5 lb |
| Dimensions (H x W x D) | 18.38 in x 4.94 in x 7.5 in |
| Valve | Chrome plated brass body, stainless steel handle and lever |
FSP · P-03
Submittal data
The same values print on the submittal sheet.
| Ratings and agent | |
|---|---|
| UL and ULC rating | 2A:10B:C |
| Capacity | 5 lb |
| Agent | ABC dry chemical |
| Agent chemical base | Mono ammonium phosphate, specially fluidized and siliconized |
| Discharge design | Hose & Nozzle |
| Discharge | |
|---|---|
| Discharge time | 14 seconds |
| Initial range | 12 to 18 ft |
| Nominal operating pressure | 195 PSIG |
| Construction | |
|---|---|
| Cylinder material | Drawn-steel |
| Finish | High-gloss polyester powder paint |
| Valve construction | All-metal |
| Valve material | Chrome-plated brass valve body / Stainless steel handle & lever |
| Operating temperature range | −65°F to 120°F |
| Dimensions and weight | |
|---|---|
| Height | 15.5 in |
| Width | 8 in |
| Depth | 4.25 in |
| Cylinder diameter | 4.25 in |
| Shipping weight | 10.5 lb |
| Mounting and standards | |
|---|---|
| Included bracket | Wall |
| Optional brackets | 821, 821S, 807 |
| Tested to | CAN/ULC-S504 - UL 299 & CAN/ULC-S508 - UL 711 |
| Warranty | 6-Year manufacturer's warranty |
| Item | |
|---|---|
| Amerex item number | 15267 |
FSP · P-04
Documents
FSP · P-05
General notes
What is the UL rating of the Amerex B424?
2A:10B:C.
How many pounds of dry chemical is in the Amerex B424?
5 lb of ABC dry chemical - a specially fluidized and siliconized mono ammonium phosphate.
How long does the Amerex B424 discharge for?
14 seconds.
Is there a chrome version of the Amerex B424?
No. The OPTIONAL CHROME CYLINDER row of the ABC spec table has no entry for this model.
How far does the Amerex B424 spray?
Initial range 12-18 ft.
What are the dimensions of the Amerex B424?
Height 15.5 in., width 8 in., depth 4.25 in., on a 4.25 in. diameter cylinder.
How much does the Amerex B424 weigh?
10.5 lb shipping weight. Amerex notes that shipping weight includes the box.
What pressure does the Amerex B424 operate at?
195 PSIG nominal operating pressure. The parts book specifies 03965-P Gauge - 195 PSI for this model group.
Does the Amerex B424 have an aluminum or a brass valve?
Brass. The valve body is chrome-plated brass with a stainless steel handle and lever. Amerex classes this valve as heavy duty.
