- Model
- 14966
- UL rating
- 4A:80B:C
- Ship weight
- 19.5 lb
- H × W × D
- 20.5″ × 8.75″ × 5.0″

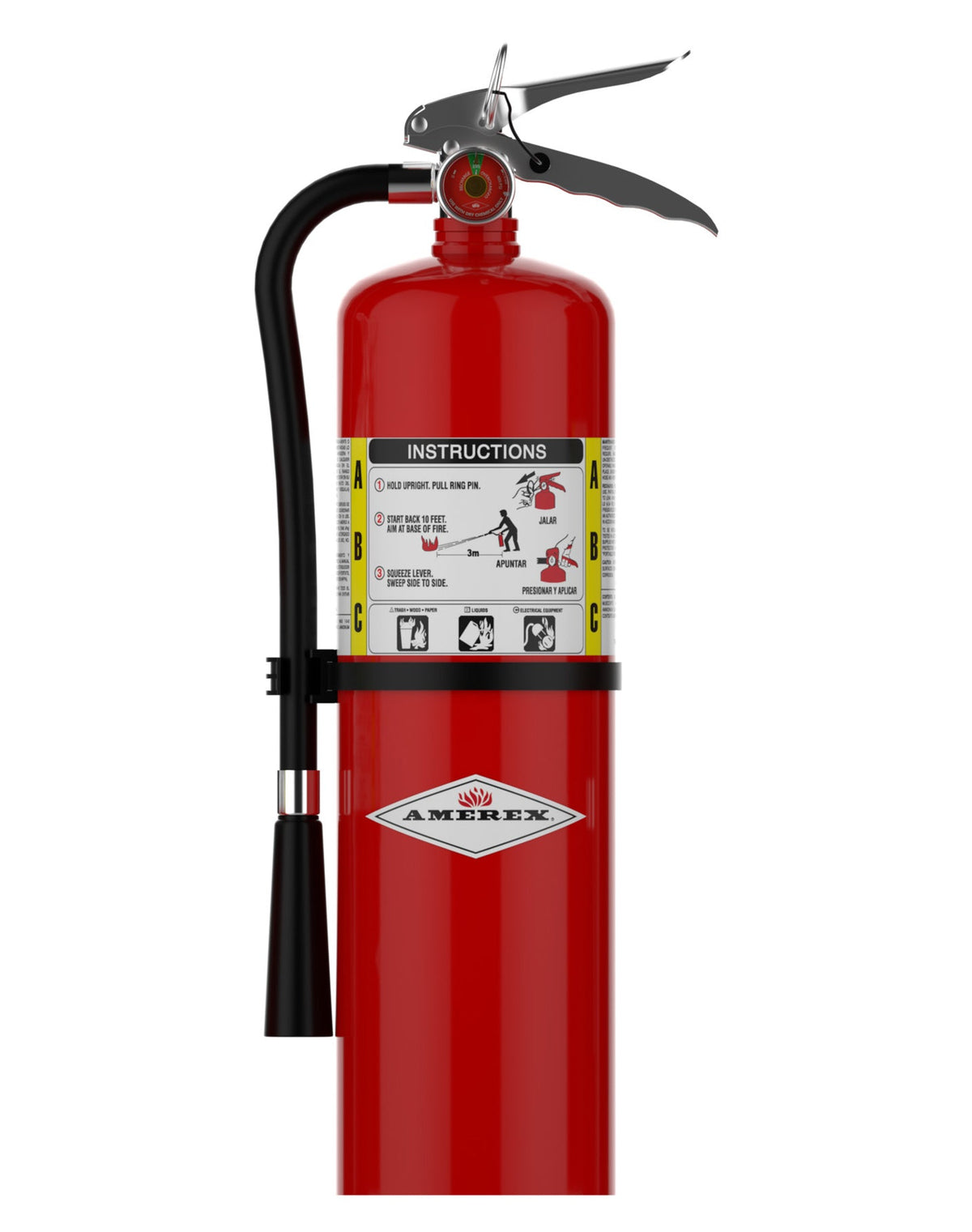

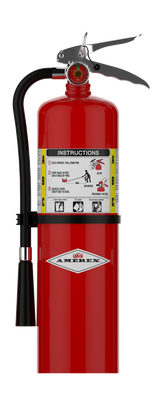

Amerex B441 10 lb ABC Dry Chemical Fire Extinguisher
FSP · P-02
What it is
Amerex B441 is a 10 lb ABC dry chemical fire extinguisher rated 4A:80B:C for ordinary combustibles, flammable liquids and gases, and live electrical equipment. Discharge runs 22 seconds with an initial range of 15 to 21 ft at 195 PSIG. The agent is a specially fluidized and siliconized mono ammonium phosphate that melts and coats the burning surface, insulating Class A fuel and breaking the chain reaction on Class B fires. The cylinder is drawn-steel with a chrome-plated brass valve body, stainless steel handle and lever. A wall bracket ships with the extinguisher. The operating temperature range is −65°F to 120°F.
Ten pounds is the sweet spot for many commercial spaces: enough agent for a developing fire, still manageable for a single operator. The Amerex B441 delivers that in a 4A:80B:C package. Its dry chemical melts at approximately 350F to chemically insulate Class A fuels and coat the surface to which it is applied; on Class B fires it smothers the flame and breaks the chain reaction, and it will not conduct electricity back to the operator. Built to last, the B441 uses all-metal valve construction with a heavy duty chrome plated brass valve body, a stainless steel handle and lever, and a durable high gloss polyester powder paint finish. Bilingual labels are printed on every unit.
- 10 lb ABC dry chemical charge with a 4A:80B:C UL rating
- Chemically insulates Class A fires by melting at approximately 350F
- Smothers Class B fires and breaks the chain reaction; no conductivity back to the operator
- All-metal valve construction: heavy duty chrome plated brass valve body, stainless steel handle and lever
- Durable high gloss polyester powder paint and bilingual labels
Specifications
| Model | B441 |
|---|---|
| Item / Part No. | 14966 |
| UL Rating | 4A:80B:C |
| Capacity | 10 lb |
| Shipping Weight | 19.5 lb |
| Dimensions (H x W x D) | 22 in x 5.5 in x 7.13 in |
| Valve | Chrome plated brass body, stainless steel handle and lever |
FSP · P-03
Submittal data
The same values print on the submittal sheet.
| Ratings and agent | |
|---|---|
| UL and ULC rating | 4A:80B:C |
| Capacity | 10 lb |
| Agent | ABC dry chemical |
| Agent chemical base | Mono ammonium phosphate, specially fluidized and siliconized |
| Discharge design | Hose & Nozzle |
| Discharge | |
|---|---|
| Discharge time | 22 seconds |
| Initial range | 15 to 21 ft |
| Nominal operating pressure | 195 PSIG |
| Construction | |
|---|---|
| Cylinder material | Drawn-steel |
| Finish | High-gloss polyester powder paint |
| Valve construction | All-metal |
| Valve material | Chrome-plated brass valve body / Stainless steel handle & lever |
| Operating temperature range | −65°F to 120°F |
| Dimensions and weight | |
|---|---|
| Height | 20.5 in |
| Width | 8.75 in |
| Depth | 5 in |
| Cylinder diameter | 5 in |
| Shipping weight | 19.5 lb |
| Mounting and standards | |
|---|---|
| Included bracket | Wall |
| Optional brackets | 808, 809, 889HB, 895, 846 |
| Tested to | CAN/ULC-S504 - UL 299 & CAN/ULC-S508 - UL 711 |
| Warranty | 6-Year manufacturer's warranty |
| Item | |
|---|---|
| Amerex item number | 14966 |
FSP · P-04
Documents
FSP · P-05
General notes
What is the UL rating of the Amerex B441?
4A:80B:C.
How many pounds of dry chemical is in the Amerex B441?
10 lb of ABC dry chemical - a specially fluidized and siliconized mono ammonium phosphate.
How long does the Amerex B441 discharge for?
22 seconds.
Is there a chrome version of the Amerex B441?
Yes. The catalog marks OPTIONAL CHROME CYLINDER = Yes for this model.
How far does the Amerex B441 spray?
Initial range 15-21 ft.
What are the dimensions of the Amerex B441?
Height 20.5 in., width 8.75 in., depth 5 in., on a 5 in. diameter cylinder.
How much does the Amerex B441 weigh?
19.5 lb shipping weight. Amerex notes that shipping weight includes the box.
What pressure does the Amerex B441 operate at?
195 PSIG nominal operating pressure. The parts book specifies 03965-P Gauge - 195 PSI for this model group.
Does the Amerex B441 have an aluminum or a brass valve?
Brass. The valve body is chrome-plated brass with a stainless steel handle and lever. Amerex classes this valve as heavy duty.
