- Model
- 15365
- UL rating
- 4A:80B:C
- Ship weight
- 19.5 lb
- H × W × D
- 20.5″ × 8.75″ × 5.0″

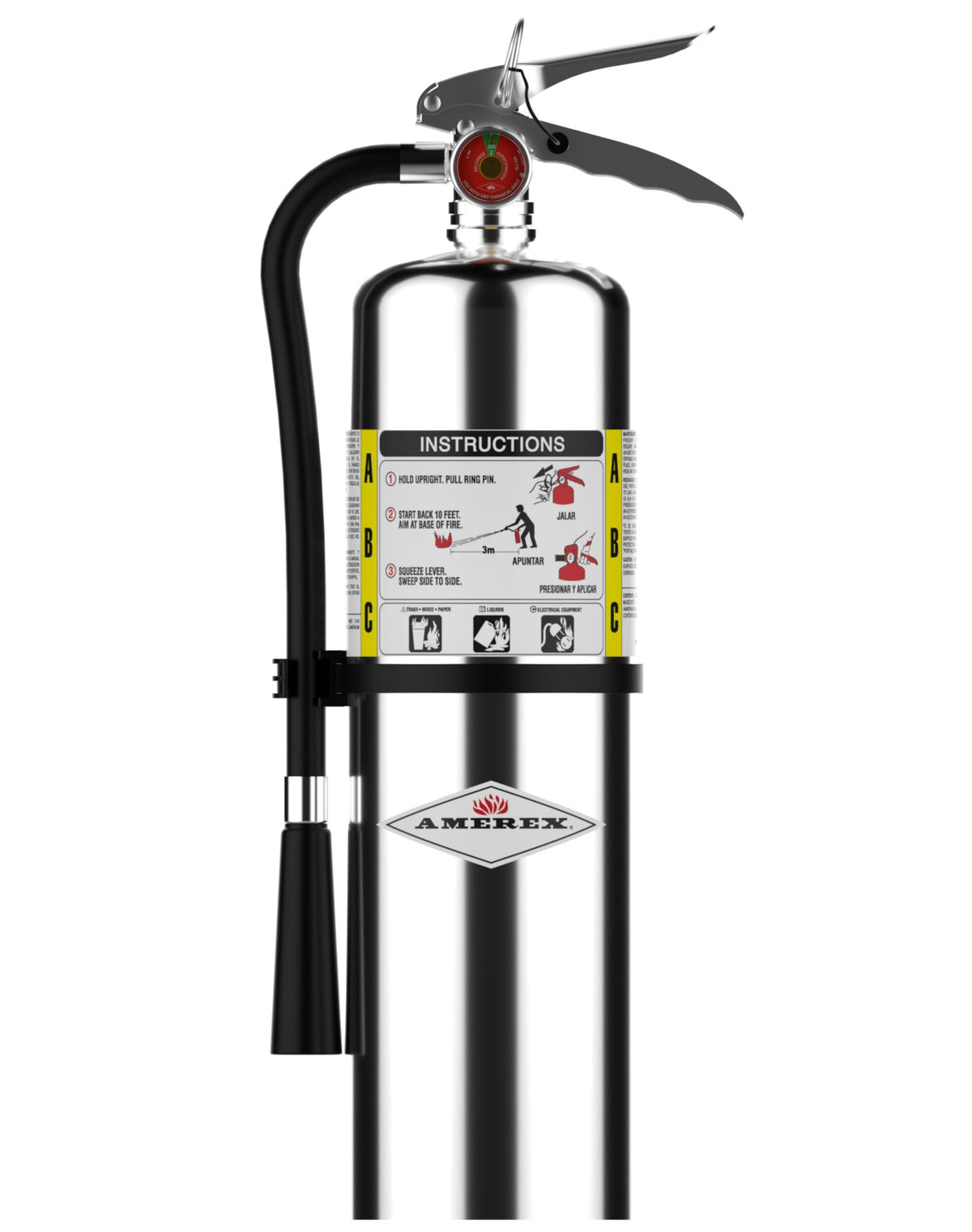

Amerex B441C 10 lb ABC Dry Chemical Fire Extinguisher - Chrome
FSP · P-02
What it is
Amerex B441C is a 10 lb ABC dry chemical fire extinguisher rated 4A:80B:C for ordinary combustibles, flammable liquids and gases, and live electrical equipment. Discharge runs 22 seconds with an initial range of 15 to 21 ft at 195 PSIG. The agent is a specially fluidized and siliconized mono ammonium phosphate that melts and coats the burning surface, insulating Class A fuel and breaking the chain reaction on Class B fires. The cylinder is drawn-steel with a chrome-plated brass valve body, stainless steel handle and lever. A wall bracket ships with the extinguisher. The operating temperature range is −65°F to 120°F.
Specify the B441C where the extinguisher is on display as much as on duty: hotel lobbies, showrooms, restaurant fronts and executive floors. It carries the same 4A:80B:C rating and 10 lb ABC dry chemical charge as the standard B441, in a chrome cylinder. The agent chemically insulates Class A fires by melting at approximately 350F and coating the surface to which it is applied, smothers Class B fires and breaks the chain reaction, and will not conduct electricity back to the operator. Underneath the finish is the same brass valve found across the line, with a heavy duty chrome plated brass valve body, stainless steel handle and lever, and durable high gloss polyester powder paint. Bilingual labels included.
- Chrome cylinder finish for high-visibility and architectural installations
- 10 lb ABC dry chemical, UL rated 4A:80B:C
- Brass valve with heavy duty chrome plated valve body and stainless steel handle and lever
- All-metal valve construction with durable high gloss polyester powder paint
- Melts at approximately 350F to insulate Class A fuels; no conductivity back to the operator
Specifications
| Model | B441C |
|---|---|
| Item / Part No. | 15365 |
| UL Rating | 4A:80B:C |
| Capacity | 10 lb |
| Shipping Weight | 19.5 lb |
| Dimensions (H x W x D) | 22 in x 5.5 in x 7.13 in |
| Finish | Chrome cylinder |
| Valve | Chrome plated brass body, stainless steel handle and lever |
FSP · P-03
Submittal data
The same values print on the submittal sheet.
| Ratings and agent | |
|---|---|
| UL and ULC rating | 4A:80B:C |
| Capacity | 10 lb |
| Agent | ABC dry chemical |
| Agent chemical base | Mono ammonium phosphate, specially fluidized and siliconized |
| Discharge design | Hose & Nozzle |
| Discharge | |
|---|---|
| Discharge time | 22 seconds |
| Initial range | 15 to 21 ft |
| Nominal operating pressure | 195 PSIG |
| Construction | |
|---|---|
| Cylinder material | Drawn-steel |
| Finish | High-gloss polyester powder paint |
| Valve construction | All-metal |
| Valve material | Chrome-plated brass valve body / Stainless steel handle & lever |
| Operating temperature range | −65°F to 120°F |
| Dimensions and weight | |
|---|---|
| Height | 20.5 in |
| Width | 8.75 in |
| Depth | 5 in |
| Cylinder diameter | 5 in |
| Shipping weight | 19.5 lb |
| Mounting and standards | |
|---|---|
| Included bracket | Wall |
| Optional brackets | 808, 809, 889HB, 895, 846 |
| Tested to | CAN/ULC-S504 - UL 299 & CAN/ULC-S508 - UL 711 |
| Warranty | 6-Year manufacturer's warranty |
| Item | |
|---|---|
| Amerex item number | 15365 |
FSP · P-04
Documents
FSP · P-05
General notes
What is the UL rating of the Amerex B441C?
4A:80B:C.
How many pounds of dry chemical is in the Amerex B441C?
10 lb of ABC dry chemical - a specially fluidized and siliconized mono ammonium phosphate.
How long does the Amerex B441C discharge for?
22 seconds.
Is there a chrome version of the Amerex B441C?
Yes. The catalog marks OPTIONAL CHROME CYLINDER = Yes for this model.
How far does the Amerex B441C spray?
Initial range 15-21 ft.
What are the dimensions of the Amerex B441C?
Height 20.5 in., width 8.75 in., depth 5 in., on a 5 in. diameter cylinder.
How much does the Amerex B441C weigh?
19.5 lb shipping weight. Amerex notes that shipping weight includes the box.
What pressure does the Amerex B441C operate at?
195 PSIG nominal operating pressure. The parts book specifies 03965-P Gauge - 195 PSI for this model group.
Does the Amerex B441C have an aluminum or a brass valve?
Brass. The valve body is chrome-plated brass with a stainless steel handle and lever. Amerex classes this valve as heavy duty.
