- Model
- 15393
- UL rating
- 3A:40B:C
- Ship weight
- 12.5 lb
- H × W × D
- 16.0″ × 7.75″ × 5.0″

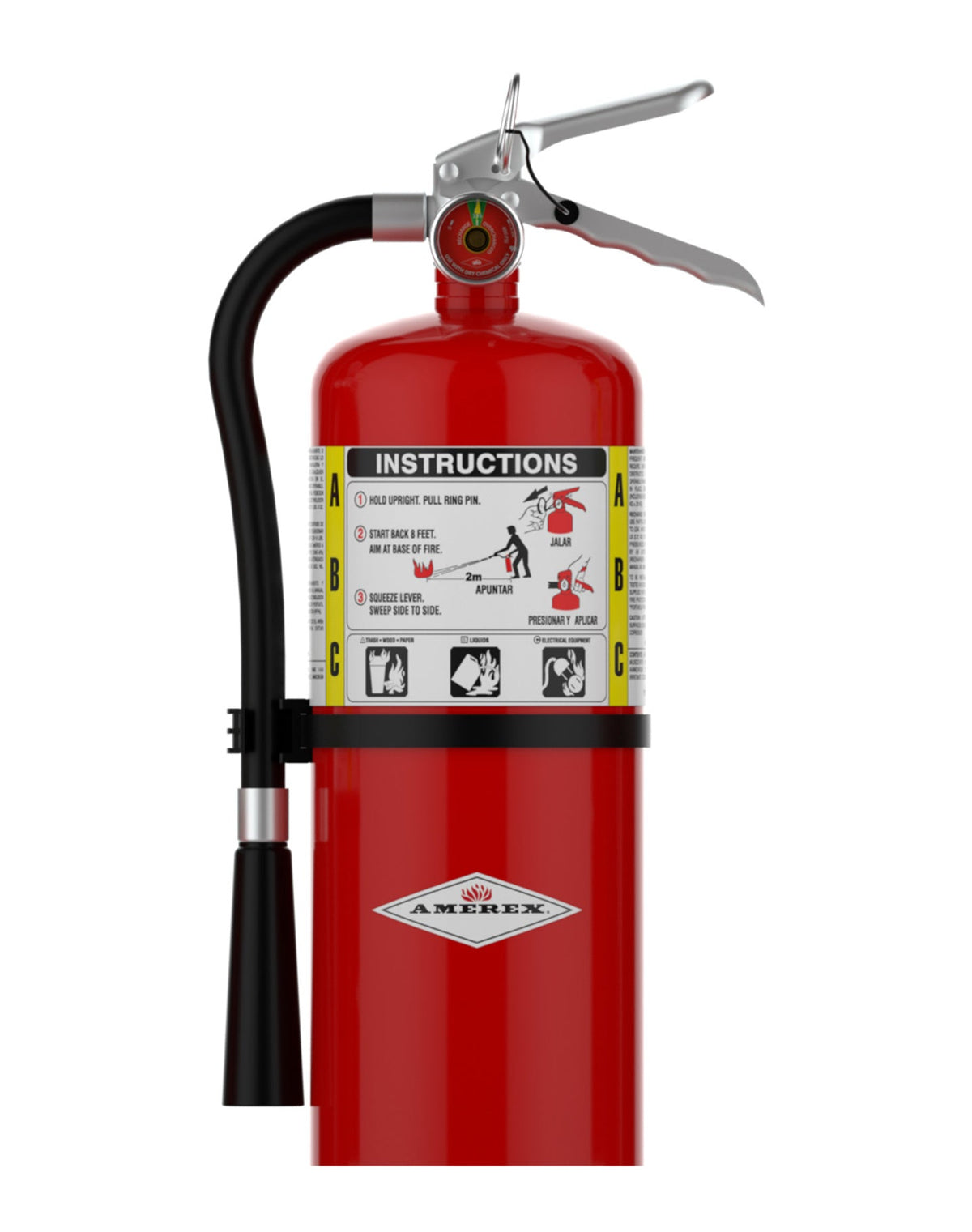

Amerex B443 6 lb ABC Dry Chemical Fire Extinguisher
FSP · P-02
What it is
Amerex B443 is a 6 lb ABC dry chemical fire extinguisher rated 3A:40B:C for ordinary combustibles, flammable liquids and gases, and live electrical equipment. Discharge runs 14.5 seconds with an initial range of 15 to 21 ft at 195 PSIG. The agent is a specially fluidized and siliconized mono ammonium phosphate that melts and coats the burning surface, insulating Class A fuel and breaking the chain reaction on Class B fires. The cylinder is drawn-steel with an anodized aluminum valve body, anodized aluminum handle and lever. A wall bracket ships with the extinguisher. The operating temperature range is −65°F to 120°F.
An extra pound of agent over the familiar 5 lb size gives the Amerex B443 added staying power without much added bulk. This 6 lb ABC extinguisher carries a UL rating of 3A:40B:C and features a light- to medium-duty anodized aluminum valve body with anodized aluminum handle and lever. Its dry chemical chemically insulates Class A fires by melting at approximately 350°F and coating the surface, and it smothers Class B fires by breaking the chain reaction.
- 6 lb ABC capacity, UL rated 3A:40B:C
- High-gloss polyester paint over all-metal valve construction
- Anodized aluminum valve body, handle, and lever
- Will not conduct electricity back to the operator
- Bilingual labels; made in the U.S.A.
Specifications
| Model | B443 |
|---|---|
| Item / Part No. | 15393 |
| UL Rating | 3A:40B:C |
| Capacity | 6 lb |
| Shipping Weight | 12.5 lb |
| Boxed Dimensions (H × W × D) | 18.94 × 5.88 × 7 in |
FSP · P-03
Submittal data
The same values print on the submittal sheet.
| Ratings and agent | |
|---|---|
| UL and ULC rating | 3A:40B:C |
| Capacity | 6 lb |
| Agent | ABC dry chemical |
| Agent chemical base | Mono ammonium phosphate, specially fluidized and siliconized |
| Discharge design | Hose & Nozzle |
| Discharge | |
|---|---|
| Discharge time | 14.5 seconds |
| Initial range | 15 to 21 ft |
| Nominal operating pressure | 195 PSIG |
| Construction | |
|---|---|
| Cylinder material | Drawn-steel |
| Finish | High-gloss polyester powder paint |
| Valve construction | All-metal |
| Valve material | Anodized aluminum valve body / Anodized aluminum handle & lever |
| Operating temperature range | −65°F to 120°F |
| Dimensions and weight | |
|---|---|
| Height | 16 in |
| Width | 7.75 in |
| Depth | 5 in |
| Cylinder diameter | 5 in |
| Shipping weight | 12.75 lb |
| Mounting and standards | |
|---|---|
| Included bracket | Wall |
| Optional brackets | 808, 809, 889HB, 895 |
| Tested to | CAN/ULC-S504 - UL 299 & CAN/ULC-S508 - UL 711 |
| Warranty | 6-Year manufacturer's warranty |
| Item | |
|---|---|
| Amerex item number | 15393 |
FSP · P-04
Documents
FSP · P-05
General notes
What is the UL rating of the Amerex B443?
3A:40B:C.
How many pounds of dry chemical is in the Amerex B443?
6 lb of ABC dry chemical - a specially fluidized and siliconized mono ammonium phosphate.
How long does the Amerex B443 discharge for?
14.5 seconds.
Is there a chrome version of the Amerex B443?
No. The OPTIONAL CHROME CYLINDER row of the ABC spec table has no entry for this model.
How far does the Amerex B443 spray?
Initial range 15-21 ft.
What are the dimensions of the Amerex B443?
Height 16 in., width 7.75 in., depth 5 in., on a 5 in. diameter cylinder.
How much does the Amerex B443 weigh?
12.75 lb shipping weight. Amerex notes that shipping weight includes the box.
What pressure does the Amerex B443 operate at?
195 PSIG nominal operating pressure. The parts book specifies 03103-P Gauge - 195 PSI for this model group.
Does the Amerex B443 have an aluminum or a brass valve?
Aluminum. The valve body, handle and lever are anodized aluminum. Amerex classes this valve as light to medium duty.
