- Model
- 14967
- UL rating
- 4A:80B:C
- Ship weight
- 18.0 lb
- H × W × D
- 20.0″ × 7.75″ × 5.0″

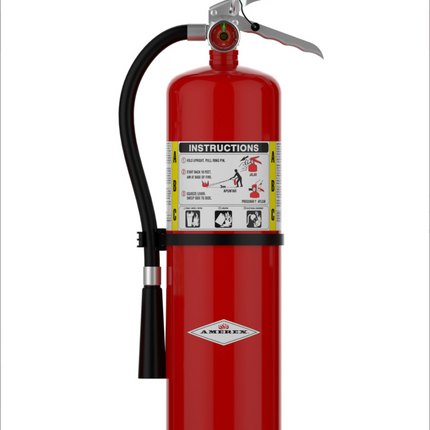

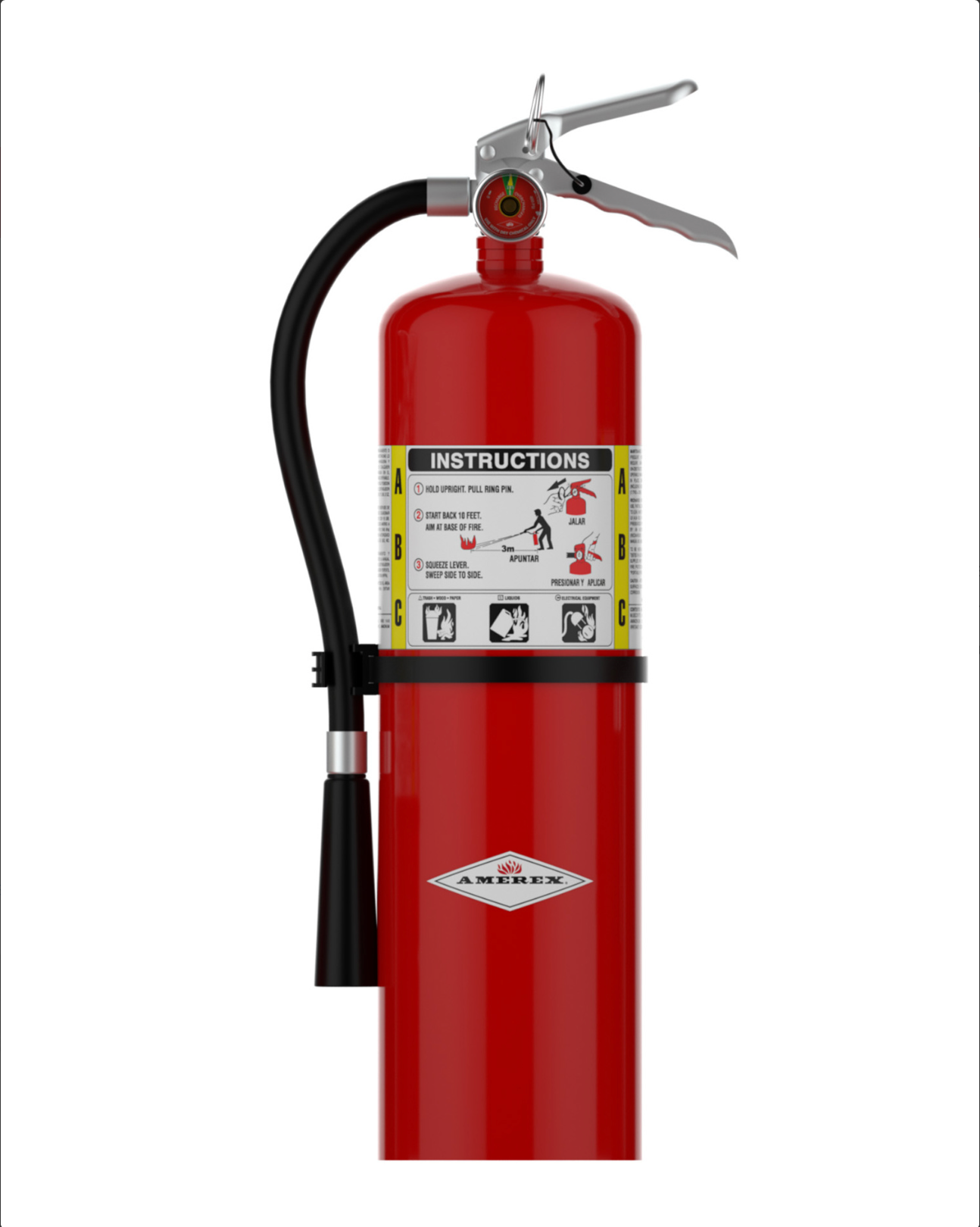

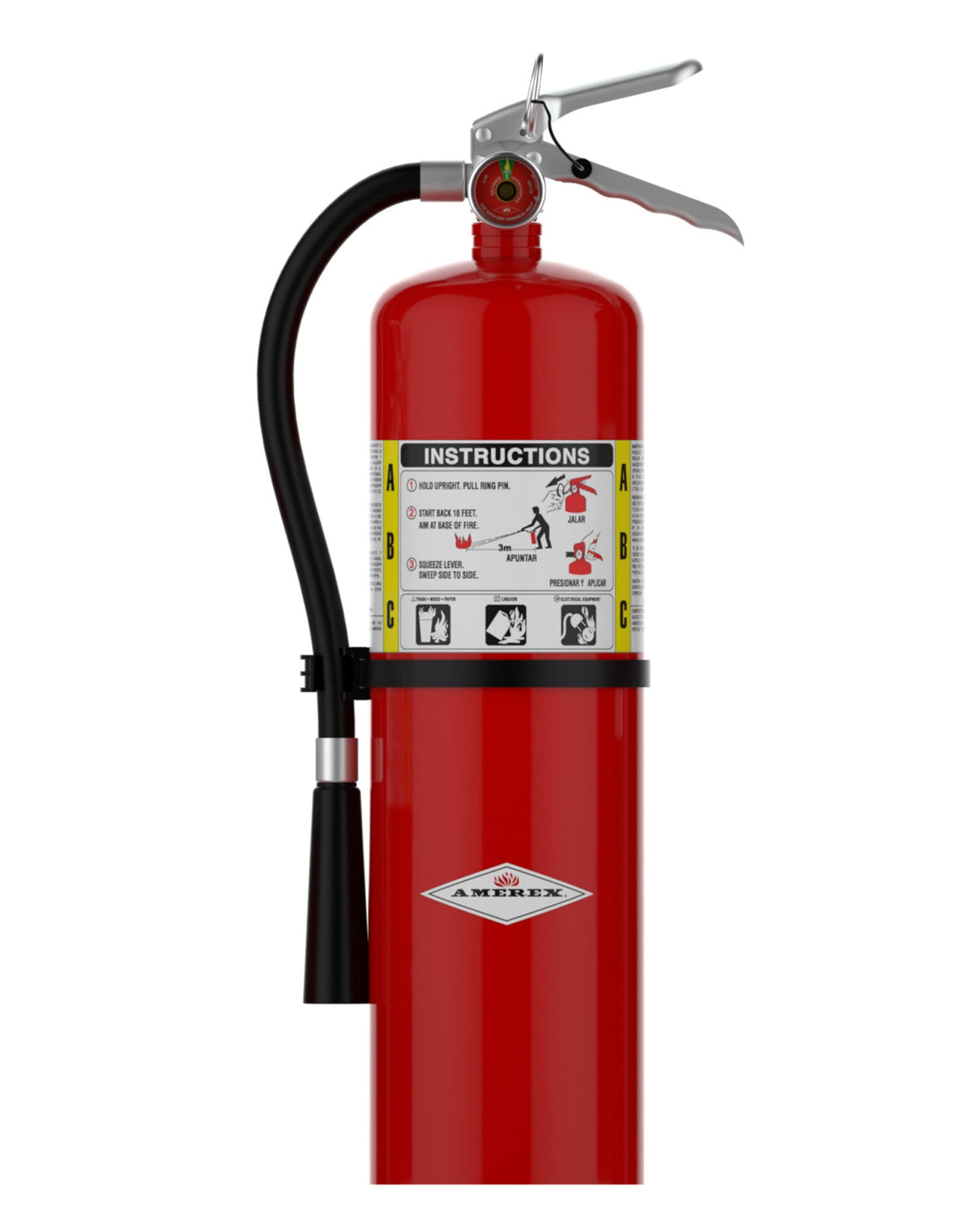

Amerex B456 10 lb ABC Dry Chemical Fire Extinguisher
FSP · P-02
What it is
Amerex B456 is a 10 lb ABC dry chemical fire extinguisher rated 4A:80B:C for ordinary combustibles, flammable liquids and gases, and live electrical equipment. Discharge runs 22 seconds with an initial range of 15 to 21 ft at 195 PSIG. The agent is a specially fluidized and siliconized mono ammonium phosphate that melts and coats the burning surface, insulating Class A fuel and breaking the chain reaction on Class B fires. The cylinder is drawn-steel with an anodized aluminum valve body, anodized aluminum handle and lever. A wall bracket ships with the extinguisher. The operating temperature range is −65°F to 120°F.
Bigger spaces call for more agent, and the Amerex B456 answers with 10 lb of ABC dry chemical and a UL rating of 4A:80B:C. It is built for fires involving trash, wood, and paper (Class A), liquids and gases (Class B), and electric fires (Class C). The spray hose puts agent exactly where you aim it, and the easy-to-read pressure gauge confirms at a glance that the unit is ready to use.
- 10 lb capacity, UL rated 4A:80B:C

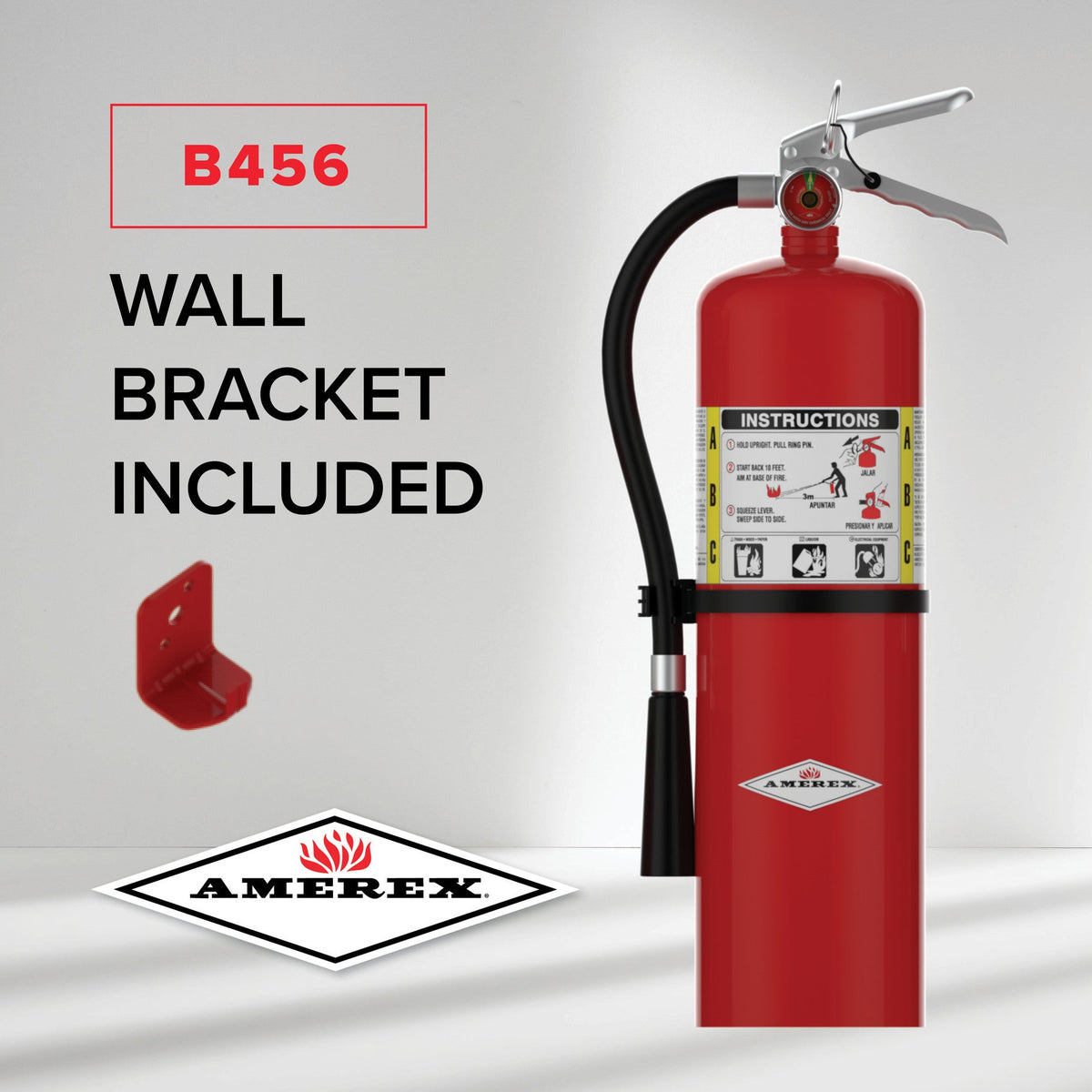

- Heavy-duty wall bracket included
- Spray hose for accurate agent placement
- Anodized aluminum valve body, handle, and lever with durable high-gloss polyester powder paint

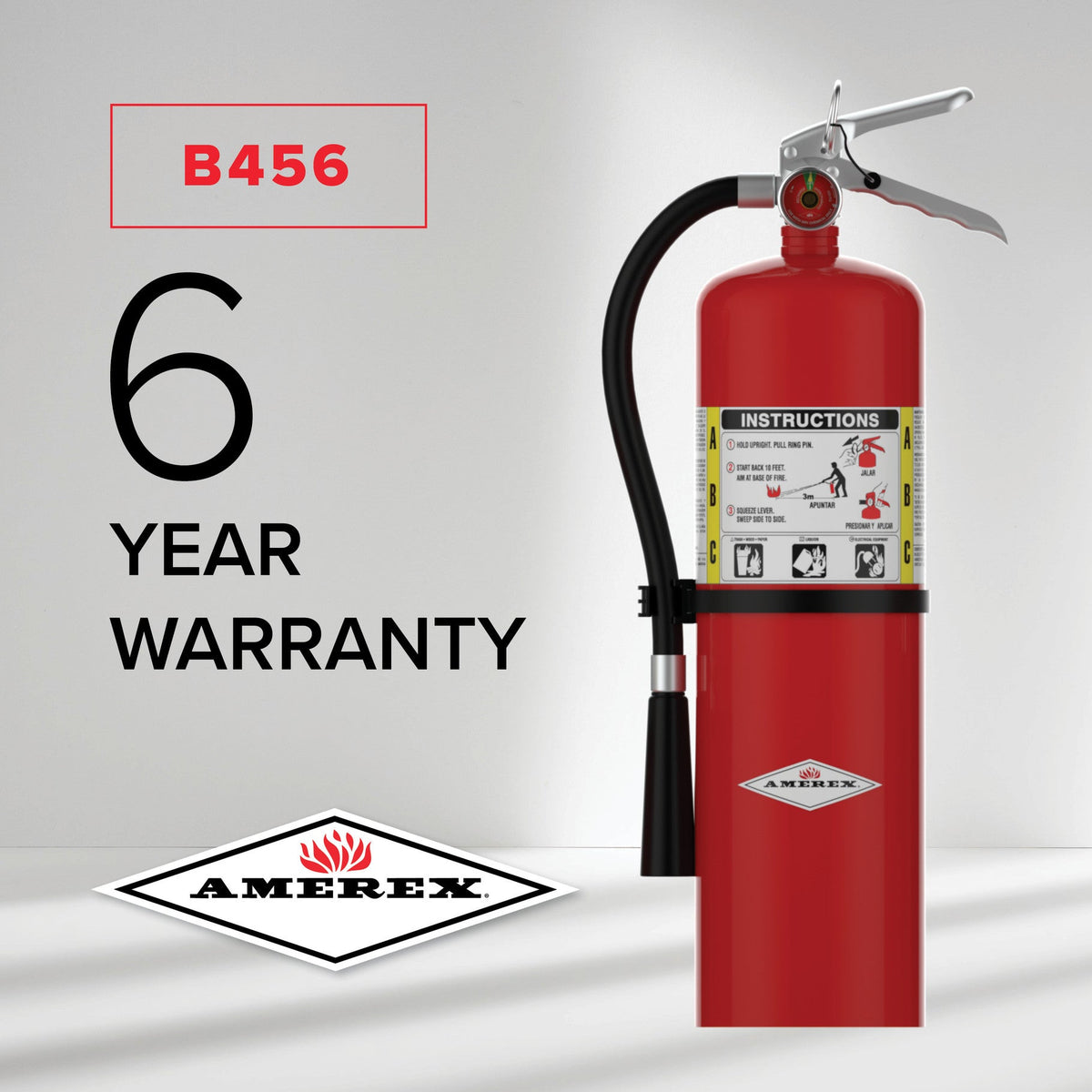

- 6-year warranty
Specifications
| Model | B456 |
|---|---|
| Item / Part No. | 14967 |
| UL Rating | 4A:80B:C |
| Capacity | 10 lb |
| Shipping Weight | 18 lb |
| Boxed Dimensions (H × W × D) | 22.13 × 5.5 × 6.25 in |
FSP · P-03
Submittal data
The same values print on the submittal sheet.
| Ratings and agent | |
|---|---|
| UL and ULC rating | 4A:80B:C |
| Capacity | 10 lb |
| Agent | ABC dry chemical |
| Agent chemical base | Mono ammonium phosphate, specially fluidized and siliconized |
| Discharge design | Hose & Nozzle |
| Discharge | |
|---|---|
| Discharge time | 22 seconds |
| Initial range | 15 to 21 ft |
| Nominal operating pressure | 195 PSIG |
| Construction | |
|---|---|

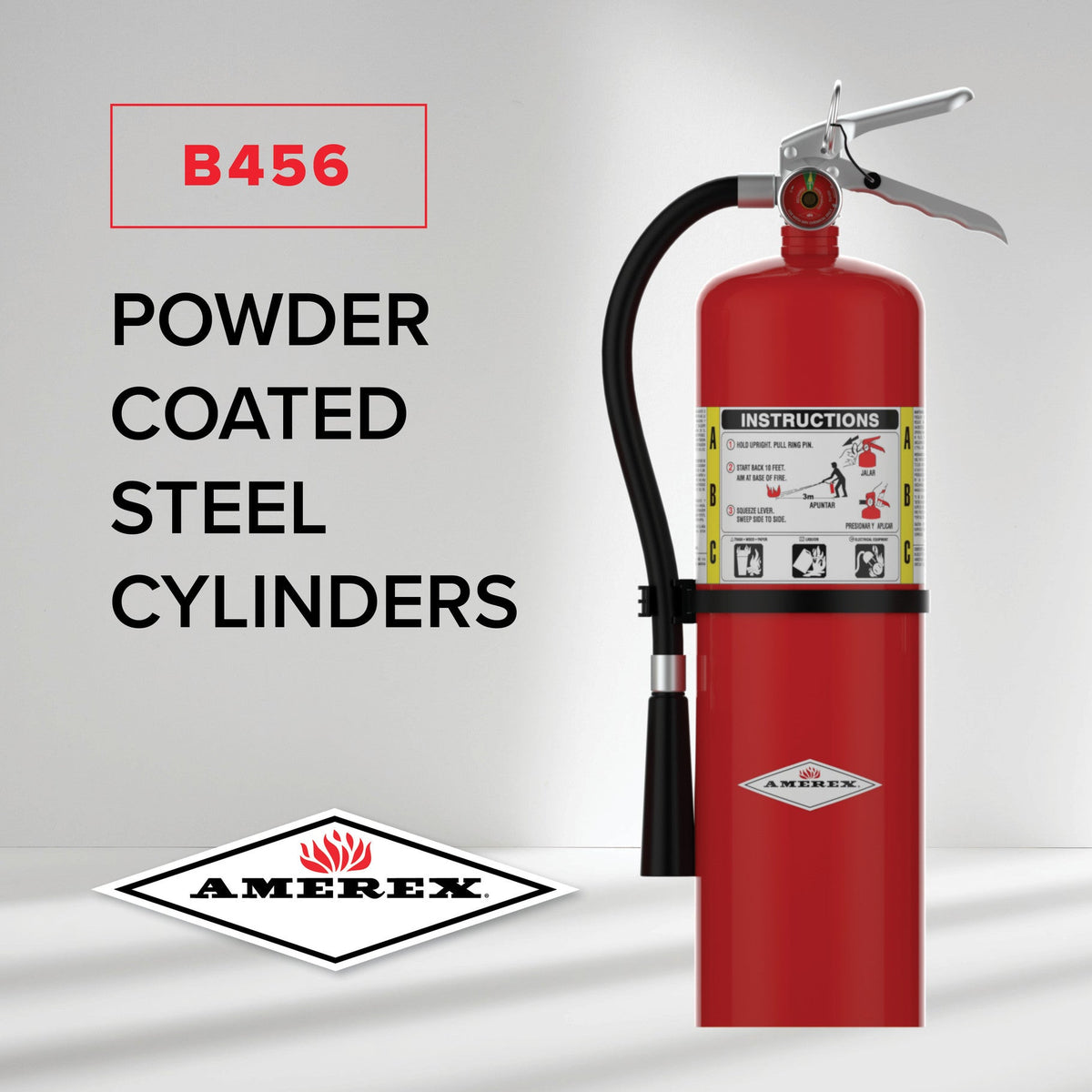

| Cylinder material | Drawn-steel |
| Finish | High-gloss polyester powder paint |

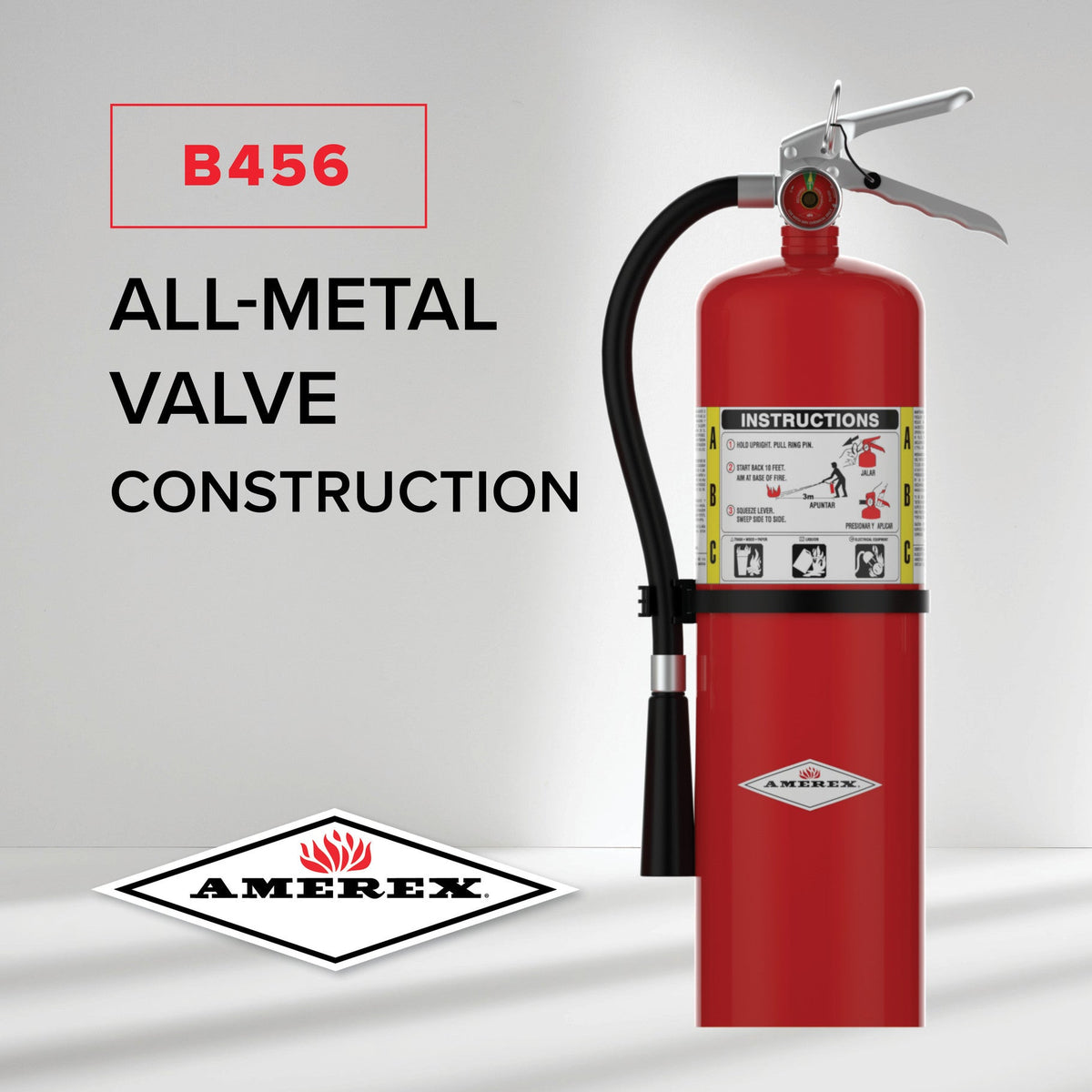

| Valve construction | All-metal |
| Valve material | Anodized aluminum valve body / Anodized aluminum handle & lever |
| Operating temperature range | −65°F to 120°F |
| Dimensions and weight | |
|---|---|
| Height | 20 in |
| Width | 7.75 in |
| Depth | 5 in |
| Cylinder diameter | 5 in |
| Shipping weight | 18 lb |
| Mounting and standards | |
|---|---|
| Included bracket | Wall |
| Optional brackets | 808, 809, 846, 889, 889HB, 895 |
| Tested to | CAN/ULC-S504 - UL 299 & CAN/ULC-S508 - UL 711 |
| Warranty | 6-Year manufacturer's warranty |
| Item | |
|---|---|
| Amerex item number | 14967 |
FSP · P-04
Documents
FSP · P-05
General notes
What is the UL rating of the Amerex B456?
4A:80B:C.
How many pounds of dry chemical is in the Amerex B456?
10 lb of ABC dry chemical - a specially fluidized and siliconized mono ammonium phosphate.
How long does the Amerex B456 discharge for?
22 seconds.
Is there a chrome version of the Amerex B456?
Yes. The catalog marks OPTIONAL CHROME CYLINDER = Yes for this model.
How far does the Amerex B456 spray?
Initial range 15-21 ft.
What are the dimensions of the Amerex B456?
Height 20 in., width 7.75 in., depth 5 in., on a 5 in. diameter cylinder.
How much does the Amerex B456 weigh?
18 lb shipping weight. Amerex notes that shipping weight includes the box.
What pressure does the Amerex B456 operate at?
195 PSIG nominal operating pressure. The parts book specifies 03103-P Gauge - 195 PSI for this model group.
Does the Amerex B456 have an aluminum or a brass valve?
Aluminum. The valve body, handle and lever are anodized aluminum. Amerex classes this valve as light to medium duty.
