- Model
- 15576
- UL rating
- 4A:80B:C
- Ship weight
- 18.0 lb
- H × W × D
- 20.0″ × 7.75″ × 5.0″

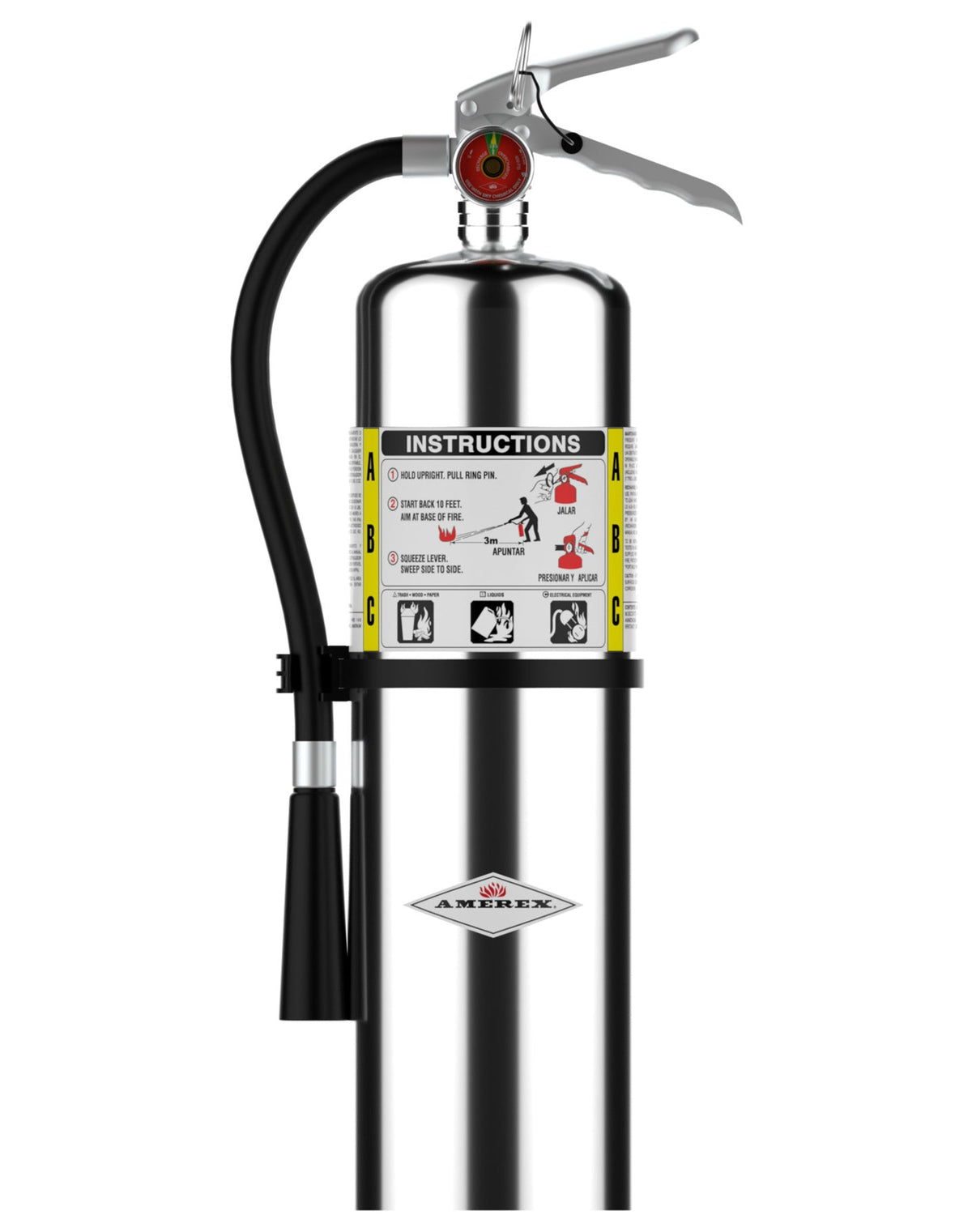

Amerex B456C 10 lb ABC Dry Chemical Fire Extinguisher, Chrome
FSP · P-02
What it is
Amerex B456C is a 10 lb ABC dry chemical fire extinguisher rated 4A:80B:C for ordinary combustibles, flammable liquids and gases, and live electrical equipment. Discharge runs 22 seconds with an initial range of 15 to 21 ft at 195 PSIG. The agent is a specially fluidized and siliconized mono ammonium phosphate that melts and coats the burning surface, insulating Class A fuel and breaking the chain reaction on Class B fires. The cylinder is drawn-steel with an anodized aluminum valve body, anodized aluminum handle and lever. A wall bracket ships with the extinguisher. The operating temperature range is −65°F to 120°F.
All the capability of Amerex's 10 lb ABC platform with a chrome cylinder that refuses to blend into the wall. UL rated 4A:80B:C, the B456C chemically insulates Class A fires by melting at approximately 350°F and coating the surface it is applied to, smothers Class B fires by breaking the chain reaction, and will not conduct electricity back to the operator.
- Chrome cylinders paired with all-metal valve construction
- Substantial 10 lb ABC charge, UL rated 4A:80B:C
- Light- to medium-duty anodized aluminum valve body, handle, and lever
- Durable high-gloss polyester powder paint designed for longevity
- Bilingual labels
Specifications
| Model | B456C |
|---|---|
| Item / Part No. | 15576 |
| UL Rating | 4A:80B:C |
| Capacity | 10 lb |
| Shipping Weight | 18 lb |
| Boxed Dimensions (H × W × D) | 22.13 × 5.5 × 6.25 in |
FSP · P-03
Submittal data
The same values print on the submittal sheet.
| Ratings and agent | |
|---|---|
| UL and ULC rating | 4A:80B:C |
| Capacity | 10 lb |
| Agent | ABC dry chemical |
| Agent chemical base | Mono ammonium phosphate, specially fluidized and siliconized |
| Discharge design | Hose & Nozzle |
| Discharge | |
|---|---|
| Discharge time | 22 seconds |
| Initial range | 15 to 21 ft |
| Nominal operating pressure | 195 PSIG |
| Construction | |
|---|---|
| Cylinder material | Drawn-steel |
| Finish | High-gloss polyester powder paint |
| Valve construction | All-metal |
| Valve material | Anodized aluminum valve body / Anodized aluminum handle & lever |
| Operating temperature range | −65°F to 120°F |
| Dimensions and weight | |
|---|---|
| Height | 20 in |
| Width | 7.75 in |
| Depth | 5 in |
| Cylinder diameter | 5 in |
| Shipping weight | 18 lb |
| Mounting and standards | |
|---|---|
| Included bracket | Wall |
| Optional brackets | 808, 809, 846, 889, 889HB, 895 |
| Tested to | CAN/ULC-S504 - UL 299 & CAN/ULC-S508 - UL 711 |
| Warranty | 6-Year manufacturer's warranty |
| Item | |
|---|---|
| Amerex item number | 15576 |
FSP · P-04
Documents
FSP · P-05
General notes
What is the UL rating of the Amerex B456C?
4A:80B:C.
How many pounds of dry chemical is in the Amerex B456C?
10 lb of ABC dry chemical - a specially fluidized and siliconized mono ammonium phosphate.
How long does the Amerex B456C discharge for?
22 seconds.
Is there a chrome version of the Amerex B456C?
Yes. The catalog marks OPTIONAL CHROME CYLINDER = Yes for this model.
How far does the Amerex B456C spray?
Initial range 15-21 ft.
What are the dimensions of the Amerex B456C?
Height 20 in., width 7.75 in., depth 5 in., on a 5 in. diameter cylinder.
How much does the Amerex B456C weigh?
18 lb shipping weight. Amerex notes that shipping weight includes the box.
What pressure does the Amerex B456C operate at?
195 PSIG nominal operating pressure. The parts book specifies 03103-P Gauge - 195 PSI for this model group.
Does the Amerex B456C have an aluminum or a brass valve?
Aluminum. The valve body, handle and lever are anodized aluminum. Amerex classes this valve as light to medium duty.
