- Model
- 15392
- UL rating
- 3A:40B:C
- Ship weight
- 14.0 lb
- H × W × D
- 16.25″ × 8.5″ × 5.0″

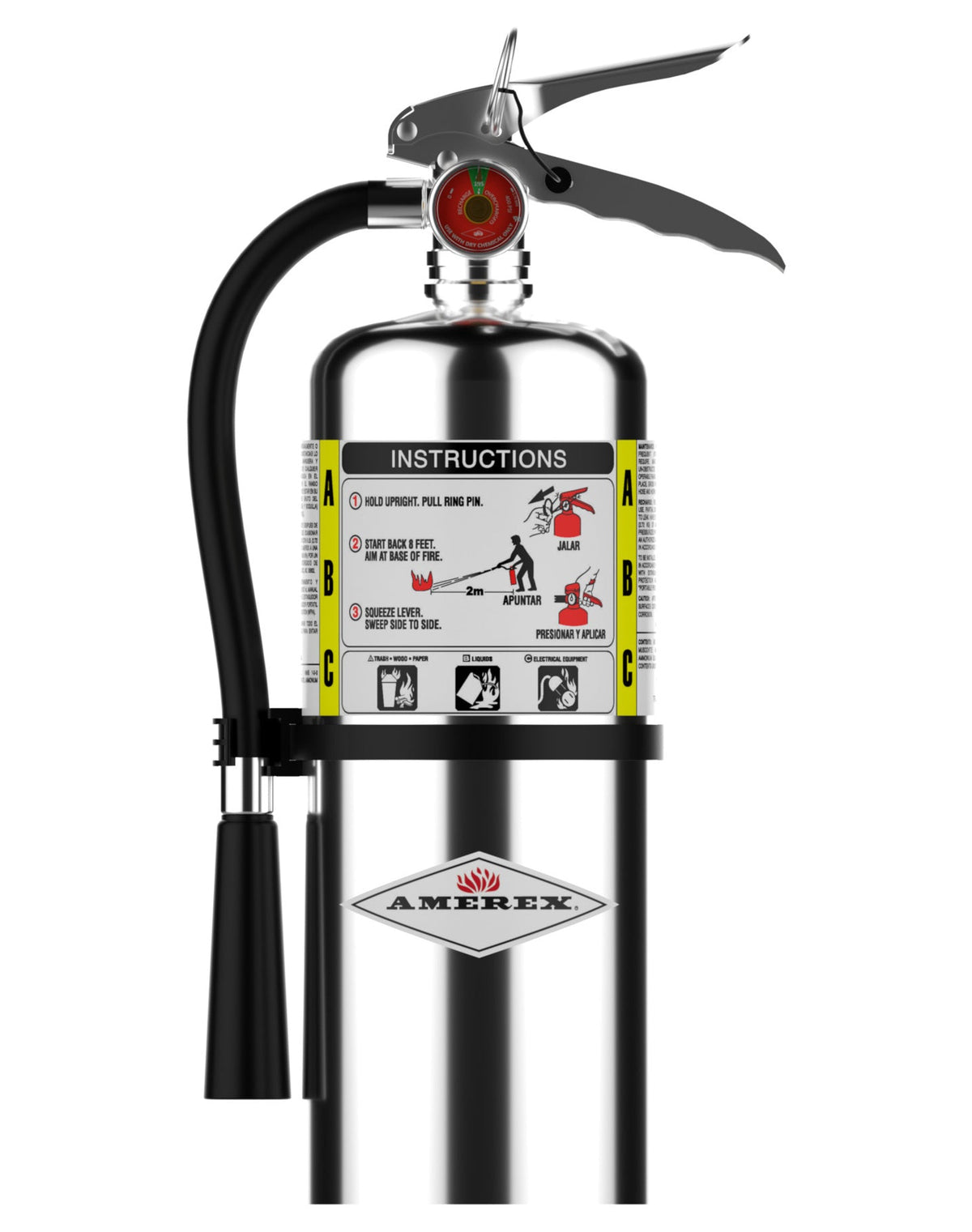

Amerex B461C 6 lb ABC Dry Chemical Fire Extinguisher - Chrome
FSP · P-02
What it is
Amerex B461C is a 6 lb ABC dry chemical fire extinguisher rated 3A:40B:C for ordinary combustibles, flammable liquids and gases, and live electrical equipment. Discharge runs 14 seconds with an initial range of 15 to 21 ft at 195 PSIG. The agent is a specially fluidized and siliconized mono ammonium phosphate that melts and coats the burning surface, insulating Class A fuel and breaking the chain reaction on Class B fires. The cylinder is drawn-steel with a chrome-plated brass valve body, stainless steel handle and lever. A wall bracket ships with the extinguisher. The operating temperature range is −65°F to 120°F.
Polished chrome cylinders belong in spaces where equipment is part of the decor, and the B461C puts a full 6 lb of ABC dry chemical behind that finish. It shares the 3A:40B:C rating and 18.94 inch height of the standard B461, so mounting and code coverage are unchanged. Amerex builds it for longevity with durable high gloss polyester powder paint, all-metal valve construction and chrome cylinders, plus a heavy duty chrome plated brass valve body with stainless steel handle and lever. On Class A fires the agent melts at approximately 350F to chemically insulate and coat the burning surface; on Class B fires it smothers the flame and breaks the chain reaction without conducting electricity back to the operator.
- Chrome cylinder finish with 6 lb ABC dry chemical charge
- UL rated 3A:40B:C for Class A, B and C hazards
- Heavy duty chrome plated brass valve body, stainless steel handle and lever
- All-metal valve construction and durable high gloss polyester powder paint
- Bilingual labels
Specifications
| Model | B461C |
|---|---|
| Item / Part No. | 15392 |
| UL Rating | 3A:40B:C |
| Capacity | 6 lb |
| Shipping Weight | 14 lb |
| Dimensions (H x W x D) | 18.94 in x 5.81 in x 7.44 in |
| Finish | Chrome cylinder |
| Valve | Chrome plated brass body, stainless steel handle and lever |
FSP · P-03
Submittal data
The same values print on the submittal sheet.
| Ratings and agent | |
|---|---|
| UL and ULC rating | 3A:40B:C |
| Capacity | 6 lb |
| Agent | ABC dry chemical |
| Agent chemical base | Mono ammonium phosphate, specially fluidized and siliconized |
| Discharge design | Hose & Nozzle |
| Discharge | |
|---|---|
| Discharge time | 14 seconds |
| Initial range | 15 to 21 ft |
| Nominal operating pressure | 195 PSIG |
| Construction | |
|---|---|
| Cylinder material | Drawn-steel |
| Finish | High-gloss polyester powder paint |
| Valve construction | All-metal |
| Valve material | Chrome-plated brass valve body / Stainless steel handle & lever |
| Operating temperature range | −65°F to 120°F |
| Dimensions and weight | |
|---|---|
| Height | 16.25 in |
| Width | 8.5 in |
| Depth | 5 in |
| Cylinder diameter | 5 in |
| Shipping weight | 14 lb |
| Mounting and standards | |
|---|---|
| Included bracket | Wall |
| Optional brackets | 808, 809, 846, 889, 895 |
| Tested to | CAN/ULC-S504 - UL 299 & CAN/ULC-S508 - UL 711 |
| Warranty | 6-Year manufacturer's warranty |
| Item | |
|---|---|
| Amerex item number | 15392 |
FSP · P-04
Documents
FSP · P-05
General notes
What is the UL rating of the Amerex B461C?
3A:40B:C.
How many pounds of dry chemical is in the Amerex B461C?
6 lb of ABC dry chemical - a specially fluidized and siliconized mono ammonium phosphate.
How long does the Amerex B461C discharge for?
14 seconds.
Is there a chrome version of the Amerex B461C?
Yes. The catalog marks OPTIONAL CHROME CYLINDER = Yes for this model.
How far does the Amerex B461C spray?
Initial range 15-21 ft.
What are the dimensions of the Amerex B461C?
Height 16.25 in., width 8.5 in., depth 5 in., on a 5 in. diameter cylinder.
How much does the Amerex B461C weigh?
14 lb shipping weight. Amerex notes that shipping weight includes the box.
What pressure does the Amerex B461C operate at?
195 PSIG nominal operating pressure. The parts book specifies 03965-P Gauge - 195 PSI for this model group.
Does the Amerex B461C have an aluminum or a brass valve?
Brass. The valve body is chrome-plated brass with a stainless steel handle and lever. Amerex classes this valve as heavy duty.
