- Model
- 15307
- UL rating
- 2A:10B:C
- Ship weight
- 9.3 lb
- H × W × D
- 15.25″ × 7.25″ × 4.25″

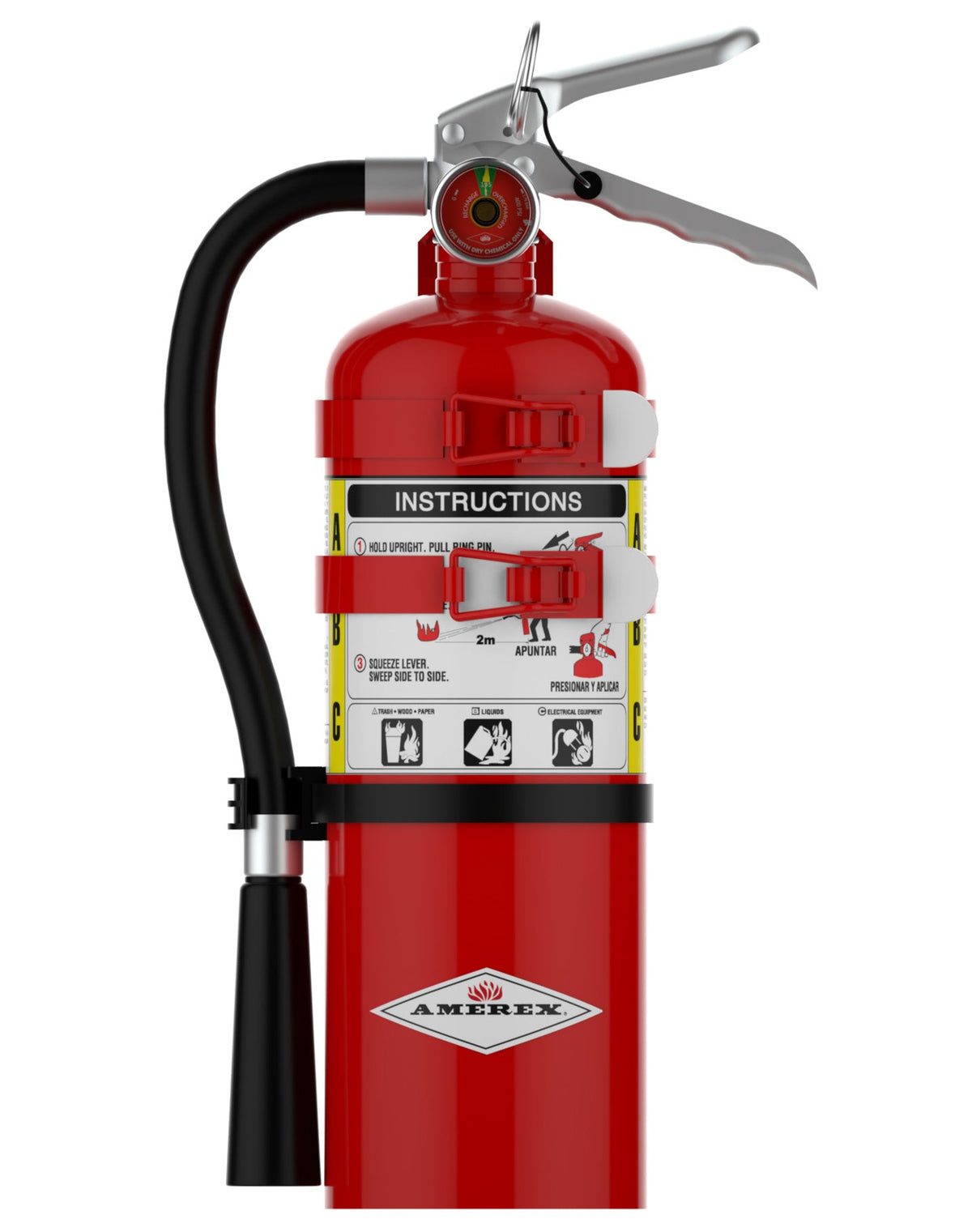

Amerex B500TS 5 lb ABC Dry Chemical Fire Extinguisher with 2-Strap Bracket
FSP · P-02
What it is
Amerex B500TS is a 5 lb ABC dry chemical fire extinguisher rated 2A:10B:C for ordinary combustibles, flammable liquids and gases, and live electrical equipment. Discharge runs 14 seconds with an initial range of 12 to 18 ft at 195 PSIG. The agent is a specially fluidized and siliconized mono ammonium phosphate that melts and coats the burning surface, insulating Class A fuel and breaking the chain reaction on Class B fires. The cylinder is drawn-steel with an anodized aluminum valve body, anodized aluminum handle and lever. A wall and vehicle bracket ships with the extinguisher. The operating temperature range is −65°F to 120°F.
Vibration is the enemy of every vehicle-mounted extinguisher, which is why the Amerex B500TS ships with a two-strap vehicle bracket. The 5 lb ABC unit is UL rated 2A:10B:C for ordinary combustibles such as cloth, paper, and wood (Class A), flammable liquids and gases (Class B), and live electrical equipment (Class C), and it operates from 12 to 18 feet away.
- Two-strap vehicle bracket included
- Rechargeable, with a 6-year warranty
- Easy-to-read pressure gauge and spray hose for accurate aim
- Large loop pull pin and illustrated P.A.S.S. label instructions
- Anodized aluminum valve body, handle, and lever with high-gloss polyester powder paint
Specifications
| Model | B500TS |
|---|---|
| Item / Part No. | 15307 |
| UL Rating | 2A:10B:C |
| Capacity | 5 lb |
| Shipping Weight | 9.3 lb |
| Boxed Dimensions (H × W × D) | 16.25 × 4.4 × 6.88 in |
| Effective Range | 12-18 ft |
FSP · P-03
Submittal data
The same values print on the submittal sheet.
| Ratings and agent | |
|---|---|
| UL and ULC rating | 2A:10B:C |
| Capacity | 5 lb |
| Agent | ABC dry chemical |
| Agent chemical base | Mono ammonium phosphate, specially fluidized and siliconized |
| Discharge design | Hose & Nozzle |
| Discharge | |
|---|---|
| Discharge time | 14 seconds |
| Initial range | 12 to 18 ft |
| Nominal operating pressure | 195 PSIG |
| Construction | |
|---|---|
| Cylinder material | Drawn-steel |
| Finish | High-gloss polyester powder paint |
| Valve construction | All-metal |
| Valve material | Anodized aluminum valve body / Anodized aluminum handle & lever |
| Operating temperature range | −65°F to 120°F |
| Dimensions and weight | |
|---|---|
| Height | 15.25 in |
| Width | 7.25 in |
| Depth | 4.25 in |
| Cylinder diameter | 4.25 in |
| Shipping weight | 9.25 lb (catalog) / 9.5 lb (price list) |
| Mounting and standards | |
|---|---|
| Included bracket | Wall and vehicle bracket |
| Optional brackets | 818S, 821, 821S, 807 |
| Tested to | CAN/ULC-S504 - UL 299 & CAN/ULC-S508 - UL 711 |
| Warranty | 6-Year manufacturer's warranty |
| Item | |
|---|---|
| Amerex item number | 15307 |
FSP · P-04
Documents
FSP · P-05
General notes
What is the UL rating of the Amerex B500TS?
2A:10B:C.
How many pounds of dry chemical is in the Amerex B500TS?
5 lb of ABC dry chemical - a specially fluidized and siliconized mono ammonium phosphate.
How long does the Amerex B500TS discharge for?
14 seconds.
Is there a chrome version of the Amerex B500TS?
Yes. The catalog marks OPTIONAL CHROME CYLINDER = Yes for this model.
How far does the Amerex B500TS spray?
Initial range 12-18 ft.
What are the dimensions of the Amerex B500TS?
Height 15.25 in., width 7.25 in., depth 4.25 in., on a 4.25 in. diameter cylinder.
How much does the Amerex B500TS weigh?
9.25/9.5 lb shipping weight. Amerex notes that shipping weight includes the box.
What pressure does the Amerex B500TS operate at?
195 PSIG nominal operating pressure. The parts book specifies 03103-P Gauge - 195 PSI for this model group.
Does the Amerex B500TS have an aluminum or a brass valve?
Aluminum. The valve body, handle and lever are anodized aluminum. Amerex classes this valve as light to medium duty.
