- Tub size
- 6-1/4" W x 7-1/4" H x 1-3/4" D
- Trim O.D.
- 7-1/2" W x 8-1/4" H x 2-1/4" D
- Ship weight
- 1.5 lb
22001C Cato 220 Series Fire Alarm Pull Station Cover, Recessed Mount, Pull to Open with gasket
FSP · P-02
What it is

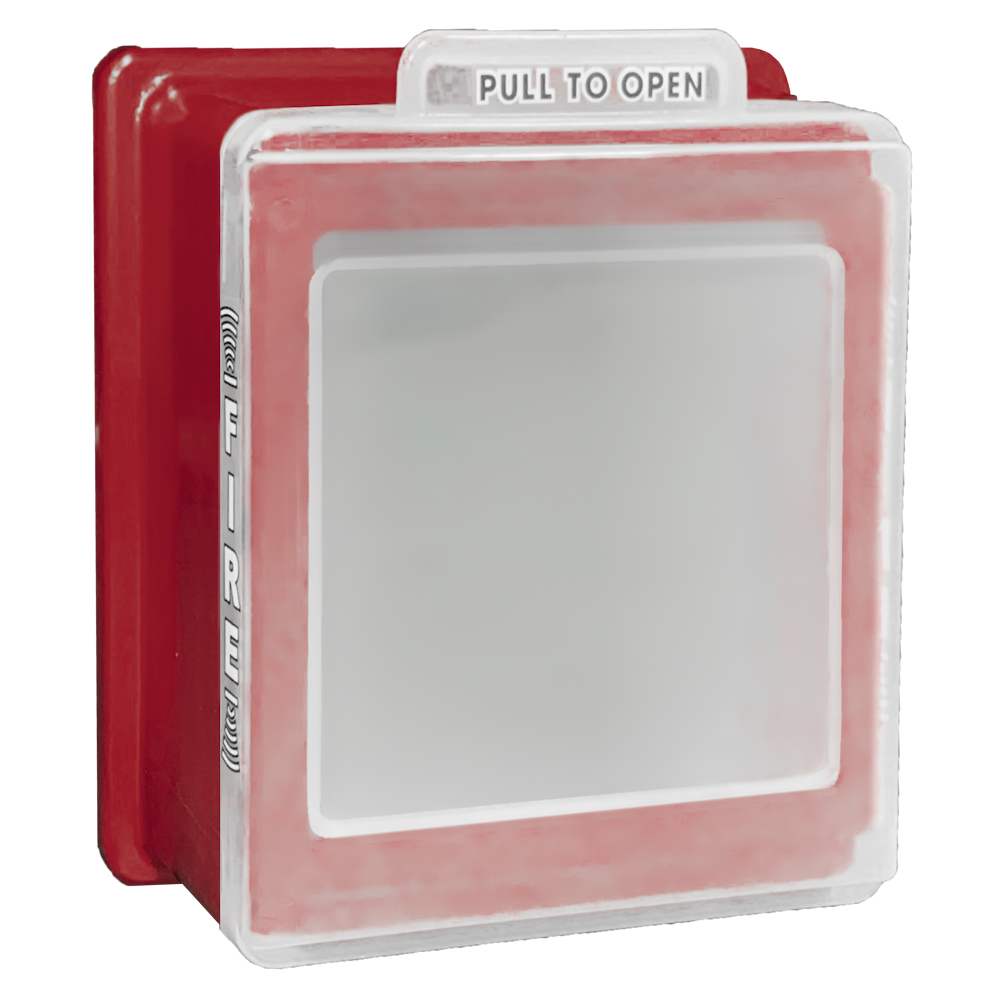

Cato ALC22001B, ordered as 22001C and previously catalogued as the 220-RX, is a protective cover for a recessed mounted fire alarm pull station, moulded in high density polypropylene in red. The opening method is pull to open, unsecured. The cover inside dimension is 6-1/4" W x 7-1/4" H x 1-3/4" D and the outside dimension is 7-1/2" W x 8-1/4" H x 2-1/4" D, at 1.5 lb. It arrives fully assembled with mounting hardware and anchors, and the pull handle at the top is designed to ADA specifications. A gasket is included.
The Cato ALC22001B, ordered as 22001C and previously catalogued as the 220-RX, is a protective cover for a recessed mounted fire alarm pull station. It is moulded in high density polypropylene in red, arrives fully assembled and installs quickly with the supplied hardware and anchors. The cover opens quickly in an emergency and stays open during inspection and maintenance.
- Cato model: ALC22001B
- Order number: 22001C
- Prior model: 220-RX
- Alarm mounting: recessed mounted alarm
- Opening method: Pull to open, unsecured
- Cover inside dimensions: 6-1/4" W x 7-1/4" H x 1-3/4" D
- Cover outside dimensions: 7-1/2" W x 8-1/4" H x 2-1/4" D
- Weight: 1.5 lb
- Body material: injection moulded high density polypropylene, red only
- Cover material: injection moulded copolymer polypropylene, clear only
- Handle: pull handle at the top, designed to ADA specifications
- Gasket: included
- Recessed mount detail: for an alarm mounted inside a wall cut-out
- Decals: UV resistant PULL TO OPEN and FIRE decals included
- Hardware: mounting hardware and anchors included
Use the recessed mount version where the pull station is set inside a wall cut-out. Ordering the wrong one is the usual mistake: the two are not interchangeable.
Sold and shipped by FireSafetyProducts.us, Raleigh NC, an authorized Cato distributor. Cato is a trademark of Activar Construction Products Group.
Activar warrants fire protection products other than extinguishers, including cabinets and alarm covers, free from defects in materials and workmanship for one year from date of shipment. Manufacturer warranty terms and conditions apply in all cases.
FSP · P-03
Submittal data
The same values print on the submittal sheet.
| Dimensions | |
|---|---|
| Tub, inside | 6-1/4" W x 7-1/4" H x 1-3/4" D |
| Ship weight | 1.5 lb |
| Construction and compliance | |
|---|---|
| ADA 4″ projection | No |
| Fire-rated wall | No |
FSP · P-04
Documents
FSP · P-05
General notes
Does the Cato ALC22001B fit a surface or a recessed pull station?
Recessed mount. Use it where the alarm sits inside a wall cut-out. The surface and recessed versions are not interchangeable.
How is the ALC22001B opened in an emergency?

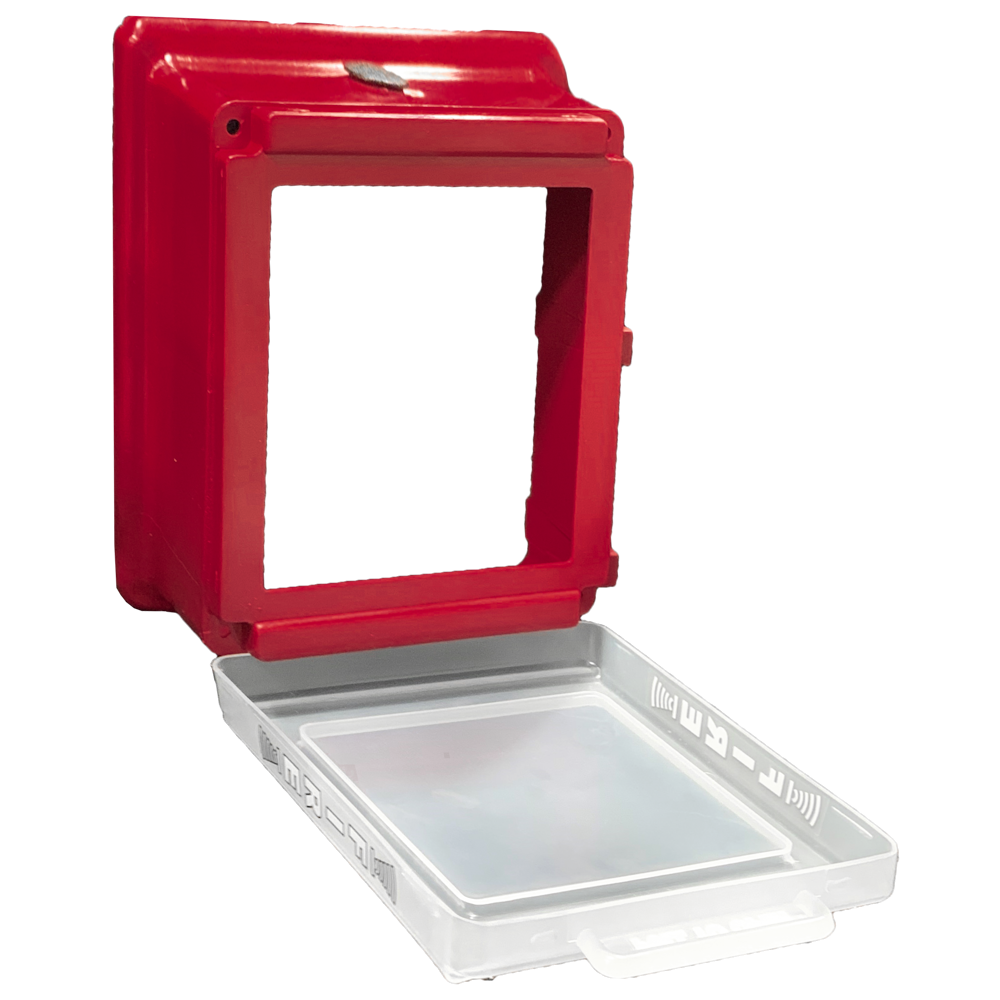

By hand. Pull the cover open. It stays open during inspection and maintenance, and closes again afterwards.
Is a gasket included?
Yes, this version includes the gasket.
What are the dimensions of the ALC22001B?
Inside 6-1/4" W x 7-1/4" H x 1-3/4" D, outside 7-1/2" W x 8-1/4" H x 2-1/4" D.
Does it come with mounting hardware?
Yes. Screws and nylon anchors are supplied, and the cover arrives fully assembled.
