- Tub size
- 6-1/4" W x 7-1/4" H x 1-3/4" D
- Trim O.D.
- 7-1/2" W x 8-1/4" H x 2-1/4" D
- Ship weight
- 1.5 lb

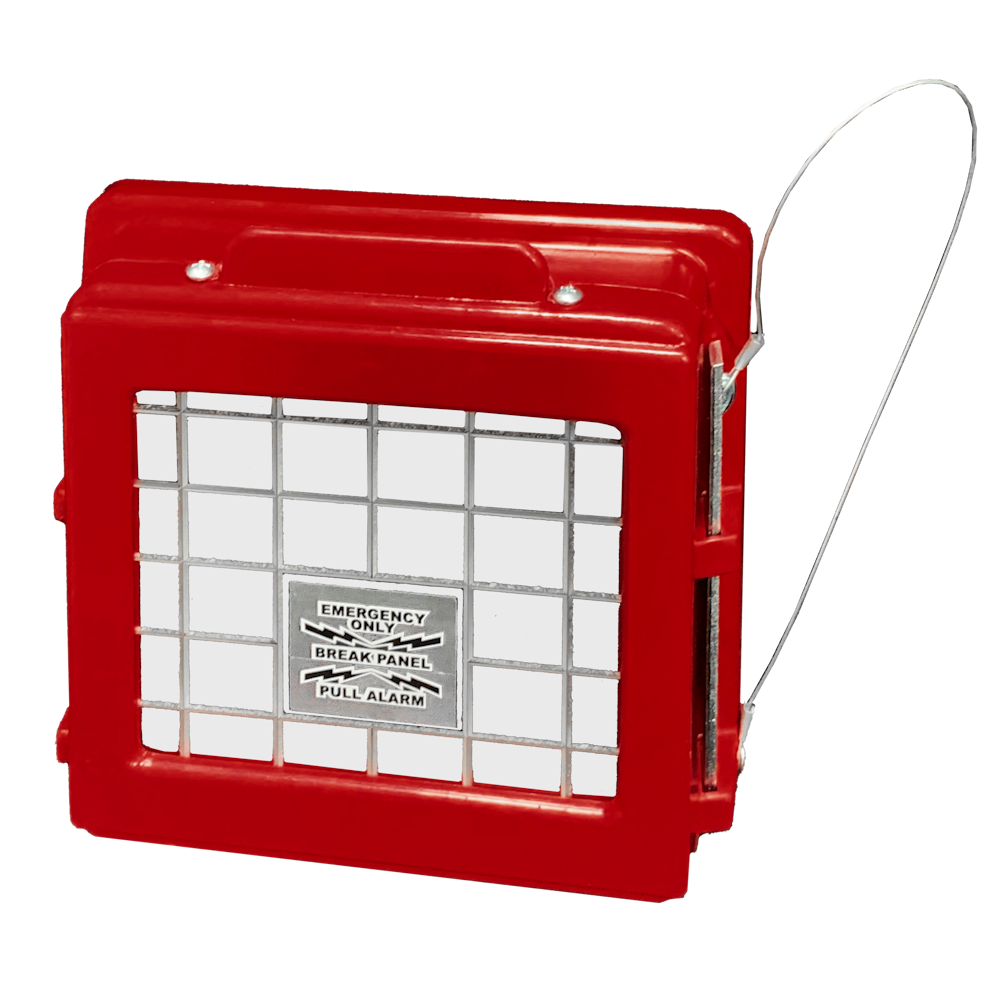

22002 Cato 220 Series Fire Alarm Pull Station Cover, Recessed Mount, Break Bar
FSP · P-02
What it is

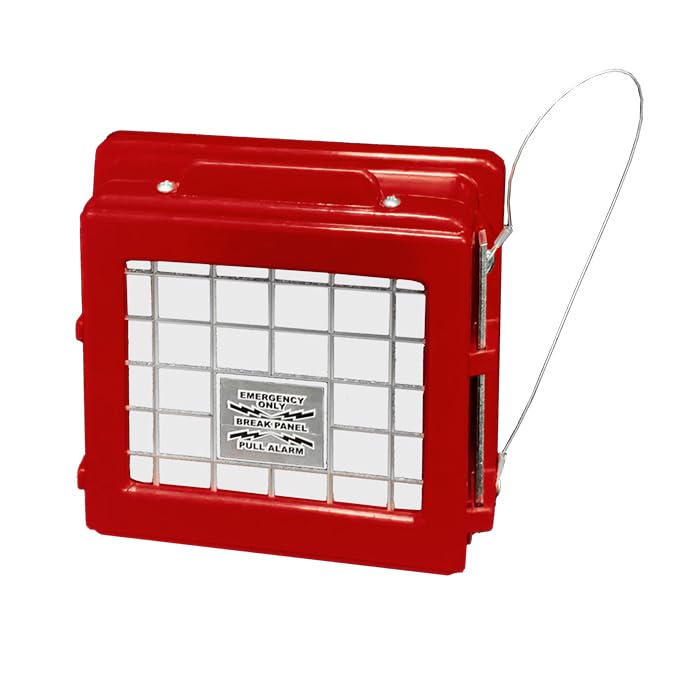

Cato ALC22002, ordered as 22002 and previously catalogued as the 220-RB, is a protective cover for a recessed mounted fire alarm pull station, moulded in high density polypropylene in red. The opening method is security break bar with scored acrylic panel. The cover inside dimension is 6-1/4" W x 7-1/4" H x 1-3/4" D and the outside dimension is 7-1/2" W x 8-1/4" H x 2-1/4" D, at 1.5 lb. It arrives fully assembled with mounting hardware and anchors, and the pull handle at the top is designed to ADA specifications. No gasket is fitted.
The Cato ALC22002, ordered as 22002 and previously catalogued as the 220-RB, is a protective cover for a recessed mounted fire alarm pull station. It is moulded in high density polypropylene in red, arrives fully assembled and installs quickly with the supplied hardware and anchors. The security cover is vandal resistant: the scored acrylic panel is broken with a galvanized steel break bar, and a side slot holds the bar when it is not in use.
- Cato model: ALC22002
- Order number: 22002
- Prior model: 220-RB
- Alarm mounting: recessed mounted alarm
- Opening method: Security break bar with scored acrylic panel
- Cover inside dimensions: 6-1/4" W x 7-1/4" H x 1-3/4" D
- Cover outside dimensions: 7-1/2" W x 8-1/4" H x 2-1/4" D
- Weight: 1.5 lb
- Body material: injection moulded high density polypropylene, red only
- Panel material: .080 acrylic, grid scored, clear only
- Break tool: galvanized steel break bar on a clear nylon coated stainless steel cable
- Handle: pull handle at the top, designed to ADA specifications
- Gasket: not included - order the gasketed version for a weather or wash-down seal
- Recessed mount detail: for an alarm mounted inside a wall cut-out
- Decals: UV resistant BREAK PANEL and FIRE decals included
- Hardware: mounting hardware and anchors included
Use the recessed mount version where the pull station is set inside a wall cut-out. Ordering the wrong one is the usual mistake: the two are not interchangeable.
Sold and shipped by FireSafetyProducts.us, Raleigh NC, an authorized Cato distributor. Cato is a trademark of Activar Construction Products Group.
Activar warrants fire protection products other than extinguishers, including cabinets and alarm covers, free from defects in materials and workmanship for one year from date of shipment. Manufacturer warranty terms and conditions apply in all cases.
FSP · P-03
Submittal data
The same values print on the submittal sheet.
| Dimensions | |
|---|---|
| Tub, inside | 6-1/4" W x 7-1/4" H x 1-3/4" D |
| Ship weight | 1.5 lb |
| Construction and compliance | |
|---|---|
| ADA 4″ projection | No |
| Fire-rated wall | No |
FSP · P-04
Documents
FSP · P-05
General notes
Does the Cato ALC22002 fit a surface or a recessed pull station?
Recessed mount. Use it where the alarm sits inside a wall cut-out. The surface and recessed versions are not interchangeable.
How is the ALC22002 opened in an emergency?
The scored acrylic panel is struck with the galvanized steel break bar supplied on a cable; a side slot stores the bar.
Is a gasket included?
No. If you need a weather or wash-down seal, order the gasketed version of this cover instead.
What are the dimensions of the ALC22002?
Inside 6-1/4" W x 7-1/4" H x 1-3/4" D, outside 7-1/2" W x 8-1/4" H x 2-1/4" D.
Does it come with mounting hardware?
Yes. Screws and nylon anchors are supplied, and the cover arrives fully assembled.
