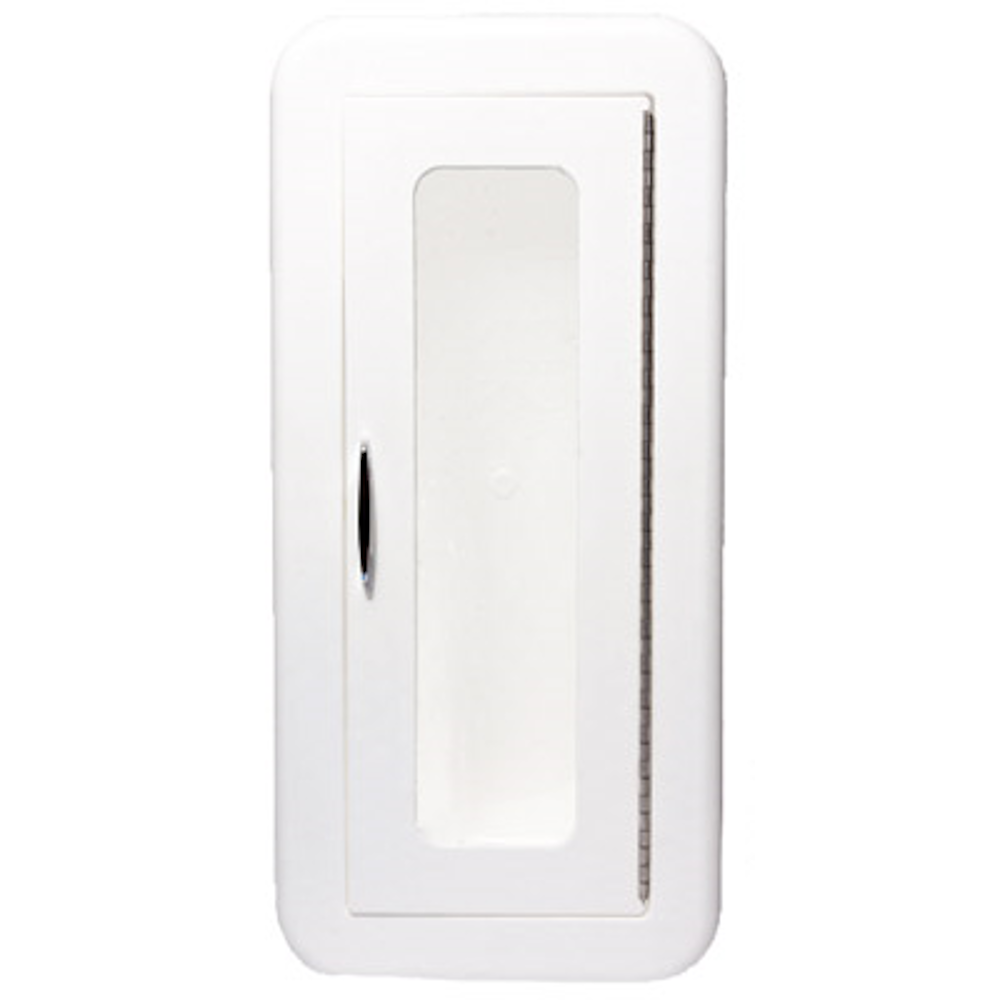

41001 Cato Chief Semi-Recessed 10 lb Plastic Fire Extinguisher Cabinet, ADA Projection

The Cato 41001, still widely called the 405-10, is the Chief Semi-Recessed plastic fire extinguisher cabinet. It sets into the wall and leaves only a 2-7/8 inch trim projection, which is inside the 4 inch limit the ADA standards put on objects protruding into a circulation path. That is the reason to choose it: a surface mount cabinet in a corridor often is not compliant, and this one is.

• Cato catalog numbers: 41001 plain, 41001L with the cylinder lock
• Prior catalog name: Classic Semi-Recess 405-10
• Trim projection: 2-7/8" rounded edge
• Tub inside dimensions: 8-1/2" W x 23-1/4" H x 5-5/8" D
• Trim outside dimensions: 13-3/8" W x 27-5/8" H, 2-7/8" projection
• Wall opening required: 10-1/2" W x 25" H x 4" D
• Door: 8-5/8" W x 23" H, hinged, with a viewable acrylic window and pull handle
• Cabinet weight: 5 lb
• Tub and trim material: injection moulded polypropylene in .15 thickness, white only
• Window: .080 acrylic, clear only
• Hardware: stainless steel hinge, glass clip, handle and roller catch
• Decals: red vertical FIRE EXTINGUISHER decal and a black vertical IN CASE OF EMERGENCY decal, both included
• Options: cylinder lock with flexible cam (41001L), fire extinguisher rust prevention tray (Cato 10300)
• Mounting: semi-recessed

Extinguishers this cabinet holds:

• JL Industries, listed by Cato on the submittal: Cosmic 2.5-10, Galaxy 2.5-10, Mercury 2.5-5, Sentinel 5.
• Strike First, by cylinder diameter and height: SF-ABC110ST 2-1/2 lb ABC; SF-ABC310 5 lb ABC; SF-ABC680 10 lb ABC; SF-5CO2 5 lb CO2.
• Amerex, by cylinder diameter and height: B417T and B417TS 2-1/2 lb ABC; B402 and B500 5 lb ABC; B424 5 lb ABC; B443 6 lb ABC; B461 6 lb ABC; B456 10 lb ABC; B441 10 lb ABC; 720 10 lb ABC high flow.

Cato's own figures are the tub inside dimensions above. The Strike First and Amerex models listed are the ones whose published cylinder diameter clears the tub width and depth and whose overall height clears the tub height; the published width of a portable extinguisher includes its hose and handle, which sit beside the cylinder. Units marked tight fit have less than 1/4 inch to spare, so measure the extinguisher you actually own before ordering.

Mounting height: Activar's method is to take the wall opening height and work back from the 48 inch handle limit. For this cabinet's 25 inch wall opening with a centred pull, that is 48" - (25" / 2) = 35-1/2" above the finished floor to the bottom of the opening.

Sold and shipped by FireSafetyProducts.us, Raleigh NC, an authorized Cato distributor. Cato is a trademark of Activar Construction Products Group.

Activar warrants fire protection products other than extinguishers, including cabinets and alarm covers, free from defects in materials and workmanship for one year from date of shipment. Manufacturer warranty terms and conditions apply in all cases.
