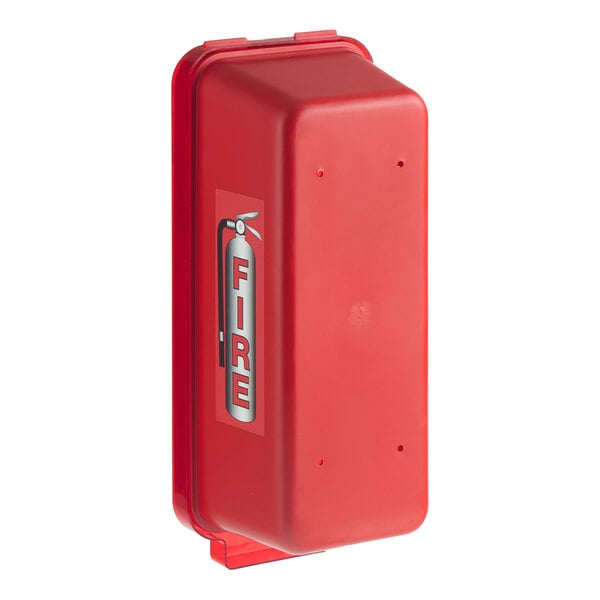

95552 Cato Warrior 5 lb Plastic Fire Extinguisher Cabinet, Red Tub / Red Cover

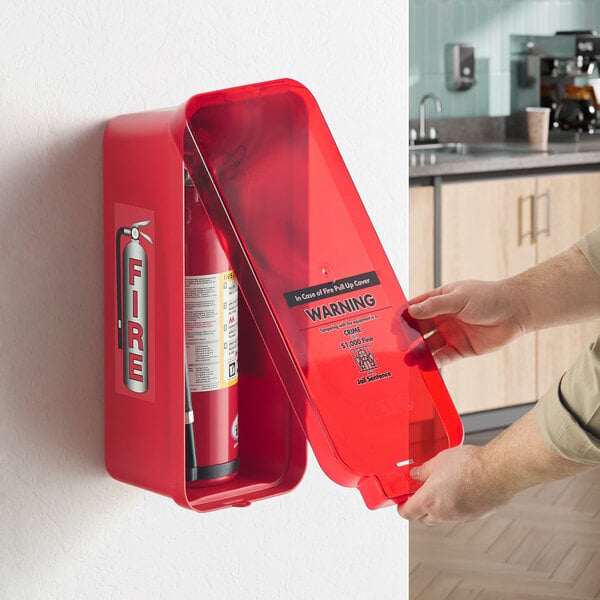

The Cato 95552 is the Warrior 5 lb plastic fire extinguisher cabinet with a red tub and a red cover. It is a two piece cabinet: a tub and a cover held together by a plastic locking seal, so no padlock is needed. To get the extinguisher out you pull up, the seal breaks and the cover comes off. Replacement seals are inexpensive, which is what makes the Warrior the cabinet of choice where tampering is common and a broken acrylic panel would be an expensive monthly habit.

• Cato catalog number: 95552
• Series and size: Warrior 95-5 (5 lb class)
• Colours: Red tub, Red cover
• Tub inside dimensions: 8" W x 19" H x 6-3/8" D
• Cover outside dimensions: 8-1/4" W x 20-1/2" H x 6-3/4" D
• Surface mount hole pattern: a = 2-3/4", b = 1-1/2", c = 3-1/2", d = 1/4", x = 3-1/2", y = 11"
• Cabinet weight: 5 lb
• Tub material: injection moulded high impact polystyrene in .110 thickness with ultra-violet inhibitors for UV resistance
• Cover material: .100 crystal polystyrene with a pull handle at the bottom and etched PULL lettering
• Hardware: plastic locking seal included, white only. No padlock required
• Decals: UV resistant FIRE and Crime Warning decals included
• Mounting: surface mount

Extinguishers this cabinet holds:

• JL Industries, listed by Cato on the submittal: Cosmic 2.5-5, Galaxy 2.5-5, Mercury 2.5.
• Strike First, by cylinder diameter and height: SF-ABC110ST 2-1/2 lb ABC; SF-ABC310 5 lb ABC; SF-5CO2 5 lb CO2.
• Amerex, by cylinder diameter and height: B417T and B417TS 2-1/2 lb ABC; B402 and B500 5 lb ABC; B424 5 lb ABC; B443 6 lb ABC; B461 6 lb ABC.

Cato's own figures are the tub inside dimensions above. The Strike First and Amerex models listed are the ones whose published cylinder diameter clears the tub width and depth and whose overall height clears the tub height; the published width of a portable extinguisher includes its hose and handle, which sit beside the cylinder. Units marked tight fit have less than 1/4 inch to spare, so measure the extinguisher you actually own before ordering.

Mounting: the ADA standards for operable parts put the cabinet handle no higher than 48 inches above the finished floor, and an object whose leading edge sits between 27 and 80 inches above the floor may not project more than 4 inches into a circulation path. A surface mounted cabinet in a corridor is the case to check. Cato's technical article on mounting height and projection is linked in the documents below.

Sold and shipped by FireSafetyProducts.us, Raleigh NC, an authorized Cato distributor. Cato is a trademark of Activar Construction Products Group.

Activar warrants fire protection products other than extinguishers, including cabinets and alarm covers, free from defects in materials and workmanship for one year from date of shipment. Manufacturer warranty terms and conditions apply in all cases.
