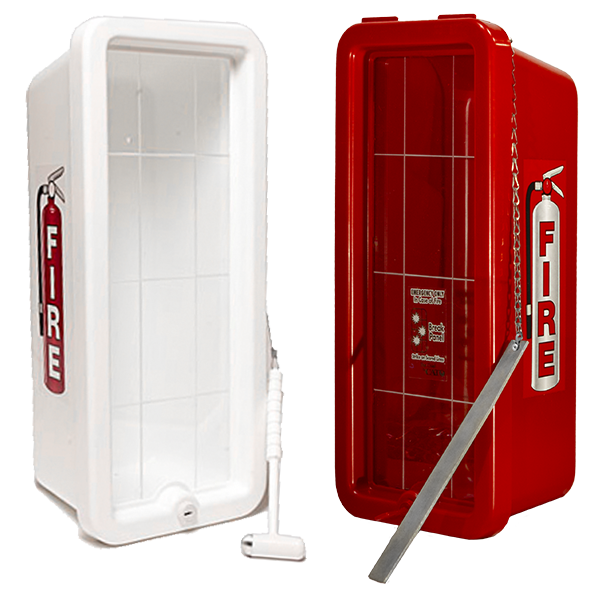

Cato Chief and Island Chief Replacement Trim and Lock Assembly
FSP · P-02
What it is
The trim frame is the front bezel that clamps the acrylic panel or pull panel to the tub, supplied with its ABS hexagonal lock. Order by cabinet size and colour. This is the part to replace when the frame is cracked or the lock is seized. Catalog numbers covered: 10505 (105-5 White Trim and Lock, 5 lb), 10555 (105-5 Red Trim and Lock, 5 lb), 11005 (105-10 White Trim and Lock, 10 lb), 11055 (105-10 Red Trim and Lock, 10 lb), 12005 (105-20 White Trim and Lock, 20 lb), 12055 (105-20 Red Trim and Lock, 20 lb).
The trim frame is the front bezel that clamps the acrylic panel or pull panel to the tub, supplied with its ABS hexagonal lock. Order by cabinet size and colour. This is the part to replace when the frame is cracked or the lock is seized.
Cato catalog numbers covered by this listing:
- 10505 - 105-5 White Trim and Lock, 5 lb
- 10555 - 105-5 Red Trim and Lock, 5 lb
- 11005 - 105-10 White Trim and Lock, 10 lb
- 11055 - 105-10 Red Trim and Lock, 10 lb
- 12005 - 105-20 White Trim and Lock, 20 lb
- 12055 - 105-20 Red Trim and Lock, 20 lb
Parts are ordered by Cato catalog number. If you are not sure which one you need, the model number is moulded or printed on the cabinet, and the submittal drawing linked below lists every part against its cabinet.
Sold and shipped by FireSafetyProducts.us, Raleigh NC, an authorized Cato distributor. Cato is a trademark of Activar Construction Products Group.
Activar warrants fire protection products other than extinguishers, including cabinets and alarm covers, free from defects in materials and workmanship for one year from date of shipment. Manufacturer warranty terms and conditions apply in all cases.
FSP · P-03
Submittal data
The same values print on the submittal sheet.
| Part | |
|---|---|
| Series | Cato Chief |
| Type | Genuine Cato replacement part |
| Ordered by | Cato catalog number |
| Catalog numbers | |
|---|---|
| 10505 | 105-5 White Trim and Lock, 5 lb |
| 10555 | 105-5 Red Trim and Lock, 5 lb |
| 11005 | 105-10 White Trim and Lock, 10 lb |
| 11055 | 105-10 Red Trim and Lock, 10 lb |
| 12005 | 105-20 White Trim and Lock, 20 lb |
| 12055 | 105-20 Red Trim and Lock, 20 lb |
| Standards | |
|---|---|
| Warranty | One year from date of shipment |
| Origin | Made in the USA |
FSP · P-04
Documents
FSP · P-05
General notes
How do I work out which part number I need?
Match the cabinet model number, which is moulded or printed on the cabinet, against the replacement parts table in the submittal drawing linked below. Part numbers are tied to cabinet size and colour.
Are these genuine Cato parts?
Yes. These are Activar's own Cato parts, ordered against Cato catalog numbers.
Do the colours have to match?
The trim, hammer and lock colours are normally matched to each other rather than to the tub. Cato's own convention is that the hammer and hex key match the trim colour.
Is there a warranty on parts?
Activar warrants fire protection products other than extinguishers for one year from date of shipment against defects in materials and workmanship.
