JL Industries 1555 Clear Vu Recessed Fire Extinguisher Cabinet, Flat Trim Trim, Brass

The JL Industries 1555 is a Clear Vu series fully recessed fire extinguisher cabinet in brass with flat trim trim, built around a 10-1/2" x 24" x 4" tub. Clear Vu is the acrylic bubble cabinet for one or two fire extinguishers. The acrylic bubble allows 180-degree extinguisher visibility and projects 2-1/2" on the 1500 Series and 3-1/2" on the 2500 and 4500 Series. Trim and door are offered in five materials - cold rolled steel, 304 stainless steel, aluminum, bronze or brass - with white powder coat, #4 stainless, clear anodized aluminum, US10 satin bronze or US3 polished brass finishes. The tub is white powder coated cold rolled steel, matching the trim material on surface mount cabinets, and the extinguisher must be mounted to the back of the tub with a J-hook.

Fits: Cosmic 2.5 lb - 10 lb, Galaxy 2.5 lb - 10 lb, Mercury 2.5 lb - 5 lb, Sentinel 5 lb (extinguisher mounts on the back of the tub).

Configure this cabinet

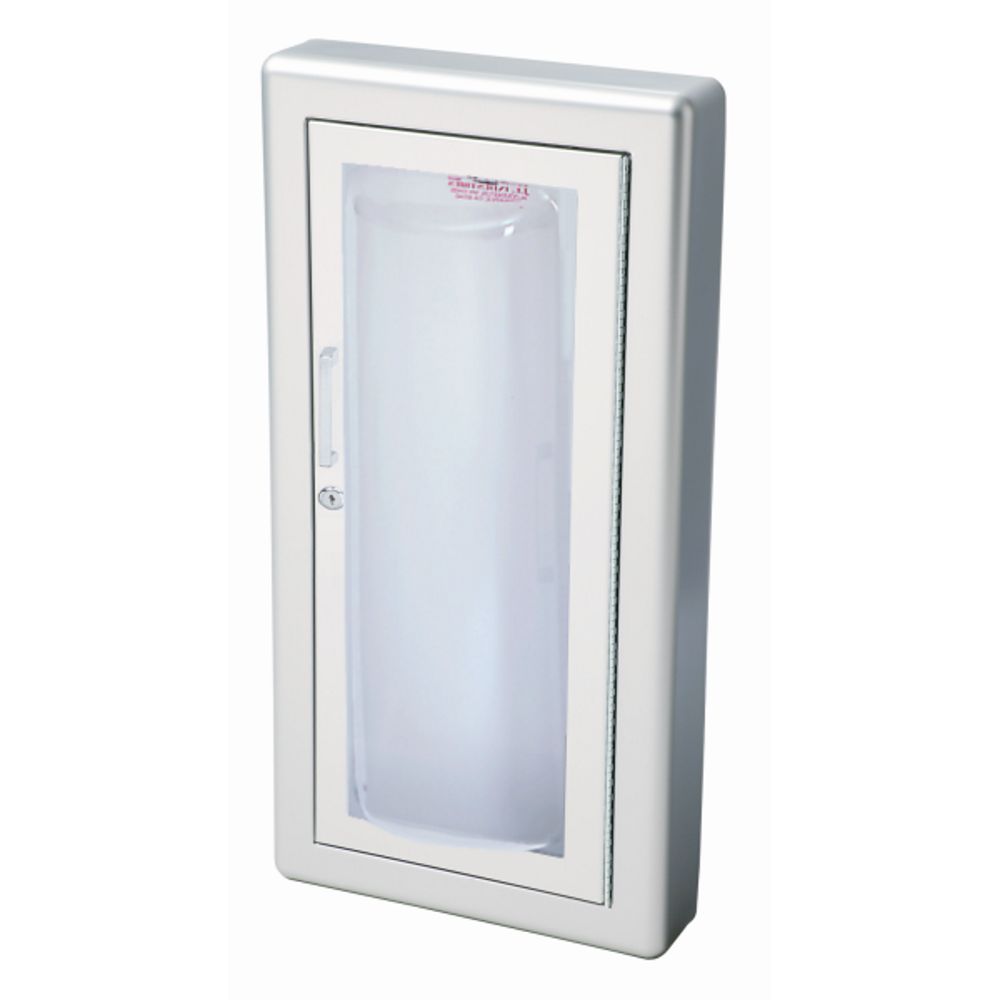

Door style: Acrylic Bubble, Acrylic Bubble + Saf-T-Lok. Saf-T-Lok (SL-LC) is the standard lock for most locking cabinets: a theft-deterrent keyed cylinder lock used instead of a break glass lock lever, since breaking glass in a panic can injure people and create liability. The door appears locked and is, but a sharp pull breaks or bends a replaceable plastic cam and opens it. The cam is 1-5/8" x 1" x 3/32" and is replaced with a Phillips head screwdriver.

Glazing: Clear Vu uses acrylic bubbles: 25 clear, 26 red and 27 bronze, with the red bubble available only on 15xx bubble cabinets.

Pull / handle: Pull handles are 4" CTC in finishes matching the cabinet material, with a standard zinc pull (PUS); a recessed flush pull is available on request.

Colored powder-coat finishes, magnetic catches, decorative bronze or brass pulls, Futura cast handles, wired glass and alarms are available on request — ask for a quote with your model number.

Dimensions

• Tub (inside): 10-1/2" x 24" x 4" (W x H x D)
• Trim / frame outside: 13-7/8" x 27-3/8"
• Wall opening: 11-1/2" x 25"
• Wall depth required: 3-7/8"
• Trim: Flat Trim
• Approx. ship weight: 12 lb

ADA Standards for protruding objects specify that objects projecting from walls with leading edges between 27" and 80" above the finished floor shall protrude no more than 4" into walkways. The ADA also states the cabinet handle cannot be mounted higher than 48" AFF where only a forward approach in a wheelchair is possible. Trimless, 3/8" flat, 2-1/4" and 1-1/2" square, 3" rolled and 4" rolled trims meet the 4" rule; 4-1/2" rolled and surface mount do not.

Fire-rated wall? Order the Fire-FX2 version, model 1555FX2, which carries the same door, glazing and pull options.

Availability: built to order by JL Industries to the configuration you select. Ask us for the current lead time before you schedule an install.

Model number key: tub 15 = 10-1/2" x 24" x 4"; material Brass; trim Fully Recessed 3/8" Flat Trim, Square Edge. All fire protection products carry a one year warranty after the date of shipment against defects in materials and workmanship, and the manufacturer will replace or repair any product found defective within this period at its discretion. No other warranty expressed or implied is valid; fire extinguishers may carry a longer warranty and manufacturer's warranty terms and conditions apply in all cases.
