JL Industries 2033 Cosmopolitan Surface-Mounted Fire Extinguisher Cabinet, Stainless Steel

The JL Industries 2033 is a Cosmopolitan series surface-mounted fire extinguisher cabinet in stainless steel, built around a 12" x 27" x 7-3/4" tub. The Cosmopolitan is the stainless steel cabinet in the architectural series. Trim and door are 304 stainless steel with a #4 satin finish; the tub is white powder coated cold rolled steel, and surface mount models have 304 stainless sides and back. Specifiers choose it for corridors, kitchens, laboratories and other areas where a cleanable, corrosion-resistant surface is required or where stainless hardware is already the standard. #6, #7 and #8 stainless finishes are available as options. Cosmopolitan shares the Ambassador and Academy tub sizes, trim projections, door styles and glazing choices, and is available with the Fire-FX2 option up to 2 hours.

Fits: Cosmic and Galaxy (20 lb mounts to back of tub), Mercury 2.5 lb - 15 lb (15.5 lb mounts to tub), Sentinel 5 lb - 15 lb (10 lb mounts to tub), Grenadier, Saturn and Nebula 270 (mount to tub).

Configure this cabinet

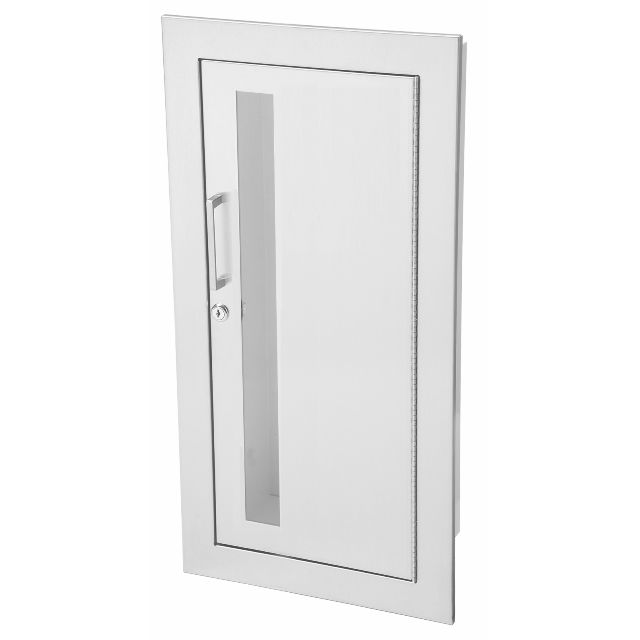

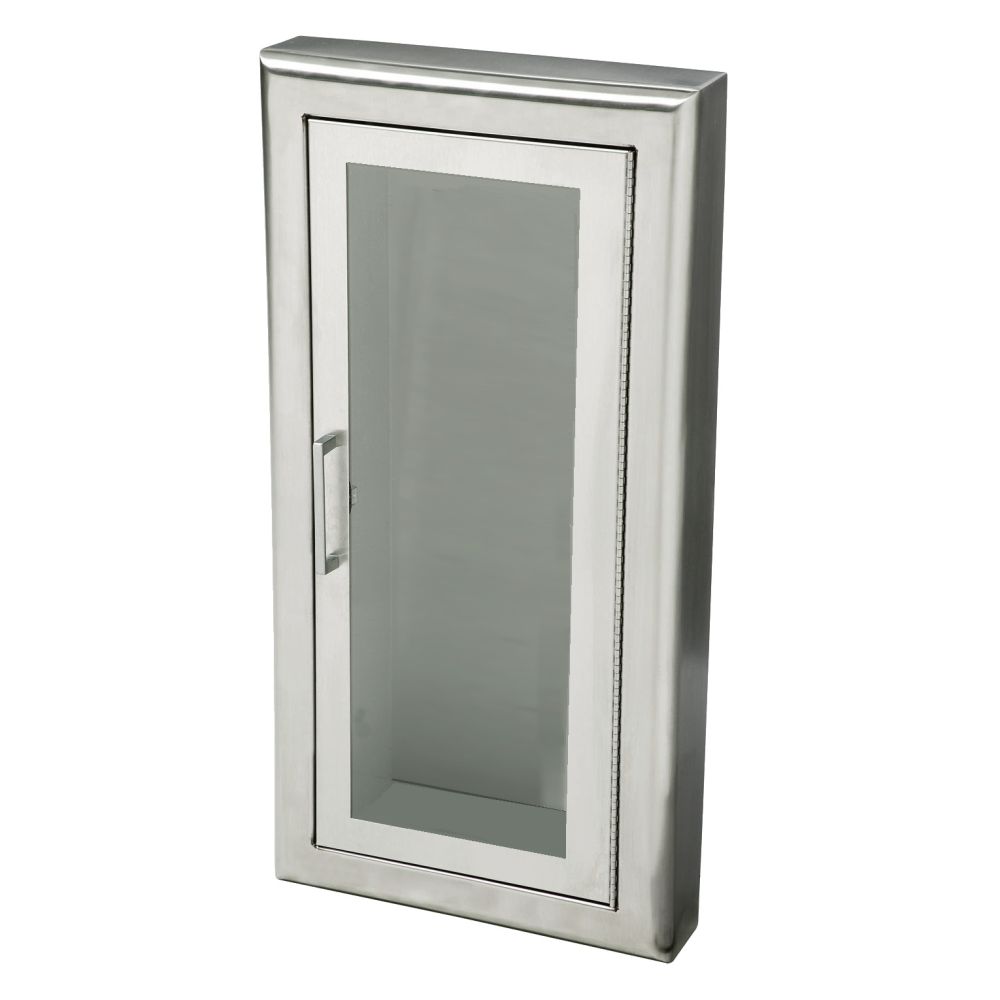

Door style: Full Glass, Full Glass + Saf-T-Lok, Vertical Duo, Vertical Duo + Saf-T-Lok, Horizontal Duo, Horizontal Duo + Saf-T-Lok, Solid Door, Solid Door + Saf-T-Lok, Panorama Clear Polycarbonate, Panorama Clear Polycarbonate + Saf-T-Lok, Panorama Colored Acrylic, Panorama Colored Acrylic + Saf-T-Lok. Saf-T-Lok (SL-LC) is the standard lock for most locking cabinets: a theft-deterrent keyed cylinder lock used instead of a break glass lock lever, since breaking glass in a panic can injure people and create liability. The door appears locked and is, but a sharp pull breaks or bends a replaceable plastic cam and opens it. The cam is 1-5/8" x 1" x 3/32" and is replaced with a Phillips head screwdriver.

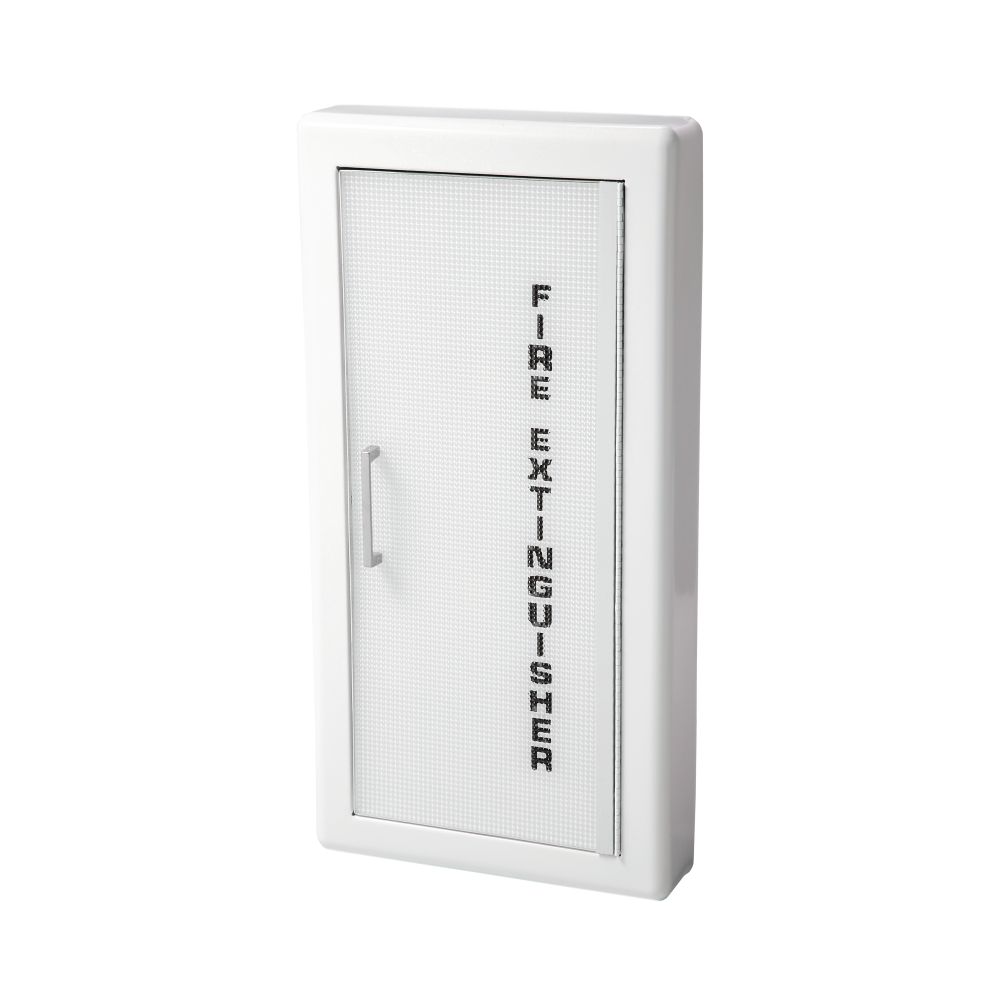

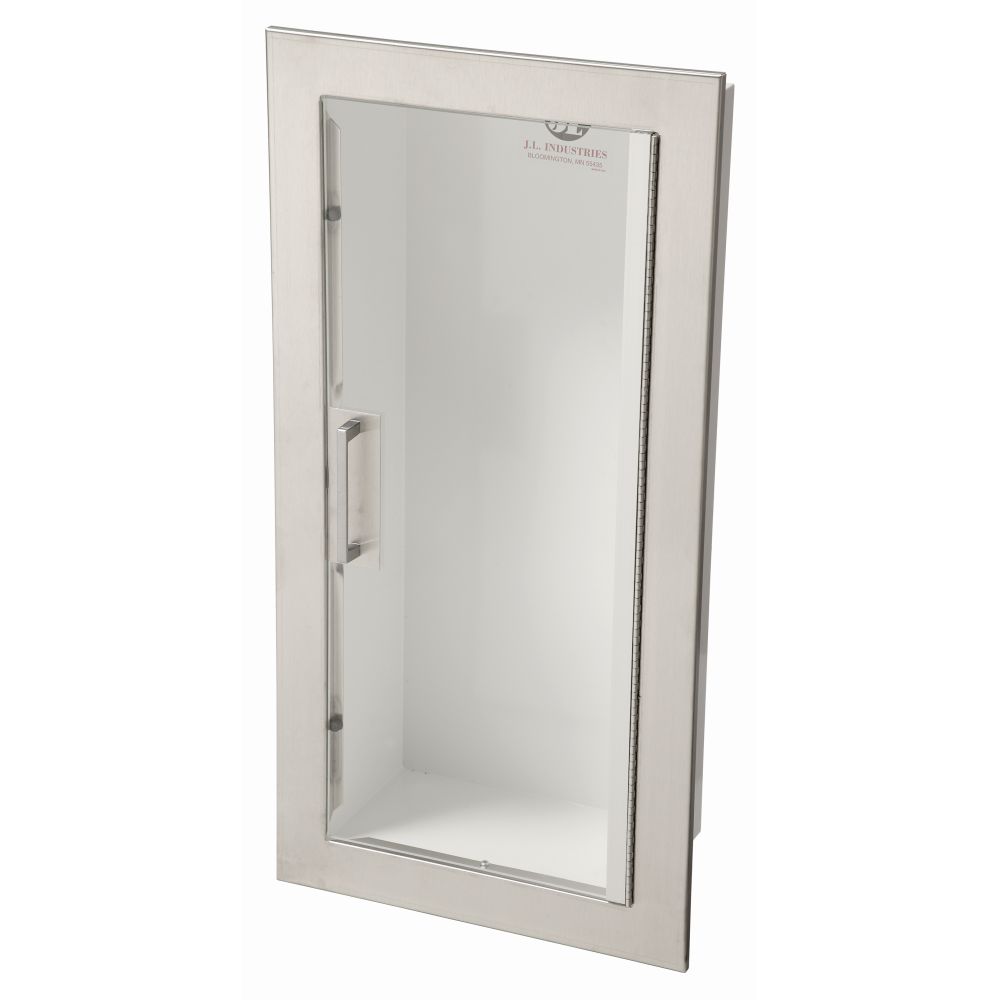

Glazing: Glazing 10 is 0.090" clear acrylic, the standard clear glazing. Glazing 15 is 1/8" bronze acrylic, for a tinted door. Glazing 16 is 1/8" gray acrylic, a neutral tint. Glazing 17 is 1/8" clear tempered glass. Glazing 18 is 1/4" clear safety glass, shown in the catalog as laminated safety. Panorama door style C uses 70 clear polycarbonate and 71 3/16" clear polycarbonate with Saf-T-Lok, while Panorama door styles P and Q use 3/16" acrylic in codes 40-53, covering black, red or white acrylic with white, black or red letters in vertical (40-43), horizontal (45-48) or ascending (50-53) orientation.

Pull / handle: Pull handles are 4" CTC in finishes matching the cabinet material, with a standard zinc pull (PUS) on most cabinets. The flush recessed pull (PRH, model suffix A) is a plastic cup-type handle, standard on all 4" trim cabinets and optional elsewhere; on a vertical duo door it moves the window to the right. The chrome lever handle (LH) is optional on cabinets without Saf-T-Lok.

Colored powder-coat finishes, magnetic catches, decorative bronze or brass pulls, Futura cast handles, wired glass and alarms are available on request — ask for a quote with your model number.

Dimensions

• Tub (inside): 12" x 27" x 7-3/4" (W x H x D)
• Overall size: 15-3/16" W x 30-3/16" H x 8" D
• Trim / frame outside: 15-3/8" x 30-3/8"
• Approx. ship weight: 28 lb

Construction

• Tub Material: 20 gauge stainless steel
• Trim Material & Style: 20 gauge stainless steel, surface mount square edge
• Door Material & Style: 20 gauge stainless steel, full view
• Hinge: Continuous hinge opens door 180 degrees, 20 gauge stainless steel
• Hardware: Zinc plated pull handle, roller catch, glass clips & screws Mounting Pattern: ¼" holes, 10-3/16" x 25-3/16"
• Finish: #4 satin door, trim, and tub

From the JL Industries submittal for C2033F10; door and glazing details vary by the options selected.

Availability: built to order by JL Industries to the configuration you select. Ask us for the current lead time before you schedule an install.

Model number key: tub 20 = 12" x 27" x 7-3/4"; material Stainless Steel; trim Surface Mount, Square Edge. All fire protection products carry a one year warranty after the date of shipment against defects in materials and workmanship, and the manufacturer will replace or repair any product found defective within this period at its discretion. No other warranty expressed or implied is valid; fire extinguishers may carry a longer warranty and manufacturer's warranty terms and conditions apply in all cases.
