JL Industries 3036FX2 Cosmopolitan Fire-Rated (Fire-FX2) Semi-Recessed Fire Extinguisher Cabinet, 1 1/2" Square Trim, Stainless Steel

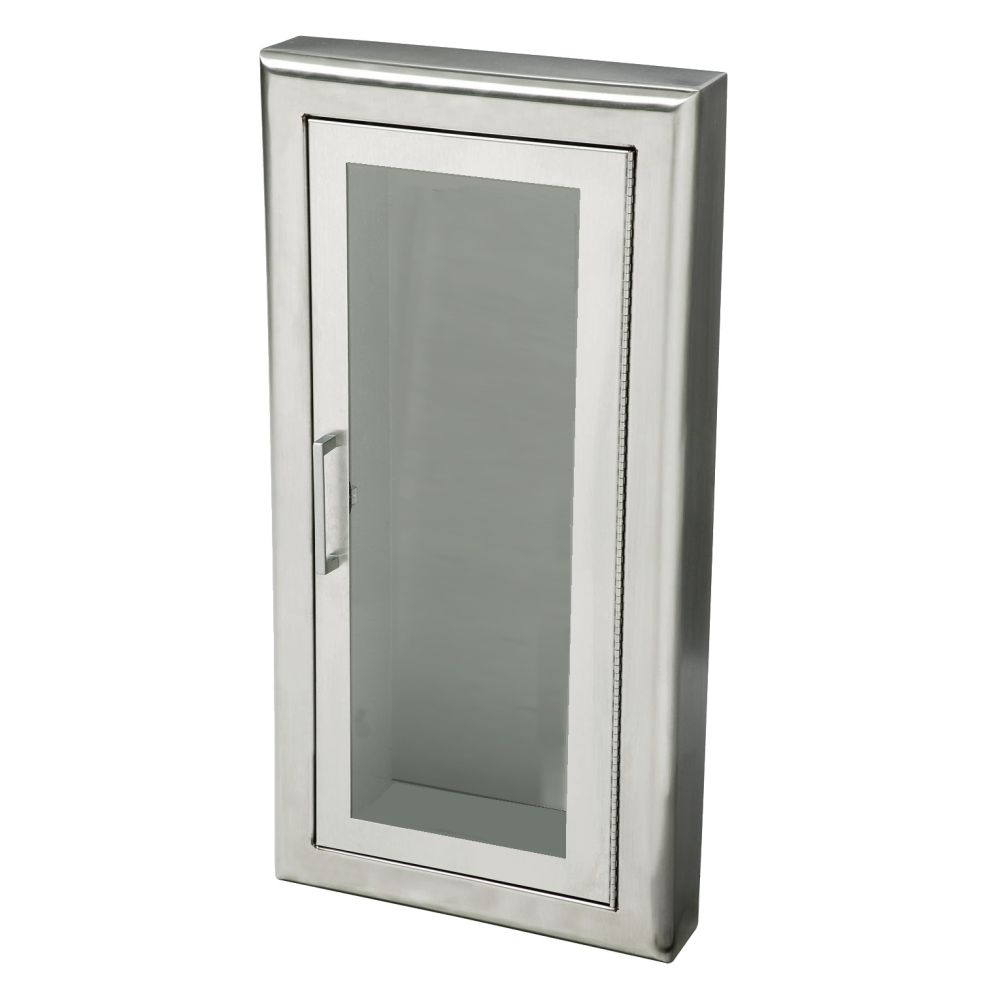

The JL Industries 3036FX2 is a Cosmopolitan series semi-recessed fire extinguisher cabinet in stainless steel with 1 1/2" square trim, built around a 16" x 32" x 7-3/4" tub. It is the Fire-FX2 fire-rated version, supplied with the fire-rated tub and flange so the cabinet can be recessed into a rated wall assembly. The Cosmopolitan is the stainless steel cabinet in the architectural series. Trim and door are 304 stainless steel with a #4 satin finish; the tub is white powder coated cold rolled steel, and surface mount models have 304 stainless sides and back. Specifiers choose it for corridors, kitchens, laboratories and other areas where a cleanable, corrosion-resistant surface is required or where stainless hardware is already the standard. #6, #7 and #8 stainless finishes are available as options. Cosmopolitan shares the Ambassador and Academy tub sizes, trim projections, door styles and glazing choices, and is available with the Fire-FX2 option up to 2 hours.

Fits: Any Cosmic or Galaxy (20 lb mounts to back of tub), any Mercury, any Saturn, Grenadier, Sentinel 5 lb - 15 lb, Nebula 250, 270, 272.

Configure this cabinet

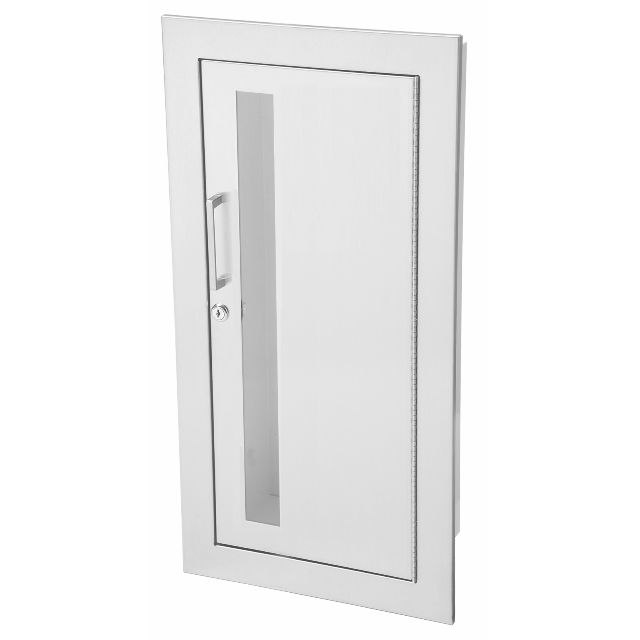

Door style: Full Glass, Full Glass + Saf-T-Lok, Vertical Duo, Vertical Duo + Saf-T-Lok, Horizontal Duo, Horizontal Duo + Saf-T-Lok, Solid Door, Solid Door + Saf-T-Lok, Panorama Clear Polycarbonate, Panorama Clear Polycarbonate + Saf-T-Lok, Panorama Colored Acrylic, Panorama Colored Acrylic + Saf-T-Lok. Saf-T-Lok (SL-LC) is the standard lock for most locking cabinets: a theft-deterrent keyed cylinder lock used instead of a break glass lock lever, since breaking glass in a panic can injure people and create liability. The door appears locked and is, but a sharp pull breaks or bends a replaceable plastic cam and opens it. The cam is 1-5/8" x 1" x 3/32" and is replaced with a Phillips head screwdriver.

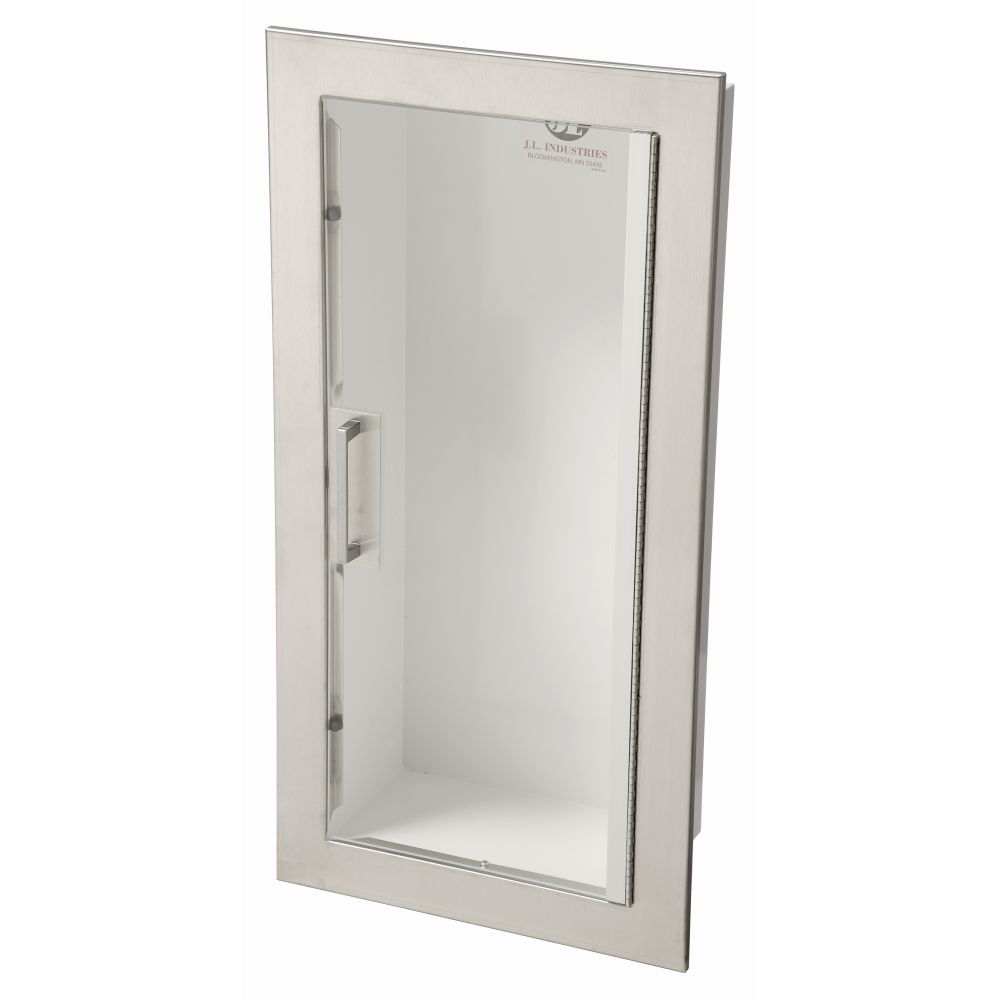

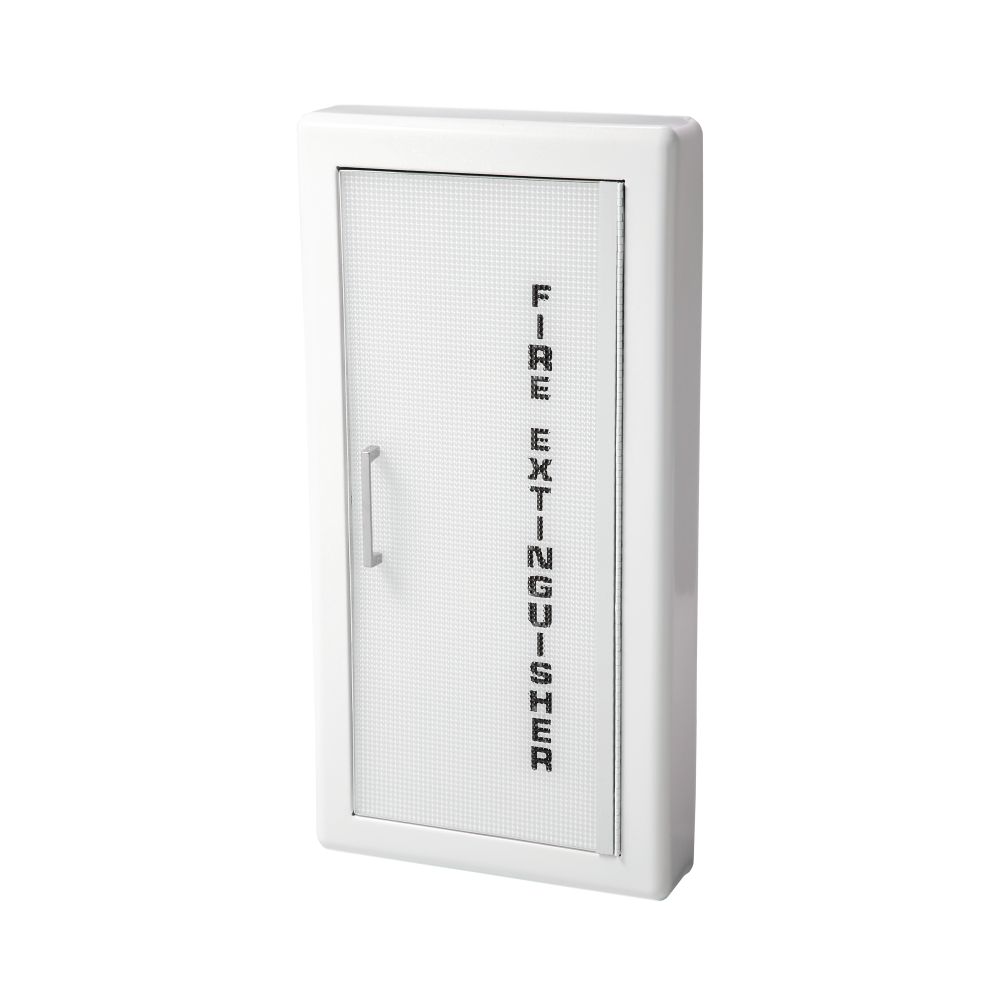

Glazing: Glazing 10 is 0.090" clear acrylic, the standard clear glazing. Glazing 15 is 1/8" bronze acrylic, for a tinted door. Glazing 16 is 1/8" gray acrylic, a neutral tint. Glazing 17 is 1/8" clear tempered glass. Glazing 18 is 1/4" clear safety glass, shown in the catalog as laminated safety. Panorama door style C uses 70 clear polycarbonate and 71 3/16" clear polycarbonate with Saf-T-Lok, while Panorama door styles P and Q use 3/16" acrylic in codes 40-53, covering black, red or white acrylic with white, black or red letters in vertical (40-43), horizontal (45-48) or ascending (50-53) orientation.

Pull / handle: Pull handles are 4" CTC in finishes matching the cabinet material, with a standard zinc pull (PUS) on most cabinets. The flush recessed pull (PRH, model suffix A) is a plastic cup-type handle, standard on all 4" trim cabinets and optional elsewhere; on a vertical duo door it moves the window to the right. The chrome lever handle (LH) is optional on cabinets without Saf-T-Lok.

Colored powder-coat finishes, magnetic catches, decorative bronze or brass pulls, Futura cast handles, wired glass and alarms are available on request — ask for a quote with your model number.

Dimensions

• Tub (inside): 16" x 32" x 7-3/4" (W x H x D)
• Trim / frame outside: 19-3/8" x 35-3/8"
• Wall opening: 18-5/16" x 34-5/16" (fire-rated)
• Wall depth required: 7-11/16"
• Trim: 1 1/2" Square
• Approx. ship weight: 43 lb

ADA Standards for protruding objects specify that objects projecting from walls with leading edges between 27" and 80" above the finished floor shall protrude no more than 4" into walkways. The ADA also states the cabinet handle cannot be mounted higher than 48" AFF where only a forward approach in a wheelchair is possible. Trimless, 3/8" flat, 2-1/4" and 1-1/2" square, 3" rolled and 4" rolled trims meet the 4" rule; 4-1/2" rolled and surface mount do not.

Fire-FX2 fire rating

Fire-FX2 is the fire-rated cabinet option, ordered by adding the FX2 suffix to the model number. JL Industries led the industry by introducing the first pre-lined fire-rated cabinets in 1991, and in 2015 eliminated the heavy gypsum wallboard used to line cabinets, replacing it with lightweight mineral wool insulation. The cabinets are UL tested to maintain one and two-hour fire rated wall barriers, in accordance with ANSI/UL-1479 (ASTM E814 and ULC.CAN S115) for membrane penetration firestops. That matters because cutting a cabinet opening into a rated wall is a membrane penetration. Fire-rated construction changes the rough opening, shown in brackets in every series table, and knockouts are not available on fire-rated cabinets.

Not in a rated wall? The standard version is the 3036.

Availability: built to order by JL Industries to the configuration you select. Ask us for the current lead time before you schedule an install.

Model number key: tub 30 = 16" x 32" x 7-3/4"; material Stainless Steel; trim Semi-Recessed 1-1/4" or 1-1/2" Square Edge. All fire protection products carry a one year warranty after the date of shipment against defects in materials and workmanship, and the manufacturer will replace or repair any product found defective within this period at its discretion. No other warranty expressed or implied is valid; fire extinguishers may carry a longer warranty and manufacturer's warranty terms and conditions apply in all cases.
