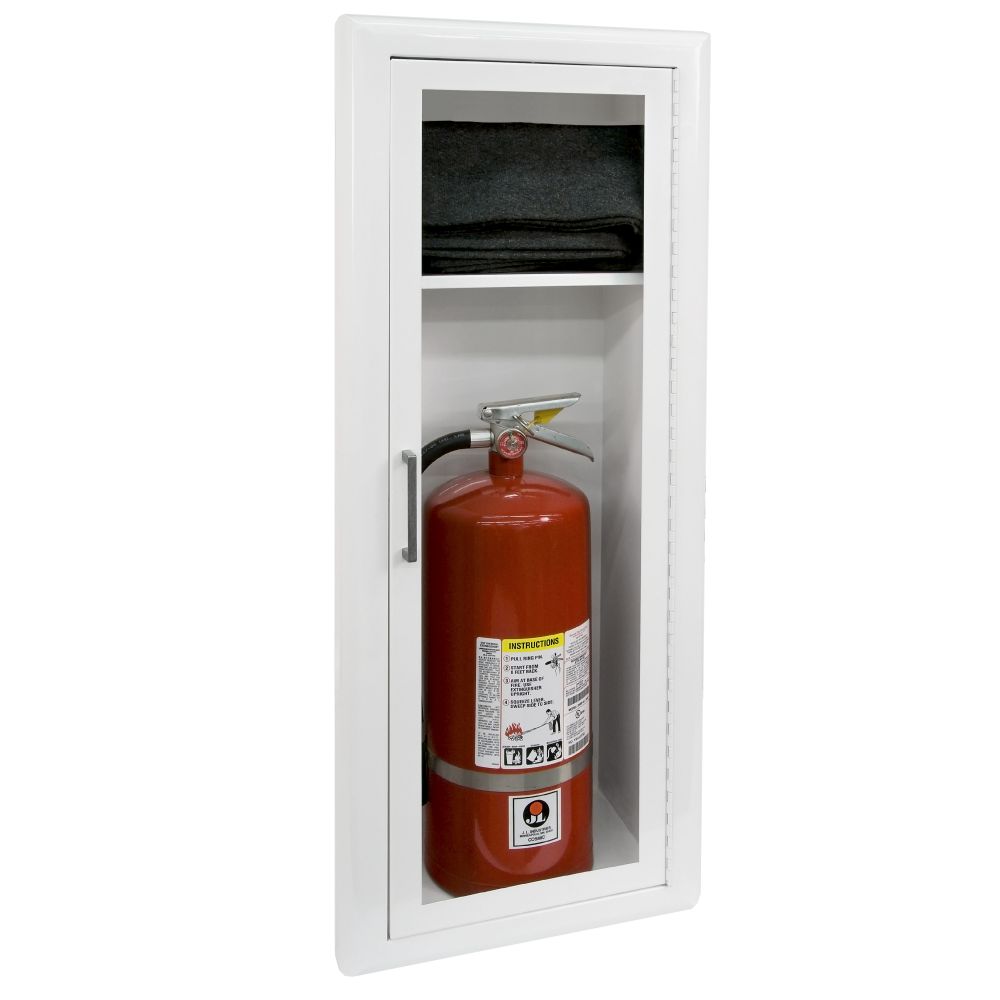

JL Industries Royal 3600 Series Fire-Rated (Fire-FX2) Surface-Mounted Fire Blanket and Extinguisher Cabinet with Shelf, Surface Mount Sq. Trim

JL Industries Royal 3600 Series Fire-Rated (Fire-FX2) Surface-Mounted Fire Blanket and Extinguisher Cabinet with Shelf, Surface Mount Sq. Trim. The Royal series covers fire blankets. The 3600 combination extinguisher and blanket cabinet is offered in steel, anodized aluminum or 304 stainless steel #4, in five recessed configurations plus a surface mount version, and includes a shelf for the blanket and a flush cabinet door with continuous hinge, zinc plated pull and roller catch. Two dedicated blanket cabinets complete the range: model 9519S21 is a steel roller-type cabinet whose blanket is attached to a vertical roller and carries arm loops, and model 9613S21 is a drop-type steel cabinet whose bottom-mounted door releases a folded blanket when the handle is pulled down.

• Tub (inside): 12" x 36" x 8" (W x H x D)
• Overall size: 15-3/16" W x 39-3/16" H x 8-1/2" D
• Trim / frame outside: 15-3/8" x 39-3/8"

Fits: Fire blanket plus one extinguisher: Cosmic, Galaxy, Mercury 2.5 lb - 15 lb, Sentinel 5 lb - 10 lb, Saturn, Nebula 270, Grenadier.

Fire-FX2 is the fire-rated cabinet option, ordered by adding the FX2 suffix to the model number. JL Industries led the industry by introducing the first pre-lined fire-rated cabinets in 1991, and in 2015 eliminated the heavy gypsum wallboard used to line cabinets, replacing it with lightweight mineral wool insulation. The cabinets are UL tested to maintain one and two-hour fire rated wall barriers, in accordance with ANSI/UL-1479 (ASTM E814 and ULC.CAN S115) for membrane penetration firestops. That matters because cutting a cabinet opening into a rated wall is a membrane penetration. Fire-rated construction changes the rough opening, shown in brackets in every series table, and knockouts are not available on fire-rated cabinets.

Standard (non-rated) version: JL Industries Royal 3600 Series Surface-Mounted Fire Blanket and Extinguisher Cabinet with Shelf, Surface Mount Sq. Trim.

All fire protection products carry a one year warranty after the date of shipment against defects in materials and workmanship, and the manufacturer will replace or repair any product found defective within this period at its discretion. No other warranty expressed or implied is valid; fire extinguishers may carry a longer warranty and manufacturer's warranty terms and conditions apply in all cases.
