JL Industries 5714 Embassy Trimless Recessed Fire Extinguisher Cabinet, Steel

The JL Industries 5714 is an Embassy series trimless recessed fire extinguisher cabinet in steel with trimless trim, built around a 16" x 32" x 7-3/4" tub. The Embassy is the decorative trimless recessed cabinet: the door sits in the wall with no surrounding trim flange. The catalog states that recessed Embassy cabinets are always ADA-compliant. Doors are available in cold rolled steel, 304 stainless steel, aluminum, brass or bronze, with two concealed hinges and a concealed handle and roller catch, or a standard pull handle if Saf-T-Lok is installed. The tub is white powder coated cold rolled steel. Embassy covers both fire extinguisher cabinets and fire department valve, hose rack and combination cabinets, in tub sizes from 10-1/2" x 24" x 5-3/4" up to 32" x 32" x 7-3/4".

Fits: Cosmic and Galaxy (20 lb mounts to back of tub), Mercury, Saturn, Grenadier, Sentinel 5 lb - 15 lb, Nebula 250-272.

Configure this cabinet

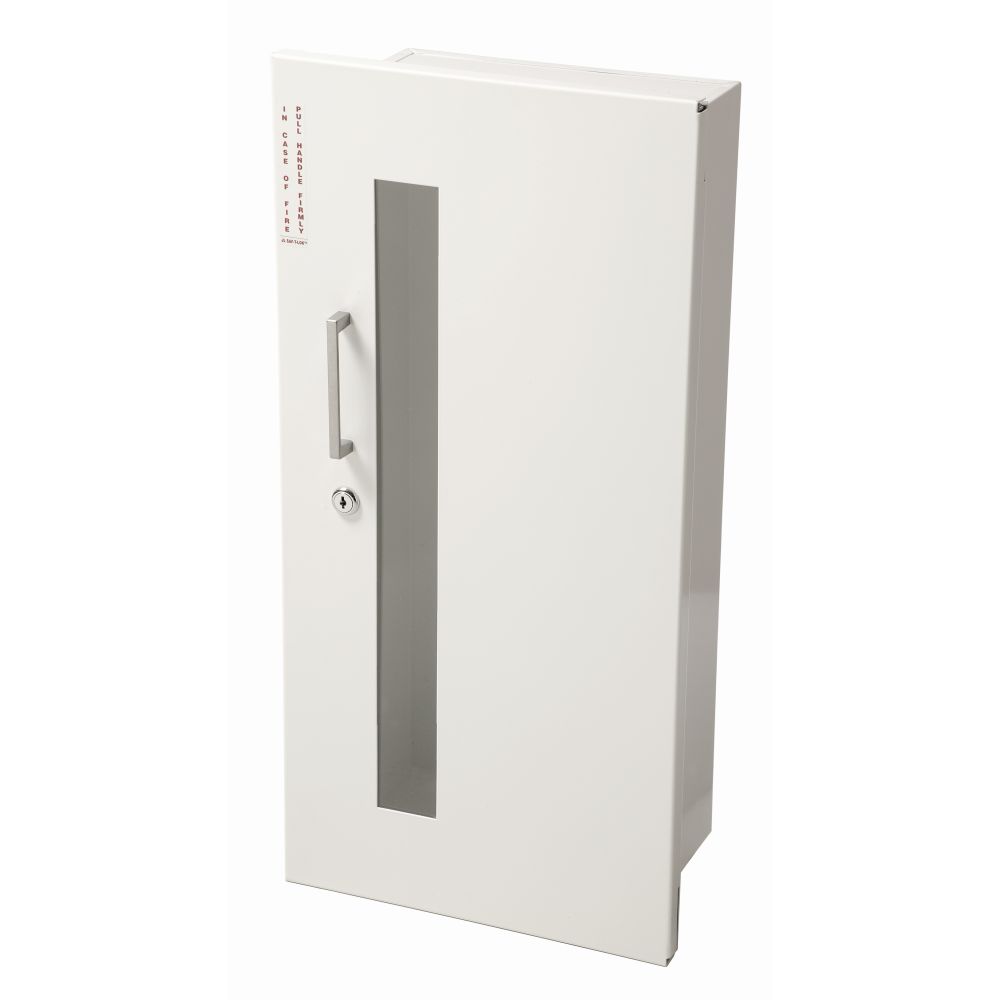

Door style: Vertical Duo, Vertical Duo + Saf-T-Lok, Solid Door, Solid Door + Saf-T-Lok. Saf-T-Lok (SL-LC) is the standard lock for most locking cabinets: a theft-deterrent keyed cylinder lock used instead of a break glass lock lever, since breaking glass in a panic can injure people and create liability. The door appears locked and is, but a sharp pull breaks or bends a replaceable plastic cam and opens it. The cam is 1-5/8" x 1" x 3/32" and is replaced with a Phillips head screwdriver.

Glazing: Glazing 10 is 0.090" clear acrylic, the standard clear glazing. Glazing 15 is 1/8" bronze acrylic, for a tinted door. Glazing 16 is 1/8" gray acrylic, a neutral tint. Glazing 17 is 1/8" clear tempered glass. Glazing 18 is 1/4" clear safety glass, shown in the catalog as laminated safety.

Pull / handle: Pull handles are 4" CTC in finishes matching the cabinet material, with a standard zinc pull (PUS); a recessed flush pull is available on request.

Colored powder-coat finishes, magnetic catches, decorative bronze or brass pulls, Futura cast handles, wired glass and alarms are available on request — ask for a quote with your model number.

Dimensions

• Tub (inside): 16" x 32" x 7-3/4" (W x H x D)
• Door outside: 18-1/4" x 34-1/4"
• Wall opening: 17" x 33"
• Wall depth required: 7-7/8"
• Trim: Trimless
• Approx. ship weight: 36 lb

ADA Standards for protruding objects specify that objects projecting from walls with leading edges between 27" and 80" above the finished floor shall protrude no more than 4" into walkways. The ADA also states the cabinet handle cannot be mounted higher than 48" AFF where only a forward approach in a wheelchair is possible. Trimless, 3/8" flat, 2-1/4" and 1-1/2" square, 3" rolled and 4" rolled trims meet the 4" rule; 4-1/2" rolled and surface mount do not.

Fire-rated wall? Order the Fire-FX2 version, model 5714FX2, which carries the same door, glazing and pull options.

Availability: built to order by JL Industries to the configuration you select. Ask us for the current lead time before you schedule an install.

Model number key: tub 57 = 16" x 32" x 7-3/4"; material Steel; trim Trimless Recessed Flange. All fire protection products carry a one year warranty after the date of shipment against defects in materials and workmanship, and the manufacturer will replace or repair any product found defective within this period at its discretion. No other warranty expressed or implied is valid; fire extinguishers may carry a longer warranty and manufacturer's warranty terms and conditions apply in all cases.
