JL Industries 8113 Ambassador Surface-Mounted Fire Extinguisher Cabinet, Steel

The JL Industries 8113 is an Ambassador series surface-mounted fire extinguisher cabinet in steel, built around a 9" x 18" x 5-1/2" tub. The Ambassador is the steel cabinet in JL Industries' architectural line. Trim, door and tub are all cold rolled steel with a white powder coat finish, and several other powder coat colors can be selected. It is the default choice where a painted steel cabinet will be finished to match the surrounding wall. Tub sizes run from 9" x 18" x 5-1/2" through 20" x 27" x 7-3/4" for two extinguishers. Trim options cover trimless recessed for 5/8" drywall or 3/4" plaster, 3/8" flat recessed, semi-recessed square and rolled edges from 1-1/4" to 4-1/2", and surface mount square edge. Fire-FX2 is available up to 2 hours.

Fits: Cosmic 2.5 lb - 6 lb, Galaxy 2.5 lb - 5.5 lb, Mercury 2.5 lb - 5 lb.

Configure this cabinet

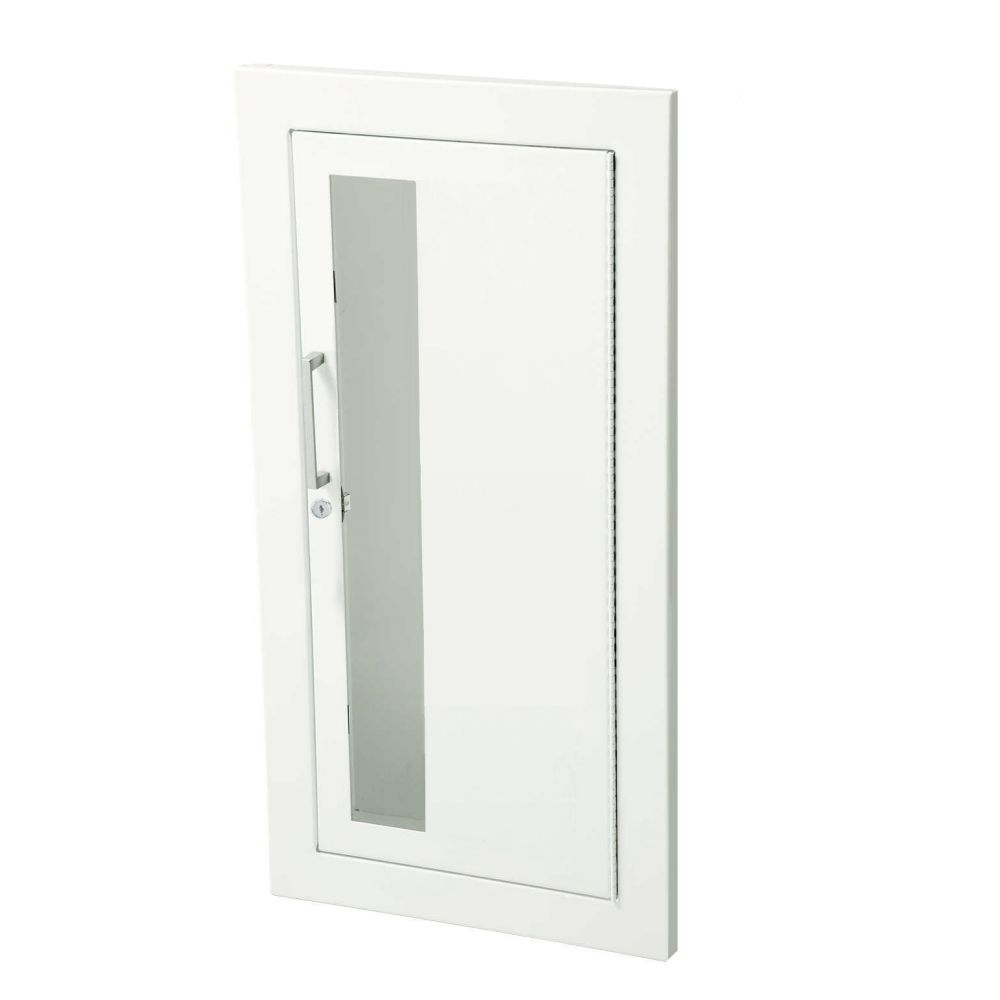

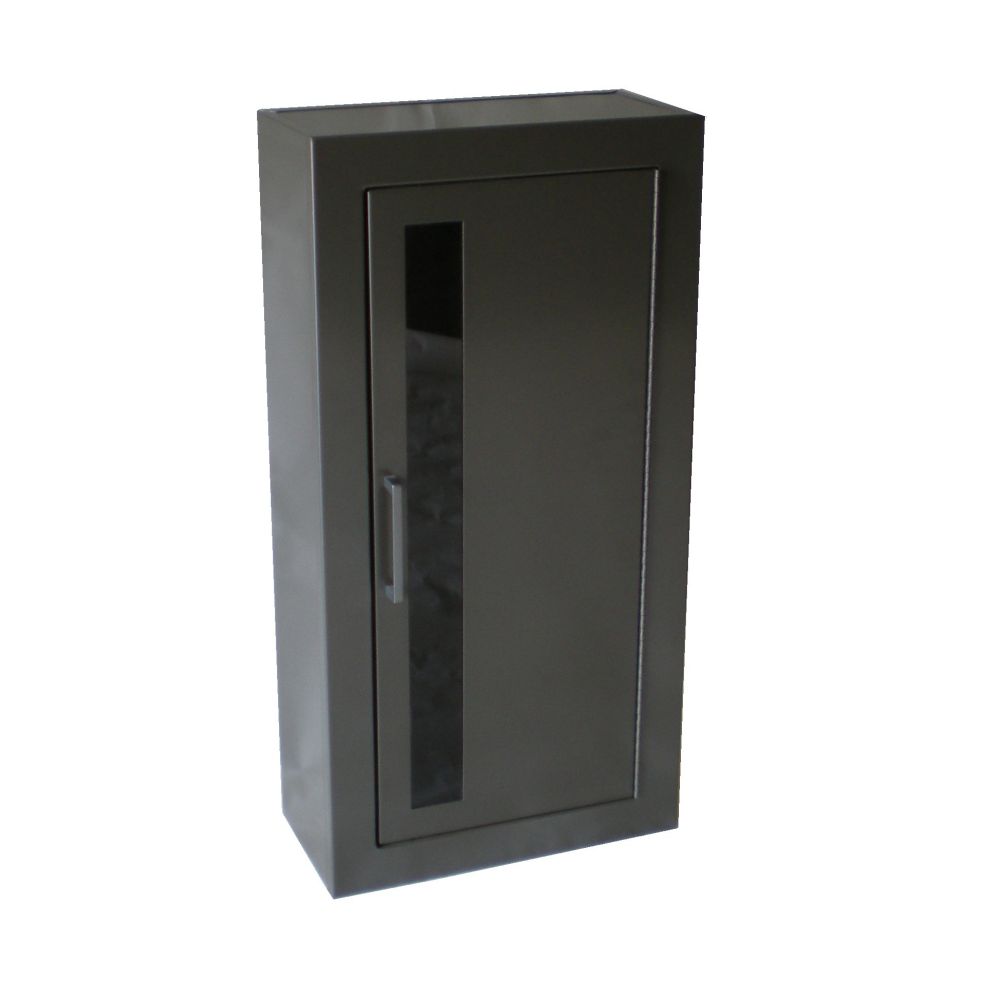

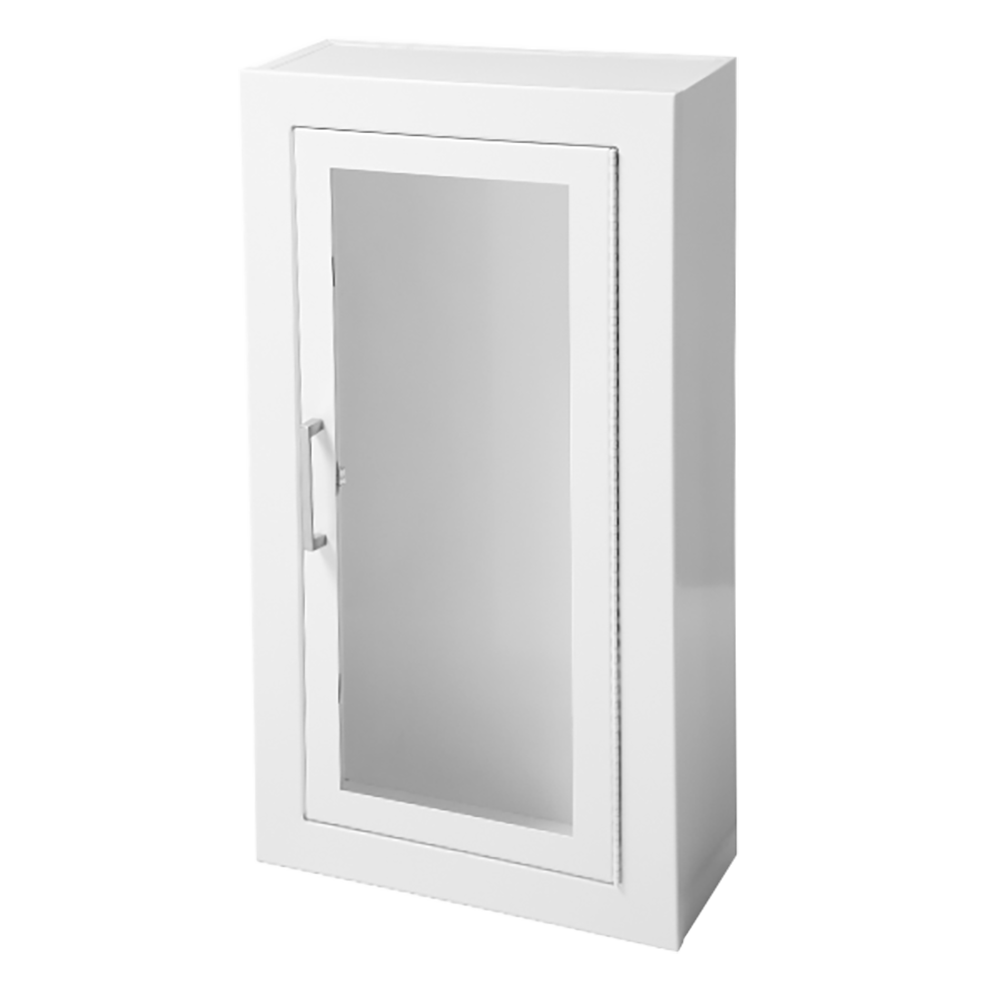

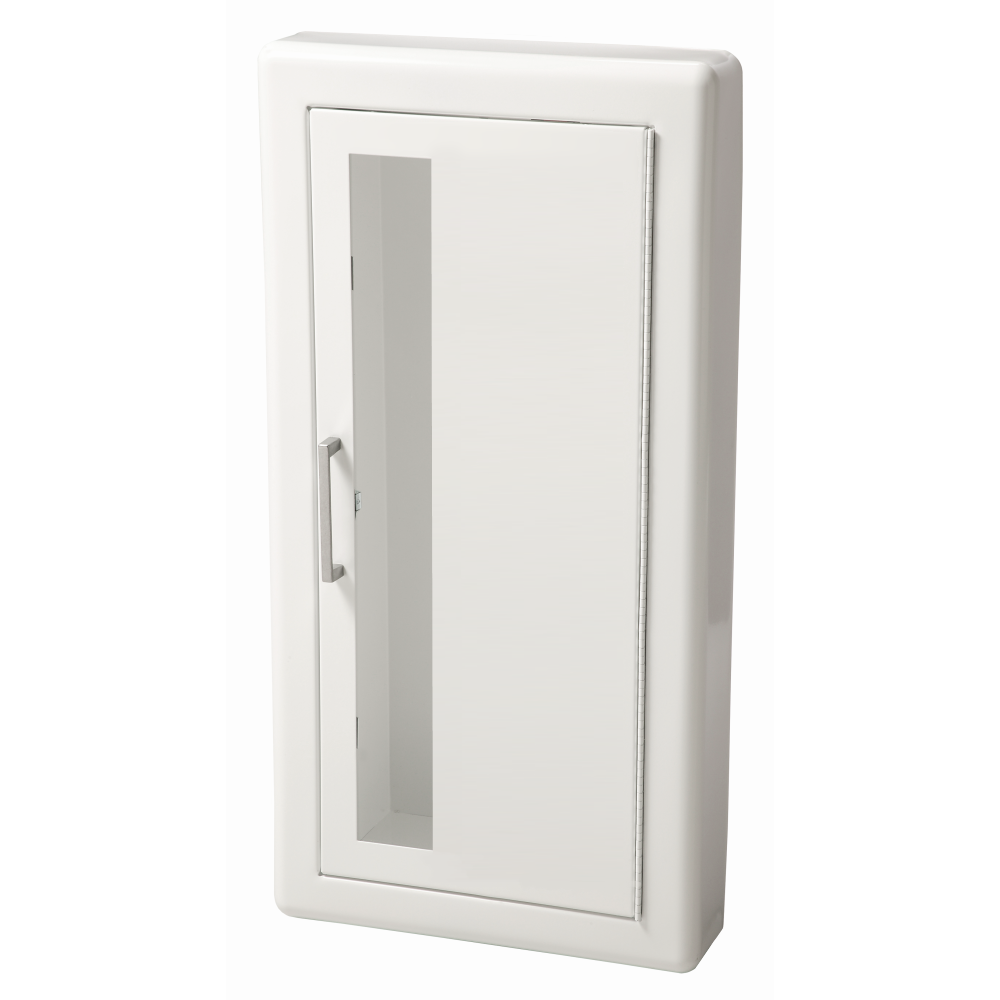

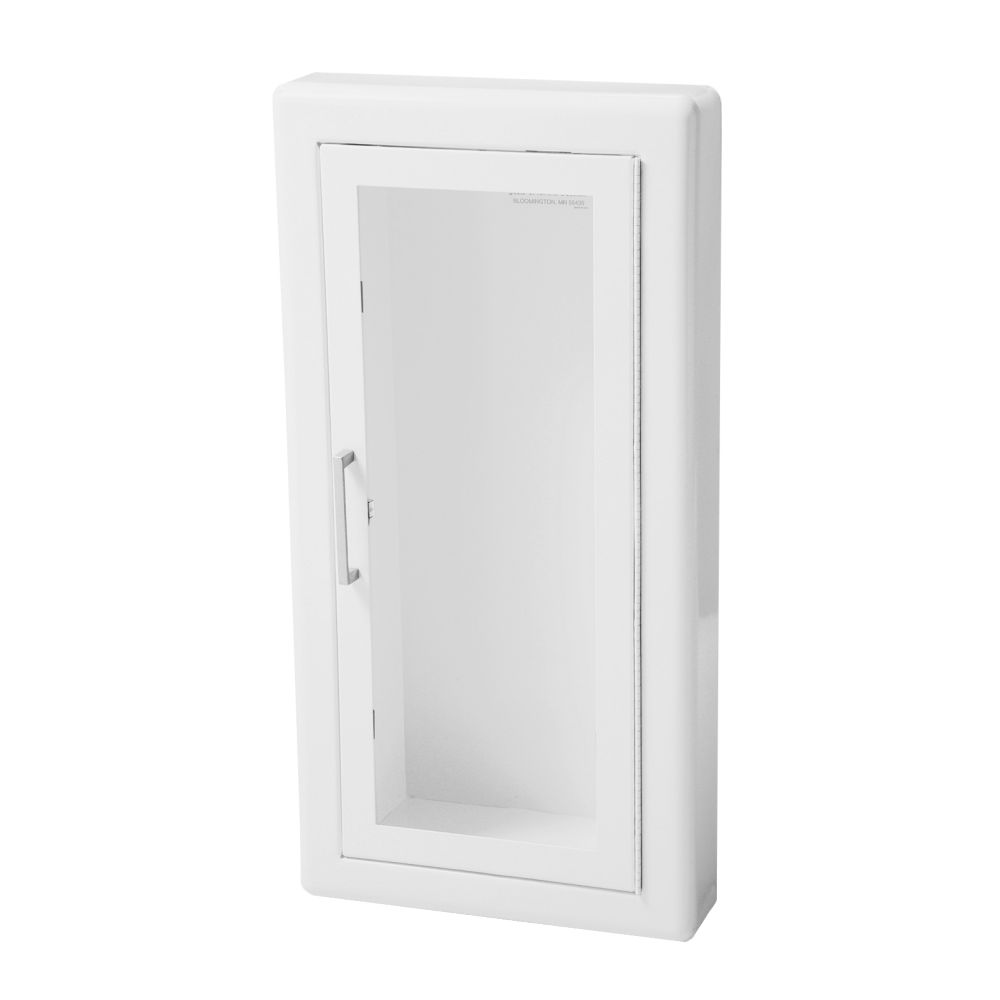

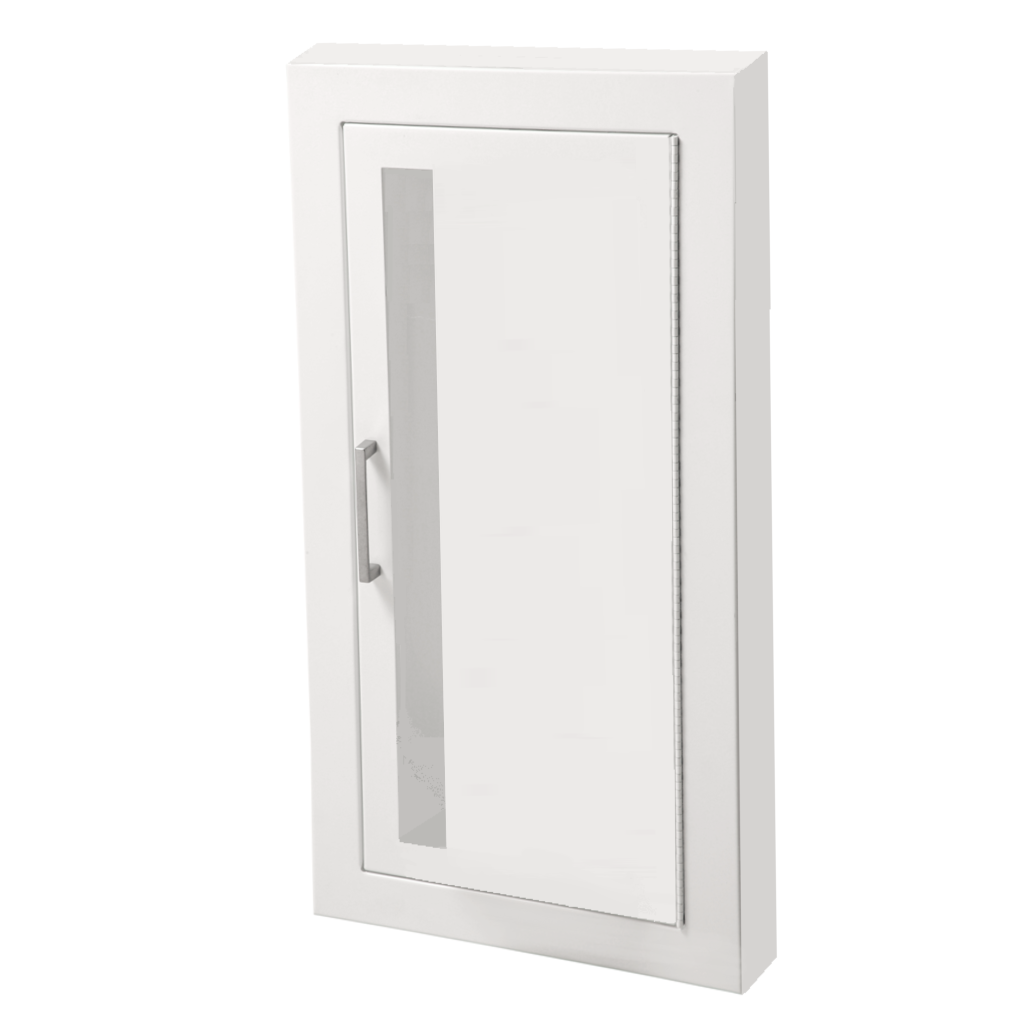

Door style: Full Glass, Full Glass + Saf-T-Lok, Vertical Duo, Vertical Duo + Saf-T-Lok, Horizontal Duo, Horizontal Duo + Saf-T-Lok, Solid Door, Solid Door + Saf-T-Lok. Saf-T-Lok (SL-LC) is the standard lock for most locking cabinets: a theft-deterrent keyed cylinder lock used instead of a break glass lock lever, since breaking glass in a panic can injure people and create liability. The door appears locked and is, but a sharp pull breaks or bends a replaceable plastic cam and opens it. The cam is 1-5/8" x 1" x 3/32" and is replaced with a Phillips head screwdriver.

Glazing: Glazing 10 is 0.090" clear acrylic, the standard clear glazing. Glazing 15 is 1/8" bronze acrylic, for a tinted door. Glazing 16 is 1/8" gray acrylic, a neutral tint. Glazing 17 is 1/8" clear tempered glass. Glazing 18 is 1/4" clear safety glass, shown in the catalog as laminated safety.

Pull / handle: Pull handles are 4" CTC in finishes matching the cabinet material, with a standard zinc pull (PUS) on most cabinets. The flush recessed pull (PRH, model suffix A) is a plastic cup-type handle, standard on all 4" trim cabinets and optional elsewhere; on a vertical duo door it moves the window to the right. The chrome lever handle (LH) is optional on cabinets without Saf-T-Lok.

Colored powder-coat finishes, magnetic catches, decorative bronze or brass pulls, Futura cast handles, wired glass and alarms are available on request — ask for a quote with your model number.

Dimensions

• Tub (inside): 9" x 18" x 5-1/2" (W x H x D)
• Overall size: 12-3/16" W x 21-3/16" H x 6" D
• Trim / frame outside: 12-3/8" x 21-3/8"
• Approx. ship weight: 13 lb

Availability: built to order by JL Industries to the configuration you select. Ask us for the current lead time before you schedule an install.

Model number key: tub 81 = 9" x 18" x 5-1/2"; material Steel; trim Surface Mount, Square Edge. All fire protection products carry a one year warranty after the date of shipment against defects in materials and workmanship, and the manufacturer will replace or repair any product found defective within this period at its discretion. No other warranty expressed or implied is valid; fire extinguishers may carry a longer warranty and manufacturer's warranty terms and conditions apply in all cases.
