JL Industries 8118 Ambassador Semi-Recessed Fire Extinguisher Cabinet, 4 1/2" Rolled Trim, Steel

The JL Industries 8118 is an Ambassador series semi-recessed fire extinguisher cabinet in steel with 4 1/2" rolled trim, built around a 9" x 18" x 5-1/2" tub. The Ambassador is the steel cabinet in JL Industries' architectural line. Trim, door and tub are all cold rolled steel with a white powder coat finish, and several other powder coat colors can be selected. It is the default choice where a painted steel cabinet will be finished to match the surrounding wall. Tub sizes run from 9" x 18" x 5-1/2" through 20" x 27" x 7-3/4" for two extinguishers. Trim options cover trimless recessed for 5/8" drywall or 3/4" plaster, 3/8" flat recessed, semi-recessed square and rolled edges from 1-1/4" to 4-1/2", and surface mount square edge. Fire-FX2 is available up to 2 hours.

Fits: Cosmic 2.5 lb - 6 lb, Galaxy 2.5 lb - 5.5 lb, Mercury 2.5 lb - 5 lb.

Configure this cabinet

Door style: Full Glass, Full Glass + Saf-T-Lok, Vertical Duo, Vertical Duo + Saf-T-Lok, Horizontal Duo, Horizontal Duo + Saf-T-Lok, Solid Door, Solid Door + Saf-T-Lok. Saf-T-Lok (SL-LC) is the standard lock for most locking cabinets: a theft-deterrent keyed cylinder lock used instead of a break glass lock lever, since breaking glass in a panic can injure people and create liability. The door appears locked and is, but a sharp pull breaks or bends a replaceable plastic cam and opens it. The cam is 1-5/8" x 1" x 3/32" and is replaced with a Phillips head screwdriver.

Glazing: Glazing 10 is 0.090" clear acrylic, the standard clear glazing. Glazing 15 is 1/8" bronze acrylic, for a tinted door. Glazing 16 is 1/8" gray acrylic, a neutral tint. Glazing 17 is 1/8" clear tempered glass. Glazing 18 is 1/4" clear safety glass, shown in the catalog as laminated safety.

Pull / handle: Pull handles are 4" CTC in finishes matching the cabinet material, with a standard zinc pull (PUS) on most cabinets. The flush recessed pull (PRH, model suffix A) is a plastic cup-type handle, standard on all 4" trim cabinets and optional elsewhere; on a vertical duo door it moves the window to the right. The chrome lever handle (LH) is optional on cabinets without Saf-T-Lok.

Colored powder-coat finishes, magnetic catches, decorative bronze or brass pulls, Futura cast handles, wired glass and alarms are available on request — ask for a quote with your model number.

Dimensions

• Tub (inside): 9" x 18" x 5-1/2" (W x H x D)
• Trim / frame outside: 12-3/8" x 21-3/8"
• Wall opening: 10" x 19"
• Trim: 4 1/2" Rolled
• Approx. ship weight: 13 lb

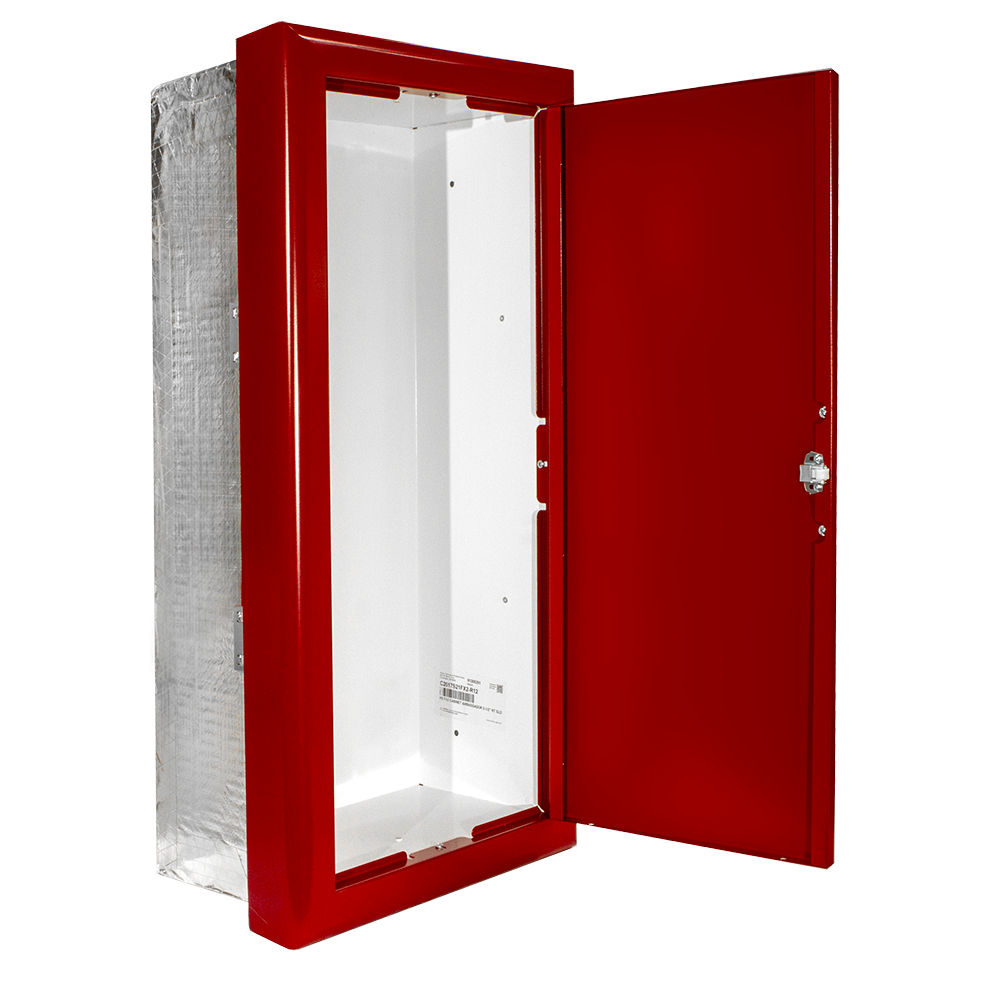

Fire-rated wall? Order the Fire-FX2 version, model 8118FX2, which carries the same door, glazing and pull options.

Availability: built to order by JL Industries to the configuration you select. Ask us for the current lead time before you schedule an install.

Model number key: tub 81 = 9" x 18" x 5-1/2"; material Steel; trim Semi-Recessed 4-1/2" Rolled Edge. All fire protection products carry a one year warranty after the date of shipment against defects in materials and workmanship, and the manufacturer will replace or repair any product found defective within this period at its discretion. No other warranty expressed or implied is valid; fire extinguishers may carry a longer warranty and manufacturer's warranty terms and conditions apply in all cases.
