JL Industries 8138 Cosmopolitan Semi-Recessed Fire Extinguisher Cabinet, 4 1/2" Rolled Trim, Stainless Steel

The JL Industries 8138 is a Cosmopolitan series semi-recessed fire extinguisher cabinet in stainless steel with 4 1/2" rolled trim, built around a 9" x 18" x 5-1/2" tub. The Cosmopolitan is the stainless steel cabinet in the architectural series. Trim and door are 304 stainless steel with a #4 satin finish; the tub is white powder coated cold rolled steel, and surface mount models have 304 stainless sides and back. Specifiers choose it for corridors, kitchens, laboratories and other areas where a cleanable, corrosion-resistant surface is required or where stainless hardware is already the standard. #6, #7 and #8 stainless finishes are available as options. Cosmopolitan shares the Ambassador and Academy tub sizes, trim projections, door styles and glazing choices, and is available with the Fire-FX2 option up to 2 hours.

Fits: Cosmic 2.5 lb - 6 lb, Galaxy 2.5 lb - 5.5 lb, Mercury 2.5 lb - 5 lb.

Configure this cabinet

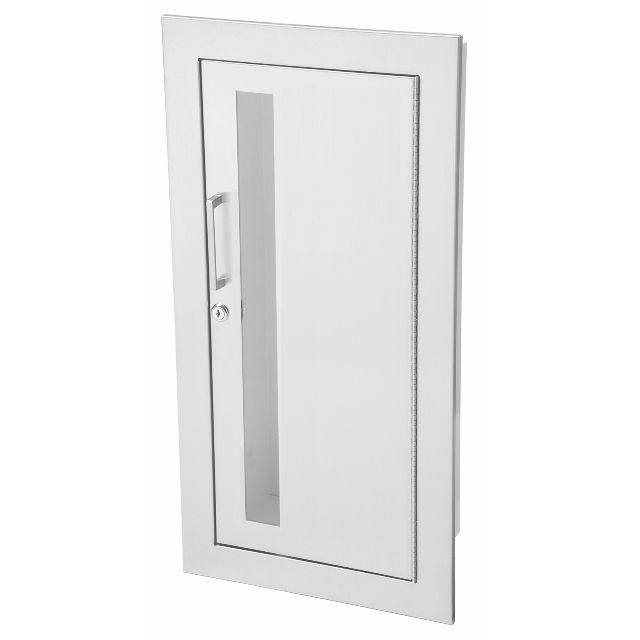

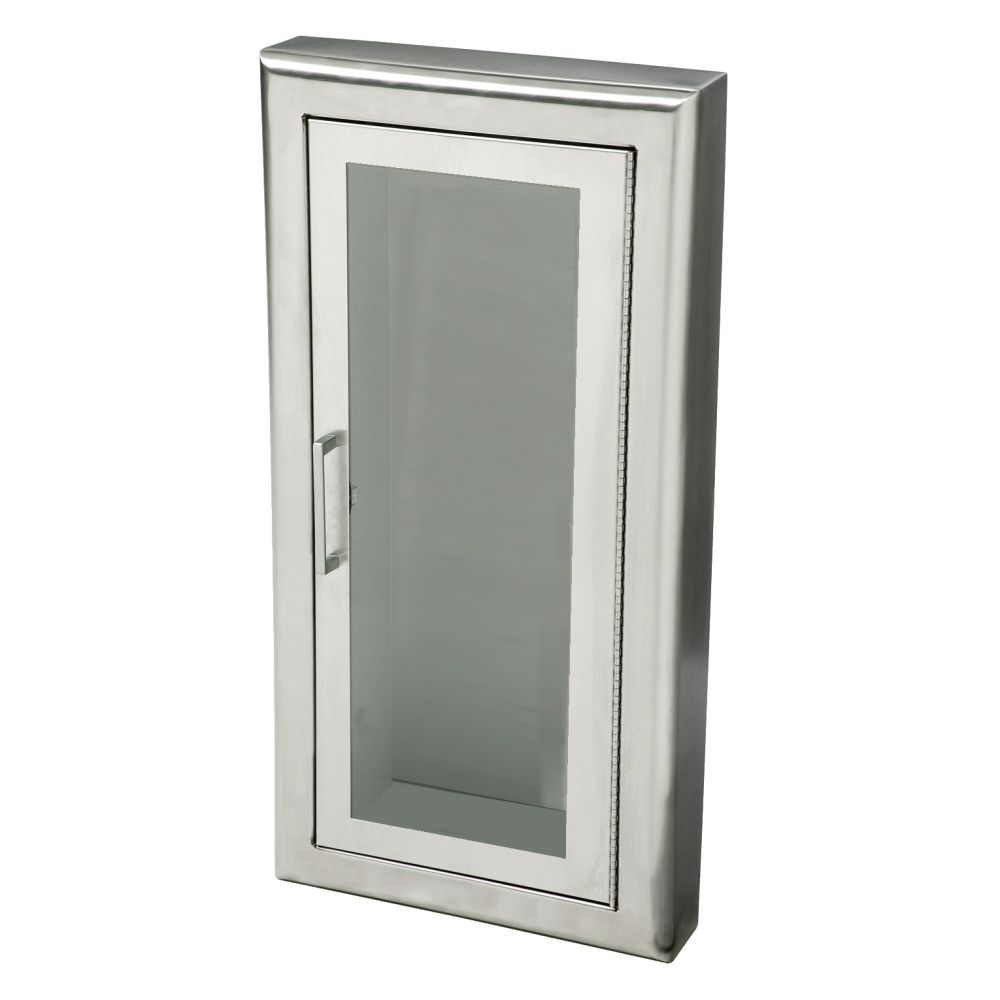

Door style: Full Glass, Full Glass + Saf-T-Lok, Vertical Duo, Vertical Duo + Saf-T-Lok, Horizontal Duo, Horizontal Duo + Saf-T-Lok, Solid Door, Solid Door + Saf-T-Lok. Saf-T-Lok (SL-LC) is the standard lock for most locking cabinets: a theft-deterrent keyed cylinder lock used instead of a break glass lock lever, since breaking glass in a panic can injure people and create liability. The door appears locked and is, but a sharp pull breaks or bends a replaceable plastic cam and opens it. The cam is 1-5/8" x 1" x 3/32" and is replaced with a Phillips head screwdriver.

Glazing: Glazing 10 is 0.090" clear acrylic, the standard clear glazing. Glazing 15 is 1/8" bronze acrylic, for a tinted door. Glazing 16 is 1/8" gray acrylic, a neutral tint. Glazing 17 is 1/8" clear tempered glass. Glazing 18 is 1/4" clear safety glass, shown in the catalog as laminated safety.

Pull / handle: Pull handles are 4" CTC in finishes matching the cabinet material, with a standard zinc pull (PUS) on most cabinets. The flush recessed pull (PRH, model suffix A) is a plastic cup-type handle, standard on all 4" trim cabinets and optional elsewhere; on a vertical duo door it moves the window to the right. The chrome lever handle (LH) is optional on cabinets without Saf-T-Lok.

Colored powder-coat finishes, magnetic catches, decorative bronze or brass pulls, Futura cast handles, wired glass and alarms are available on request — ask for a quote with your model number.

Dimensions

• Tub (inside): 9" x 18" x 5-1/2" (W x H x D)
• Trim / frame outside: 12-3/8" x 21-3/8"
• Wall opening: 10" x 19"
• Trim: 4 1/2" Rolled
• Approx. ship weight: 13 lb

Fire-rated wall? Order the Fire-FX2 version, model 8138FX2, which carries the same door, glazing and pull options.

Availability: built to order by JL Industries to the configuration you select. Ask us for the current lead time before you schedule an install.

Model number key: tub 81 = 9" x 18" x 5-1/2"; material Stainless Steel; trim Semi-Recessed 4-1/2" Rolled Edge. All fire protection products carry a one year warranty after the date of shipment against defects in materials and workmanship, and the manufacturer will replace or repair any product found defective within this period at its discretion. No other warranty expressed or implied is valid; fire extinguishers may carry a longer warranty and manufacturer's warranty terms and conditions apply in all cases.
