- Model
- FE10VB
- UL rating
- 4A:80B:C
- Ship weight
- 22.0 lb
- H × W × D
- 23.0″ × 9.0″ × 3.5″

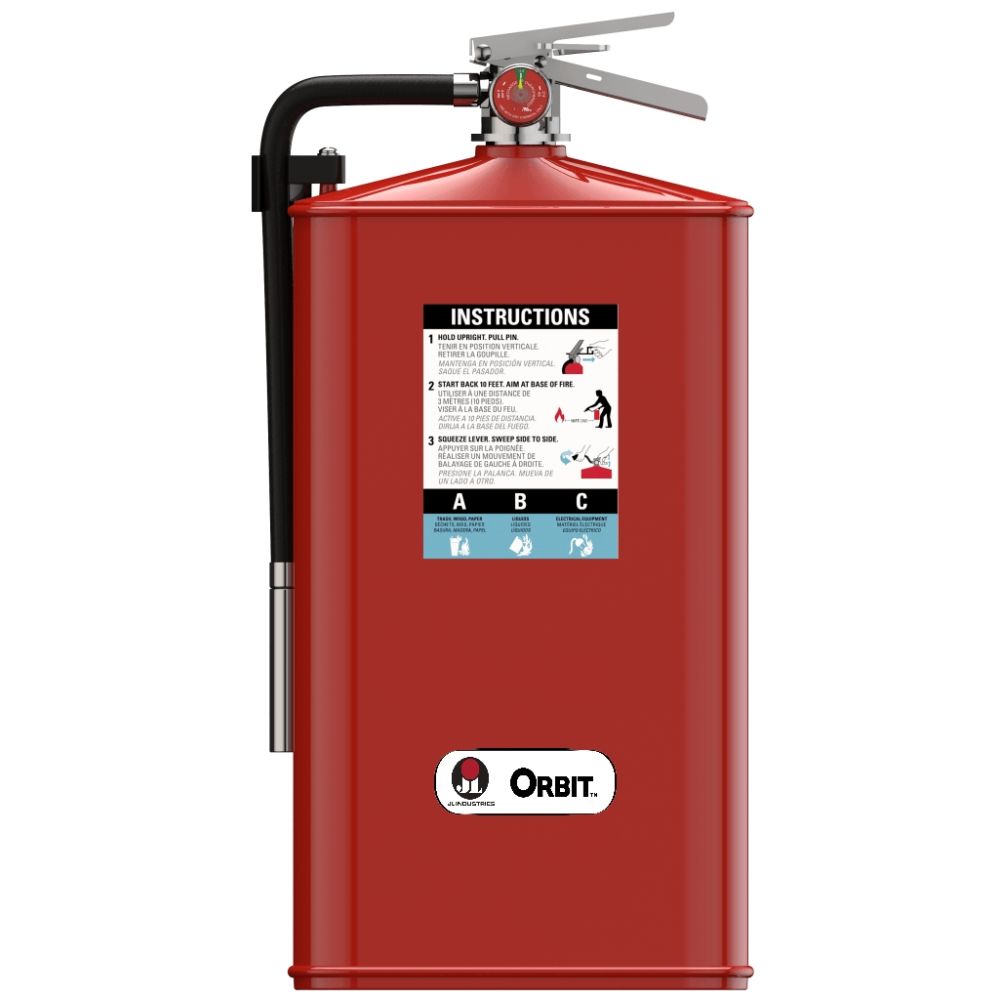

JL Industries Orbit FE10VB 10 lb ABC Fire Extinguisher (FE10VB)
FSP · P-02
What it is
JL Industries Orbit FE10VB (FE10VB) is a 10 lb portable fire extinguisher charged with specially fluidized and siliconized mono ammonium phosphate powder and UL rated 4A:80B:C for Class A, B and C fires. It stands 23" tall and 9" wide, on a 3-1/2" deep vessel, and ships at 22 lb. The vessel is non-magnetic tempered aluminum with an aluminum valve, with a visual pressure gauge and pull pin. The operating temperature range is -40°F (-40°C) to 120°F (49°C). A button hook and washer ship with it for wall mounting. JL does not recommend ABC dry chemical for use on sensitive electronic equipment.
The JL Industries FE10VB is the Orbit FE10VB, a 10 lb portable fire extinguisher in JL's Orbit series, charged with specially fluidized and siliconized mono ammonium phosphate powder and UL rated 4A:80B:C for Class A, B and C fires. It is specified for corridors, lobbies and other finished spaces where a slim wall profile matters. The powder smothers and breaks the chain reaction on Class B fires, fuses and insulates Class A fires, and is a non-conductor of electricity. JL states the Orbit vessel is as much as 40 percent slimmer than a traditional 10 lb model and is compliant with ADA protruding object regulations and local building codes.
- UL rating: 4A:80B:C
- Agent and capacity: ABC (multi-purpose) dry chemical, 10 lb nominal
- Dimensions: 23" overall height, 9" overall width, 3-1/2" vessel depth
- Shipping weight: 22 lb (1.35 cu. ft. shipping volume)
- Construction: Non-magnetic corrosion-resistant tempered aluminum vessel with aluminum valve and siphon tube, visual pressure gauge, stainless steel pull pin, handles, bracket and button hook. Durable powder coat finish. Tested to 3 Tesla.
- Valve material: Aluminum
- Operating temperature: -40°F (-40°C) to 120°F (49°C)
- Standards: Conforms to CAN/ULC-S504 - ANSI/UL 299 and CAN/ULC-S508 - ANSI/UL 711. Meets the current NFPA 10 requirements for portable fire extinguishers and is tested and listed by UL.
- In the box: the extinguisher with its button hook and washer for wall mounting.
- Charging: Ships factory charged.
- Application limits: JL does not recommend ABC dry chemical for use on sensitive electronic equipment.
This model is the surface or wall mount version and JL's catalog does not list a cabinet for it; the Orbit 2100 low profile cabinet tub is listed as fitting only the Orbit FE10V.
JL Industries warrants its fire extinguishers free from defects in material and workmanship under normal use for six years from date of shipment; manufacturer warranty terms and conditions apply in all cases.
FSP · P-03
Submittal data
The same values print on the submittal sheet.
| Ratings and agent | |
|---|---|
| UL rating | 4A:80B:C |
| Fire classes | Class A, B and C |
| Agent | ABC (multi-purpose) dry chemical |
| Agent chemical base | Mono ammonium phosphate, specially fluidized and siliconized |
| Nominal capacity | 10 lb |
| Dimensions and weight | |
|---|---|
| Overall height | 23 in |
| Overall width | 9 in |
| Vessel depth | 3.5 in |
| Shipping weight | 22 lb |
| Shipping volume | 1.35 cu. ft. |
| Discharge | |
|---|---|
| Discharge design | Upright squeeze grip |
| Operation | Squeeze the lever, which opens the valve, allowing the agent to be forced out |
| Operating temperature range | -40°F (-40°C) to 120°F (49°C) |
| Construction | |
|---|---|
| Cylinder material | Non-magnetic tempered aluminum |
| Valve material | Aluminum |
| Mounting and standards | |
|---|---|
| Included mounting | Button hook and washer for wall mounting |
| Tested to | CAN/ULC-S504 - ANSI/UL 299 and CAN/ULC-S508 - ANSI/UL 711 |
| Standard | NFPA 10 Standard for Portable Fire Extinguishers |
| Warranty | Six years from date of shipment |
| Item | |
|---|---|
| JL Industries model | Orbit FE10VB |
| JL Industries item number | FE10VB |
| JL stock list | Not listed |
FSP · P-04
Documents
FSP · P-05
General notes
What is the UL rating of the JL Industries Orbit FE10VB?
4A:80B:C, for Class A, B and C fires.
What are the dimensions of the Orbit FE10VB (FE10VB)?
23" overall height, 9" overall width, and a 3-1/2" vessel depth.
How much does the FE10VB weigh to ship?
22 lb, at 1.35 cu. ft. shipping volume.
Does the FE10VB come with a bracket?
It ships with a button hook and washer for wall mounting.
Does the FE10VB fit a cabinet?
No. This is the surface or wall mount version; the Orbit 2100 low profile cabinet tub is listed as fitting only the Orbit FE10V.
