- Model
- FPK10VB
- UL rating
- 80B:C
- Ship weight
- 22.0 lb
- H × W × D
- 23.0″ × 9.0″ × 3.5″

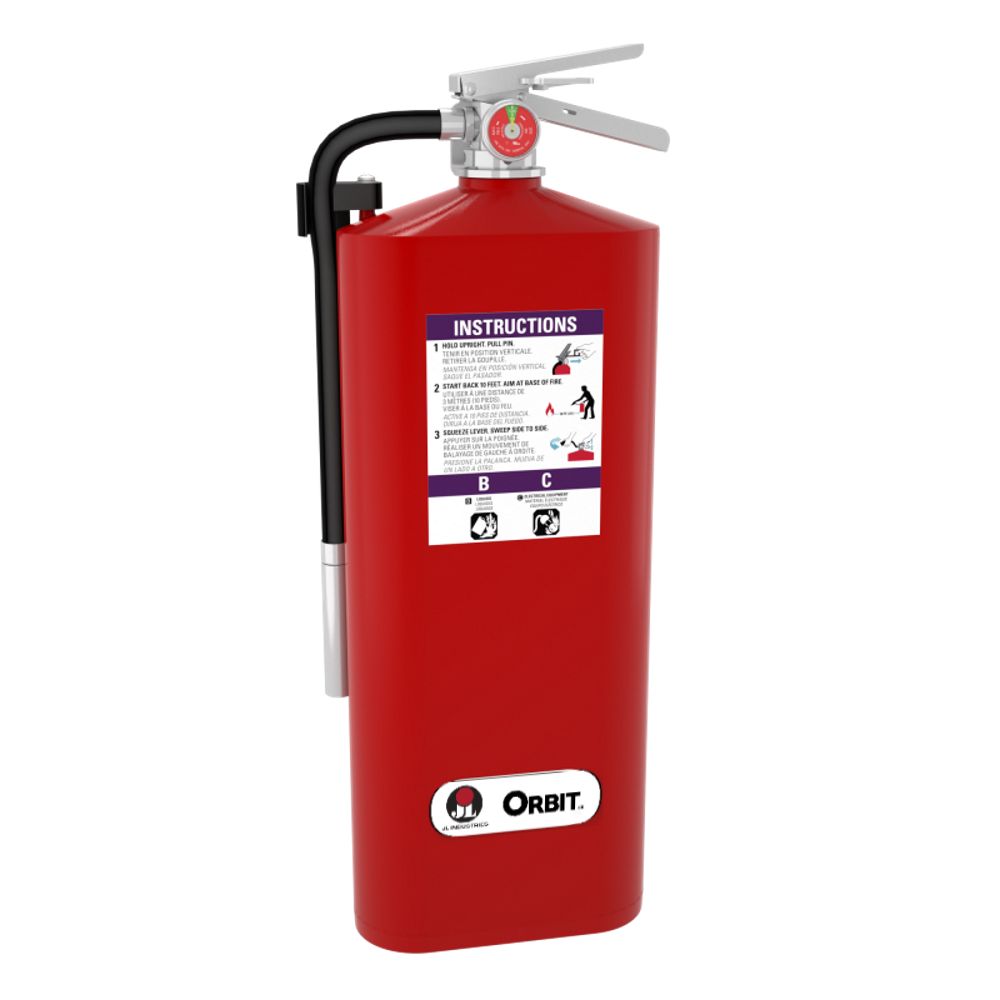

JL Industries Orbit FPK10VB 10 lb Purple K Fire Extinguisher (FPK10VB)
FSP · P-02
What it is
JL Industries Orbit FPK10VB (FPK10VB) is a 10 lb portable fire extinguisher charged with specially fluidized and siliconized potassium bicarbonate dry chemical and UL rated 80B:C for Class B and C fires. It stands 23" tall and 9" wide, on a 3-1/2" deep vessel, and ships at 22 lb. The vessel is non-magnetic tempered aluminum with an aluminum valve, with a visual pressure gauge and pull pin. The operating temperature range is -40°F (-40°C) to 120°F (49°C). A button hook and washer ship with it for wall mounting. Purple K is not recommended for use on sensitive electronic equipment, and it is not a Class K extinguisher for cooking oils and grease.
The JL Industries FPK10VB is the Orbit FPK10VB, a 10 lb portable fire extinguisher in JL's Orbit series, charged with specially fluidized and siliconized potassium bicarbonate dry chemical and UL rated 80B:C for Class B and C fires. It is specified for garages, service bays, boats, vehicles and fuel storage and transfer areas, and public areas such as offices, classrooms and churches. Purple K is particularly effective on Class B flammable liquids and pressurized gases and is electrically non-conductive. JL describes it as the preferred fire fighting agent of the oil, gas, chemical and utilities industries, and states the Orbit vessel is as much as 40 percent slimmer than a traditional 10 lb model and is compliant with ADA protruding object regulations and local building codes.
- UL rating: 80B:C
- Agent and capacity: Purple K dry chemical, 10 lb nominal
- Dimensions: 23" overall height, 9" overall width, 3-1/2" vessel depth
- Shipping weight: 22 lb (1.35 cu. ft. shipping volume)
- Construction: Non-magnetic corrosion-resistant tempered aluminum vessel with aluminum valve and siphon tube, visual pressure gauge, stainless steel pull pin, handles, bracket and button hook. Durable powder coat finish. Tested to 3 Tesla.
- Valve material: Aluminum
- Operating temperature: -40°F (-40°C) to 120°F (49°C)
- Standards: Conforms to CAN/ULC-S504 - ANSI/UL 299 and CAN/ULC-S508 - ANSI/UL 711. Meets the current NFPA 10 requirements for portable fire extinguishers and is tested and listed by UL.
- In the box: the extinguisher with its button hook and washer for wall mounting.
- Charging: Ships factory charged.
- Application limits: Purple K is not recommended for use on sensitive electronic equipment, and it is not a Class K extinguisher for cooking oils and grease.
This model is the surface or wall mount version and JL's catalog does not list a cabinet for it; the Orbit 2100 low profile cabinet tub is listed as fitting only the Orbit FE10V.
JL Industries warrants its fire extinguishers free from defects in material and workmanship under normal use for six years from date of shipment; manufacturer warranty terms and conditions apply in all cases.
FSP · P-03
Submittal data
The same values print on the submittal sheet.
| Ratings and agent | |
|---|---|
| UL rating | 80B:C |
| Fire classes | Class B and C |
| Agent | Purple K dry chemical |
| Agent chemical base | Potassium bicarbonate, specially fluidized and siliconized |
| Nominal capacity | 10 lb |
| Dimensions and weight | |
|---|---|
| Overall height | 23 in |
| Overall width | 9 in |
| Vessel depth | 3.5 in |
| Shipping weight | 22 lb |
| Shipping volume | 1.35 cu. ft. |
| Discharge | |
|---|---|
| Discharge design | Upright squeeze grip |
| Operation | Squeeze the lever, which opens the valve, allowing the agent to be forced out |
| Operating temperature range | -40°F (-40°C) to 120°F (49°C) |
| Construction | |
|---|---|
| Cylinder material | Non-magnetic tempered aluminum |
| Valve material | Aluminum |
| Mounting and standards | |
|---|---|
| Included mounting | Button hook and washer for wall mounting |
| Tested to | CAN/ULC-S504 - ANSI/UL 299 and CAN/ULC-S508 - ANSI/UL 711 |
| Standard | NFPA 10 Standard for Portable Fire Extinguishers |
| Warranty | Six years from date of shipment |
| Item | |
|---|---|
| JL Industries model | Orbit FPK10VB |
| JL Industries item number | FPK10VB |
| JL stock list | Not listed |
FSP · P-04
Documents
FSP · P-05
General notes
What is the UL rating of the JL Industries Orbit FPK10VB?
80B:C, for Class B and C fires.
What are the dimensions of the Orbit FPK10VB (FPK10VB)?
23" overall height, 9" overall width, and a 3-1/2" vessel depth.
How much does the FPK10VB weigh to ship?
22 lb, at 1.35 cu. ft. shipping volume.
Does the FPK10VB come with a bracket?
It ships with a button hook and washer for wall mounting.
Does the FPK10VB fit a cabinet?
No. This is the surface or wall mount version; the Orbit 2100 low profile cabinet tub is listed as fitting only the Orbit FE10V.
