- Model
- RHDG-1WT-LG
JL Industries RHDG Galvanized Steel Diamond Series Galvanneal Roof Hatch Series with White Textured Powder Coat Paint Finish - Ladder Access
FSP · P-02
What it is
RHDG Diamond Series™ – The Safer, Faster Roof Hatch
-
Smart Install: "Diamond Grip" system secures membranes without tools.
-
Built Tough: 14ga Galvannealed Steel with 40psf live load rating.
-
Energy Efficient: R-6 Insulation + IR-Reflective White Finish.
-
Safe Access: Counterbalanced lift and auto-locking arm for one-handed use.
-
Weather Proof: Continuous EPDM Gasket seal.
-
Origin: Proudly Made in the USA with a 5-Year Warranty.

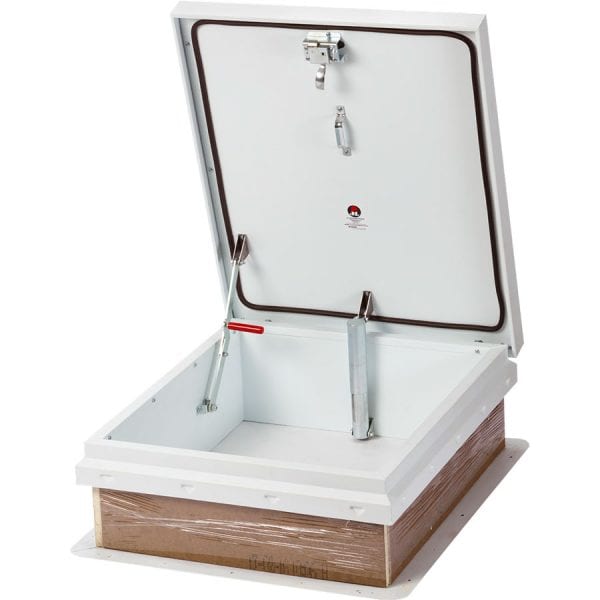

The JL Industries Diamond Series™ (RHDG) represents the new standard in roof access, combining rugged durability with intelligent design. Engineered specifically for ladder access, this hatch features the proprietary Diamond Grip™ counter-flashing system, which allows installers to secure roof membranes by hand—eliminating the need for tools and preventing potential puncture damage during installation.
Constructed from robust 14-gauge galvannealed steel, the unit is finished with a durable, infrared-reflective white textured powder coat that resists corrosion and reduces thermal load. The hatch offers superior thermal performance with R-6 Polyisocyanurate insulation embedded in both the curb and cover. Designed with operator safety as a priority, the RHDG features OSHA-compliant counterbalanced springs and a one-handed latch system, ensuring effortless operation even while carrying tools.
