- Model
- FK15C
- UL rating
- 2-A:K
- Ship weight
- 22.75 lb
- H × W × D
- 19.25″ × 9.0″ × 7.0″

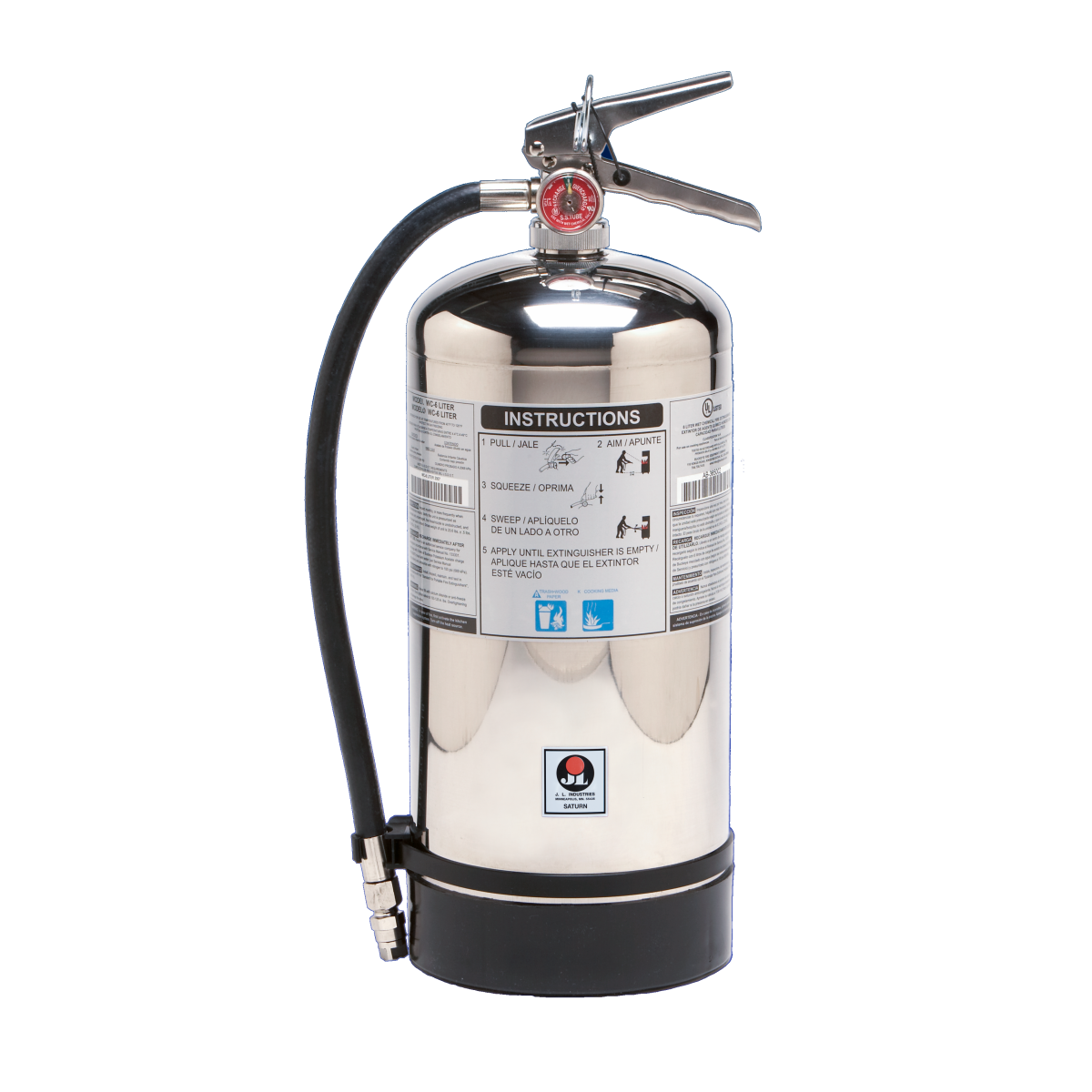

JL Industries Saturn 15 6 liter Class K Fire Extinguisher (FK15C)
FSP · P-02
What it is
JL Industries Saturn 15 (FK15C) is a 6 liter portable fire extinguisher charged with a low-pH potassium acetate solution and UL rated 2-A:K for Class A and K fires. It stands 19-1/4" tall and 9" wide over the hose and handle, on a 7" diameter cylinder, and ships at 22.75 lb. The cylinder is stainless steel, with a visual pressure gauge and pull pin. The operating temperature range is 40°F (4°C) to 120°F (49°C). A J-hook wall bracket ships with it as standard, and the Mark MB810C bracket is available separately. It is approved for cooking media fires, is described as a supplement to a pre-engineered system, and must not be allowed to freeze.
The JL Industries FK15C is the Saturn 15, a 6 liter portable fire extinguisher in JL's Saturn series, charged with a low-pH potassium acetate solution and UL rated 2-A:K for Class A and K fires. It is specified for commercial kitchens and restaurants, as a portable supplement to a pre-engineered suppression system. The solution discharges in a fine mist that gives range while preventing splashing, and creates a saponification foam blanket over burning cooking media. Its cooling properties absorb heat so the fire stays out.
- UL rating: 2-A:K
- Agent and capacity: Class K wet chemical, 6 liter nominal
- Dimensions: 19-1/4" overall height, 9" overall width including hose and handle, 7" cylinder diameter
- Shipping weight: 22.75 lb (.9 cu. ft. shipping volume)
- Construction: Stainless steel cylinder with protective nozzle tip orifice seal and non-metallic nozzle tip finger guard. Industry standard horn and nozzle design. The name plate shows only the Class K symbol.
- Operating temperature: 40°F (4°C) to 120°F (49°C)
- Standards: Conforms to CAN/ULC-S554 - ANSI/UL 8 and CAN/ULC-S508 - ANSI/UL 711. Meets the current NFPA 10 requirements for portable fire extinguishers and is tested and listed by UL.
- In the box: the extinguisher with a J-hook wall bracket as standard; the Mark MB810C mounting bracket is available separately at extra charge.
- Charging: Ships factory charged.
- Application limits: Wet chemical extinguishers are approved for fires involving cooking media. Do not subject them to conditions where they might freeze. The owner's manual directs that wet chemical extinguishers be discharged on kitchen grease fires until empty, to allow additional cooling and retard flash-back.
JL's catalog lists this extinguisher as compatible with the following cabinet tub sizes:
- 12" x 27" x 7-3/4" tub (2000 series); the catalog notes Saturn units must be mounted to the tub
- 16" x 32" x 7-3/4" tub (3000 series)
- 20" x 27" x 7-3/4" duo tub (4000 series, two extinguishers)
Sized to the cabinet tables in JL's fire protection catalog. JL's cabinet selection guide asks for at least 1" of clearance in height, width and depth over the extinguisher's own dimensions.
The optional Mark MB810C mounting bracket for this model is listed on the JL Industries MB810C bracket page.
JL Industries warrants CO2 and water or water-based extinguishers, including this model, free from defects in material and workmanship under normal use for five years from date of shipment; manufacturer warranty terms and conditions apply in all cases.
FSP · P-03
Submittal data
The same values print on the submittal sheet.
| Ratings and agent | |
|---|---|
| UL rating | 2-A:K |
| Fire classes | Class A and K |
| Agent | Class K wet chemical |
| Agent chemical base | Potassium acetate solution, low pH |
| Nominal capacity | 6 liter |
| Dimensions and weight | |
|---|---|
| Overall height | 19.25 in |
| Overall width | 9 in |
| Cylinder diameter | 7 in |
| Shipping weight | 22.75 lb |
| Shipping volume | .9 cu. ft. |
| Discharge | |
|---|---|
| Discharge design | Horn and nozzle, fine mist |
| Operation | Squeeze the lever, which opens the valve, allowing the agent to be forced out |
| Operating temperature range | 40°F (4°C) to 120°F (49°C) |
| Construction | |
|---|---|
| Cylinder material | Stainless steel |
| Mounting and standards | |
|---|---|
| Included mounting | J-hook wall bracket, standard |
| Optional mounting bracket | Mark MB810C, at extra charge |
| Tested to | CAN/ULC-S554 - ANSI/UL 8 and CAN/ULC-S508 - ANSI/UL 711 |
| Standard | NFPA 10 Standard for Portable Fire Extinguishers |
| Warranty | Five years from date of shipment |
| Item | |
|---|---|
| JL Industries model | Saturn 15 |
| JL Industries item number | FK15C |
| JL stock list | Yes |
FSP · P-04
Documents
FSP · P-05
General notes
What is the UL rating of the JL Industries Saturn 15?
2-A:K, for Class A and K fires.
What are the dimensions of the Saturn 15 (FK15C)?
19-1/4" overall height, 9" overall width including hose and handle, and a 7" cylinder diameter.
How much does the FK15C weigh to ship?
22.75 lb, at .9 cu. ft. shipping volume.
Does the FK15C come with a bracket?
A J-hook wall bracket is standard. The Mark MB810C mounting bracket is available separately at extra charge.
Is the Saturn a stand-alone kitchen fire solution?
JL describes it as a portable supplement to a pre-engineered suppression system in commercial kitchens. It must not be allowed to freeze.
