- Model
- FS05C
- UL rating
- 5B:C
- Ship weight
- 13.75 lb
- H × W × D
- 17.75″ × 8.25″ × 5.25″

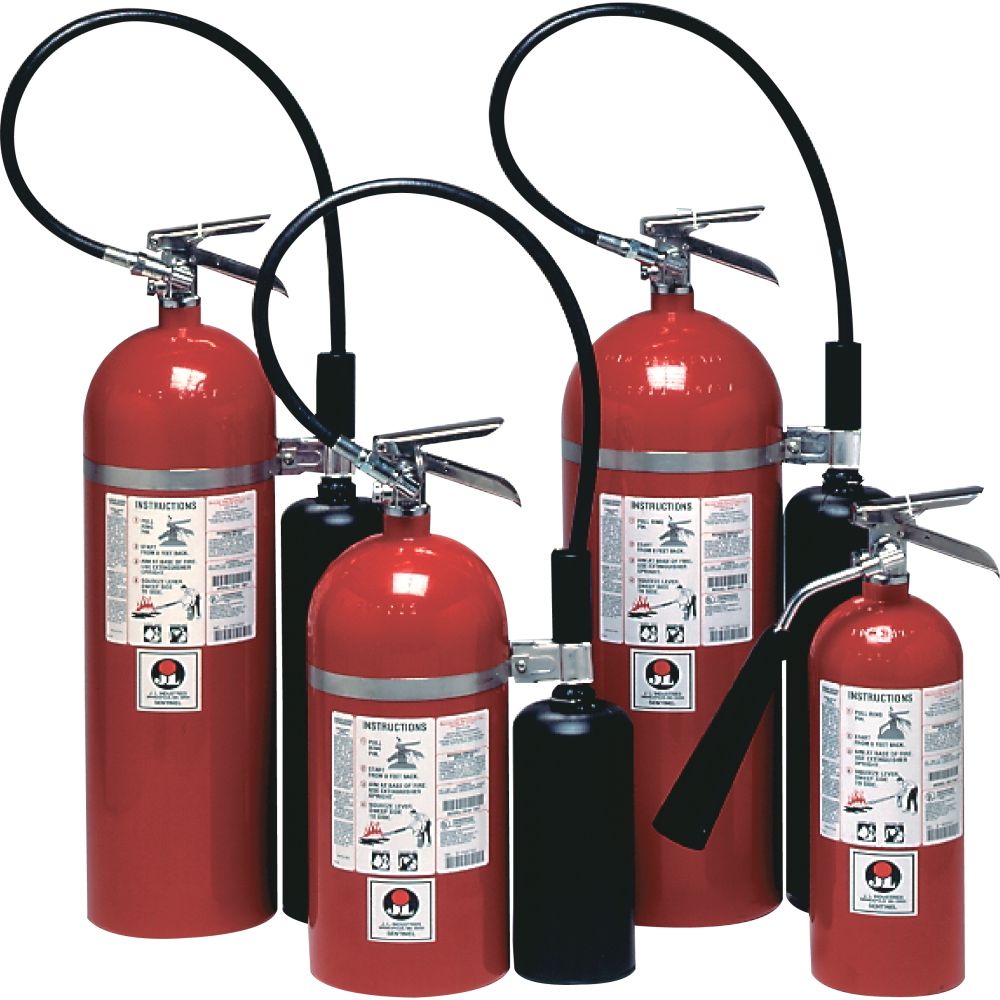

JL Industries Sentinel 5 5 lb CO2 Fire Extinguisher (FS05C)
FSP · P-02
What it is
JL Industries Sentinel 5 (FS05C) is a 5 lb portable fire extinguisher charged with liquid carbon dioxide under pressure and UL rated 5B:C for Class B and C fires. It stands 17-3/4" tall and 8-1/4" wide over the hose and handle, on a 5-1/4" diameter cylinder, and ships at 13.75 lb. The cylinder is lightweight high-pressure aluminum with a straight thread brass valve, with a visual pressure gauge and pull pin. The operating temperature range is -22°F (-30°C) to 120°F (49°C). A J-hook wall bracket ships with it as standard, and the Mark MB809C bracket is available separately. Carbon dioxide displaces oxygen, so JL says care should be exercised in confined areas.
The JL Industries FS05C is the Sentinel 5, a 5 lb portable fire extinguisher in JL's Sentinel series, charged with liquid carbon dioxide under pressure and UL rated 5B:C for Class B and C fires. It is specified for offices, classrooms, retail spaces and research facilities where an electrically non-conductive clean agent is wanted. The discharge changes into a gas and appears as a cloud of white snow, directed at the fire through a funnel-shaped horn. It is electrically non-conductive and leaves no residue.
- UL rating: 5B:C
- Agent and capacity: Carbon dioxide, 5 lb nominal
- Dimensions: 17-3/4" overall height, 8-1/4" overall width including hose and handle, 5-1/4" cylinder diameter
- Shipping weight: 13.75 lb (.65 cu. ft. shipping volume)
- Construction: Lightweight high-pressure aluminum cylinder with O-ring seal and straight thread brass valve. JL states the Sentinel is rust-free and up to 30% lighter than CO2 units with steel cylinders.
- Valve material: Straight thread brass
- Operating temperature: -22°F (-30°C) to 120°F (49°C)
- Standards: Conforms to CAN/ULC-S503, ANSI/UL 154 and CAN/ULC-S508 - ANSI/UL 711. Meets the current NFPA 10 requirements for portable fire extinguishers and is tested and listed by UL.
- US Coast Guard: Approved. The owner's manual notes that USCG approval is valid only when the extinguisher is fitted with the approved marine-type bracket named on its nameplate.
- In the box: the extinguisher with a J-hook wall bracket as standard; the Mark MB809C mounting bracket is available separately at extra charge.
- Charging: Ships factory charged.
- Application limits: Carbon dioxide discharges as a gas with small particles of snow at extremely low temperatures and will displace oxygen, so care should be exercised in confined areas.
JL's catalog lists this extinguisher as compatible with the following cabinet tub sizes:
- 10-1/2" x 24" x 6" tub (1000 series)
- 12" x 27" x 7-3/4" tub (2000 series)
- 16" x 32" x 7-3/4" tub (3000 series)
- 20" x 27" x 7-3/4" duo tub (4000 series, two extinguishers)
Sized to the cabinet tables in JL's fire protection catalog. JL's cabinet selection guide asks for at least 1" of clearance in height, width and depth over the extinguisher's own dimensions.
The optional Mark MB809C mounting bracket for this model is listed on the JL Industries MB809C bracket page.
JL Industries warrants CO2 and water or water-based extinguishers, including this model, free from defects in material and workmanship under normal use for five years from date of shipment; manufacturer warranty terms and conditions apply in all cases.
FSP · P-03
Submittal data
The same values print on the submittal sheet.
| Ratings and agent | |
|---|---|
| UL rating | 5B:C |
| Fire classes | Class B and C |
| Agent | Carbon dioxide |
| Agent chemical base | Carbon dioxide |
| Nominal capacity | 5 lb |
| Dimensions and weight | |
|---|---|
| Overall height | 17.75 in |
| Overall width | 8.25 in |
| Cylinder diameter | 5.25 in |
| Shipping weight | 13.75 lb |
| Shipping volume | .65 cu. ft. |
| Discharge | |
|---|---|
| Discharge design | Funnel-shaped horn, upright squeeze grip |
| Operation | Squeeze the lever, which opens the valve, allowing the agent to be forced out |
| Operating temperature range | -22°F (-30°C) to 120°F (49°C) |
| Construction | |
|---|---|
| Cylinder material | Lightweight high-pressure aluminum |
| Valve material | Straight thread brass |
| Mounting and standards | |
|---|---|
| Included mounting | J-hook wall bracket, standard |
| Optional mounting bracket | Mark MB809C, at extra charge |
| Tested to | CAN/ULC-S503, ANSI/UL 154 and CAN/ULC-S508 - ANSI/UL 711 |
| Standard | NFPA 10 Standard for Portable Fire Extinguishers |
| US Coast Guard approved | Yes |
| Warranty | Five years from date of shipment |
| Item | |
|---|---|
| JL Industries model | Sentinel 5 |
| JL Industries item number | FS05C |
| JL stock list | Yes |
FSP · P-04
Documents
FSP · P-05
General notes
What is the UL rating of the JL Industries Sentinel 5?
5B:C, for Class B and C fires.
What are the dimensions of the Sentinel 5 (FS05C)?
17-3/4" overall height, 8-1/4" overall width including hose and handle, and a 5-1/4" cylinder diameter.
How much does the FS05C weigh to ship?
13.75 lb, at .65 cu. ft. shipping volume.
Does the FS05C come with a bracket?
A J-hook wall bracket is standard. The Mark MB809C mounting bracket is available separately at extra charge.
Can the Sentinel FS05C be used in a confined space?
Carbon dioxide discharges as a gas at extremely low temperatures and displaces oxygen, so JL's manual says care should be exercised in confined areas.
