11051-P Cato Island Chief 10 lb Red MR Safe Plastic Fire Extinguisher Cabinet

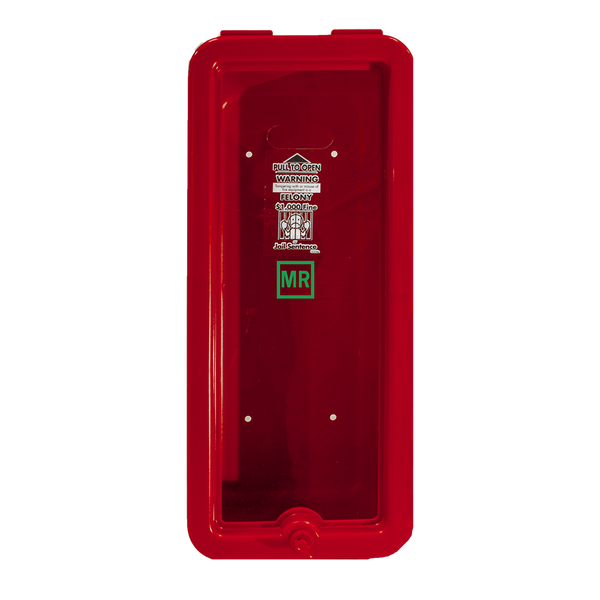

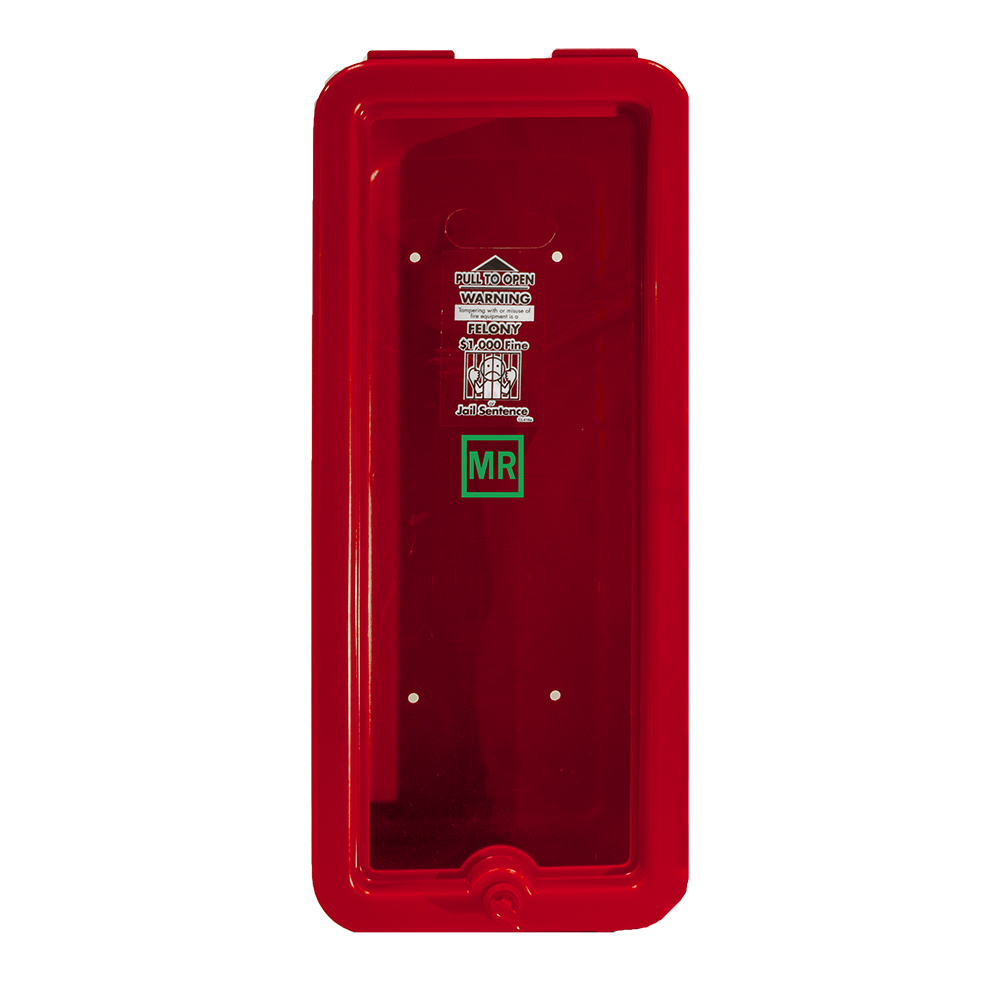

The Cato 11051-P is the Island Chief 10 lb plastic fire extinguisher cabinet in red. It is MR Safe as defined in ASTM F2503: the whole cabinet is electrically non-conductive, non-metallic and non-magnetic, so it can be used inside a magnetic resonance imaging environment. Instead of a break panel it uses a clear PETG hand pull panel, so the extinguisher comes out without breaking anything and without a tool.

• Cato catalog number: 11051-P
• Series and size: Island Chief 105-10 (10 lb class)
• MRI safety: MR Safe labelled, as defined in ASTM F2503. Electrically non-conductive, non-metallic and non-magnetic
• Tub inside dimensions: 6-3/4" W x 20-1/2" H x 6" D
• Trim outside dimensions: 9-1/4" W x 23-1/4" H x 7-1/4" D
• Surface mount hole pattern: a = 4-3/4", b = 2", c = 5-1/2", d = 1/4", x = 3-1/2", y = 11"
• Cabinet weight: 4.5 lb
• Tub and trim: injection moulded high impact polystyrene in .110 thickness with ultra-violet inhibitors for UV resistance, red
• Pull panel: .030 PETG with an oval notch cut out, clear only
• Hardware: ABS hexagonal lock with two keys, used to remove the trim and pull panel cover
• Decals: UV resistant FIRE labels on the tub sides, plus Tampering is a Felony and MR Safe labels on the pull panel
• Options: fire extinguisher rust prevention tray (Cato 10300)
• Mounting: surface mount

Extinguishers this cabinet holds:

• JL Industries, listed by Cato on the submittal: Cosmic 2.5-10, Galaxy 2.5-10, Mercury 2.5-11.
• Strike First, by cylinder diameter and height: SF-ABC110ST 2-1/2 lb ABC; SF-ABC310 5 lb ABC; SF-5CO2 5 lb CO2.
• Amerex, by cylinder diameter and height: B417T and B417TS 2-1/2 lb ABC; B402 and B500 5 lb ABC; B424 5 lb ABC; B443 6 lb ABC; B461 6 lb ABC; B456 10 lb ABC; B441 10 lb ABC (tight fit, measure first); 720 10 lb ABC high flow (tight fit, measure first).

In an MRI suite the extinguisher itself has to be non-magnetic too. Cato lists the non-magnetic JL Industries models against the 20 lb Island Chief; a steel cylinder extinguisher in a non-magnetic cabinet is still a projectile hazard.

Cato's own figures are the tub inside dimensions above. The Strike First and Amerex models listed are the ones whose published cylinder diameter clears the tub width and depth and whose overall height clears the tub height; the published width of a portable extinguisher includes its hose and handle, which sit beside the cylinder. Units marked tight fit have less than 1/4 inch to spare, so measure the extinguisher you actually own before ordering.

Mounting: the ADA standards for operable parts put the cabinet handle no higher than 48 inches above the finished floor, and an object whose leading edge sits between 27 and 80 inches above the floor may not project more than 4 inches into a circulation path. A surface mounted cabinet in a corridor is the case to check. Cato's technical article on mounting height and projection is linked in the documents below.

Sold and shipped by FireSafetyProducts.us, Raleigh NC, an authorized Cato distributor. Cato is a trademark of Activar Construction Products Group.

Activar warrants fire protection products other than extinguishers, including cabinets and alarm covers, free from defects in materials and workmanship for one year from date of shipment. Manufacturer warranty terms and conditions apply in all cases.
