- Model
- FE05C
- UL rating
- 3A-40B:C
- Ship weight
- 10.0 lb
- H × W × D
- 16.375″ × 7.25″ × 4.25″

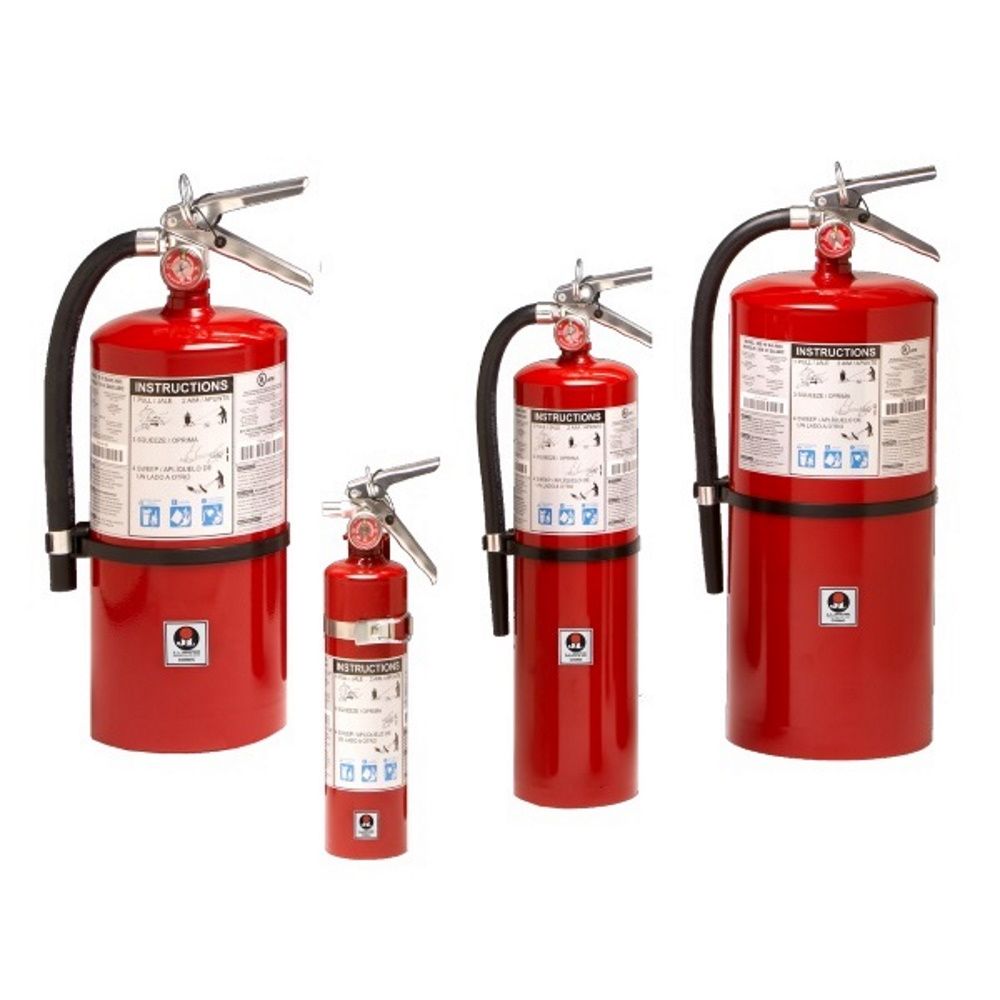

JL Industries Cosmic 5E 5 lb ABC Fire Extinguisher (FE05C)
FSP · P-02
What it is
JL Industries Cosmic 5E (FE05C) is a 5 lb portable fire extinguisher charged with specially fluidized and siliconized mono ammonium phosphate powder and UL rated 3A-40B:C for Class A, B and C fires. It stands 16-3/8" tall and 7-1/4" wide over the hose and handle, on a 4-1/4" diameter cylinder, and ships at 10 lb. The cylinder is heavy-duty steel with an aluminum valve, with a visual pressure gauge and pull pin. The operating temperature range is -65°F (-53°C) to 120°F (49°C). A J-hook wall bracket ships with it as standard, and the Mark MB818C bracket is available separately. JL does not recommend ABC dry chemical for use on sensitive electronic equipment.
The JL Industries FE05C is the Cosmic 5E, a 5 lb portable fire extinguisher in JL's Cosmic series, charged with specially fluidized and siliconized mono ammonium phosphate powder and UL rated 3A-40B:C for Class A, B and C fires. It is specified for offices, classrooms, churches, parking garages and retail spaces. The powder smothers and breaks the chain reaction on Class B fires, fuses and insulates Class A fires, and is a non-conductor of electricity. It is non-toxic.
- UL rating: 3A-40B:C
- Agent and capacity: ABC (multi-purpose) dry chemical, 5 lb nominal
- Dimensions: 16-3/8" overall height, 7-1/4" overall width including hose and handle, 4-1/4" cylinder diameter
- Shipping weight: 10 lb (.35 cu. ft. shipping volume)
- Construction: Heavy-duty steel cylinder with siphon tube, replaceable molded valve stem seal, visual pressure gauge, pull pin and upright squeeze grip. Corrosion and impact-resistant powder coat finish.
- Valve material: Aluminum
- Operating temperature: -65°F (-53°C) to 120°F (49°C)
- Standards: Conforms to CAN/ULC-S504 - ANSI/UL 299 and CAN/ULC-S508 - ANSI/UL 711. Meets the current NFPA 10 requirements for portable fire extinguishers and is tested and listed by UL.
- US Coast Guard: Approved. The owner's manual notes that USCG approval is valid only when the extinguisher is fitted with the approved marine-type bracket named on its nameplate.
- In the box: the extinguisher with a J-hook wall bracket as standard; the Mark MB818C mounting bracket is available separately at extra charge.
- Charging: Ships factory charged.
- Application limits: JL does not recommend ABC dry chemical for use on sensitive electronic equipment.
JL's catalog lists this extinguisher as compatible with the following cabinet tub sizes:
- 9" x 18" x 5-1/2" tub (Ambassador, Academy, Cosmopolitan and Panorama 8100 series)
- 10-1/2" x 24" x 5" tub (1700 series)
- 10-1/2" x 24" x 5-1/2" tub (1800 series)
- 10-1/2" x 24" x 6" tub (1000 series)
- 12" x 27" x 7-3/4" tub (2000 series)
- 16" x 32" x 7-3/4" tub (3000 series)
- 20" x 27" x 7-3/4" duo tub (4000 series, two extinguishers)
Sized to the cabinet tables in JL's fire protection catalog. JL's cabinet selection guide asks for at least 1" of clearance in height, width and depth over the extinguisher's own dimensions.
The optional Mark MB818C mounting bracket for this model is listed on the JL Industries MB818C bracket page.
JL Industries warrants its fire extinguishers free from defects in material and workmanship under normal use for six years from date of shipment; manufacturer warranty terms and conditions apply in all cases.
FSP · P-03
Submittal data
The same values print on the submittal sheet.
| Ratings and agent | |
|---|---|
| UL rating | 3A-40B:C |
| Fire classes | Class A, B and C |
| Agent | ABC (multi-purpose) dry chemical |
| Agent chemical base | Mono ammonium phosphate, specially fluidized and siliconized |
| Nominal capacity | 5 lb |
| Dimensions and weight | |
|---|---|
| Overall height | 16.375 in |
| Overall width | 7.25 in |
| Cylinder diameter | 4.25 in |
| Shipping weight | 10 lb |
| Shipping volume | .35 cu. ft. |
| Discharge | |
|---|---|
| Discharge design | Hose and nozzle, upright squeeze grip |
| Operation | Squeeze the lever, which opens the valve, allowing the agent to be forced out |
| Operating temperature range | -65°F (-53°C) to 120°F (49°C) |
| Construction | |
|---|---|
| Cylinder material | Heavy-duty steel |
| Valve material | Aluminum |
| Mounting and standards | |
|---|---|
| Included mounting | J-hook wall bracket, standard |
| Optional mounting bracket | Mark MB818C, at extra charge |
| Tested to | CAN/ULC-S504 - ANSI/UL 299 and CAN/ULC-S508 - ANSI/UL 711 |
| Standard | NFPA 10 Standard for Portable Fire Extinguishers |
| US Coast Guard approved | Yes |
| Warranty | Six years from date of shipment |
| Item | |
|---|---|
| JL Industries model | Cosmic 5E |
| JL Industries item number | FE05C |
| JL stock list | Yes |
FSP · P-04
Documents
FSP · P-05
General notes
What is the UL rating of the JL Industries Cosmic 5E?
3A-40B:C, for Class A, B and C fires.
What are the dimensions of the Cosmic 5E (FE05C)?
16-3/8" overall height, 7-1/4" overall width including hose and handle, and a 4-1/4" cylinder diameter.
How much does the FE05C weigh to ship?
10 lb, at .35 cu. ft. shipping volume.
Does the FE05C come with a bracket?
A J-hook wall bracket is standard. The Mark MB818C mounting bracket is available separately at extra charge.
Is the FE05C on JL's stock list?
Yes, the JL stock list shows this model stocked for quicker shipment.
