- Model
- FM05C
- UL rating
- 5B:C
- Ship weight
- 9.5 lb
- H × W × D
- 16.375″ × 7.25″ × 4.25″

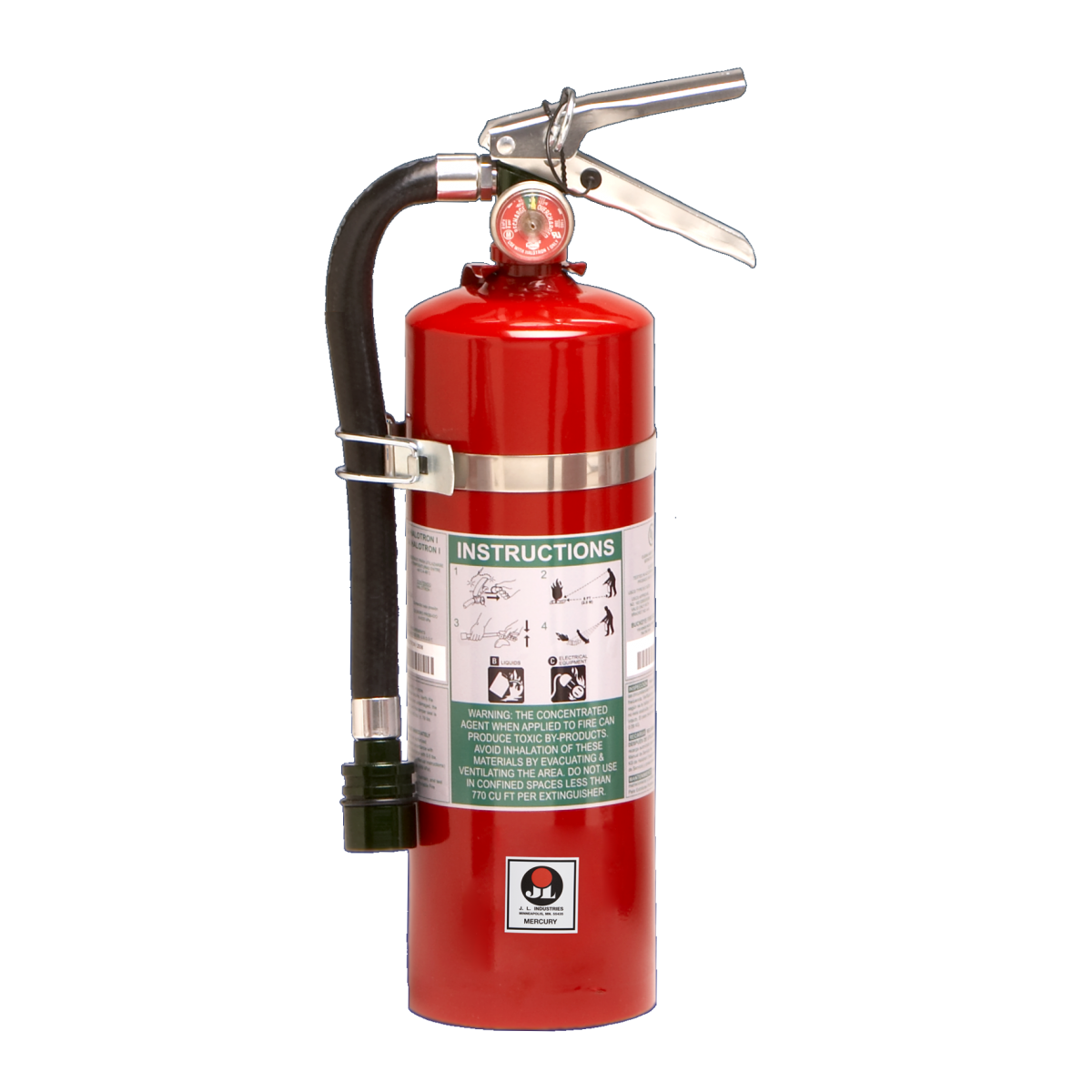

JL Industries Mercury 5 5 lb Halotron I Fire Extinguisher (FM05C)
FSP · P-02
What it is
JL Industries Mercury 5 (FM05C) is a 5 lb portable fire extinguisher charged with the Halotron I clean agent and UL rated 5B:C for Class B and C fires. It stands 16-3/8" tall and 7-1/4" wide over the hose and handle, on a 4-1/4" diameter cylinder, and ships at 9.5 lb. The cylinder is drawn steel with an aluminum valve, with a visual pressure gauge and pull pin. The operating temperature range is -40°F (-40°C) to 120°F (49°C). A Mark MB818C bracket ships with it as standard. Halotron I must not be used in confined areas smaller than the nameplate indicates, in food preparation areas, or on fires involving chlorine-containing oxidizers.
The JL Industries FM05C is the Mercury 5, a 5 lb portable fire extinguisher in JL's Mercury series, charged with the Halotron I clean agent and UL rated 5B:C for Class B and C fires. It is specified for protecting sensitive electronic equipment, laboratories, museums and vehicle maintenance facilities. The agent discharges as a liquid and then quickly evaporates, leaving no residue to clean up. It is electrically non-conductive, EPA-approved and U.S. FAA-approved for use in airports.
- UL rating: 5B:C
- Agent and capacity: Halotron I clean agent, 5 lb nominal
- Dimensions: 16-3/8" overall height, 7-1/4" overall width including hose and handle, 4-1/4" cylinder diameter
- Shipping weight: 9.5 lb (.3 cu. ft. shipping volume)
- Construction: Drawn steel cylinder with steel siphon tubes, power cone discharge stream, upright squeeze grip, visual pressure gauge and corrosion-resistant paint finish.
- Valve material: Aluminum
- Operating temperature: -40°F (-40°C) to 120°F (49°C)
- Standards: Conforms to CAN/ULC-S556 - ANSI/UL 2129 and CAN/ULC-S508 - ANSI/UL 711. Meets the current NFPA 10 requirements for portable fire extinguishers and is tested and listed by UL.
- US Coast Guard: Approved. The owner's manual notes that USCG approval is valid only when the extinguisher is fitted with the approved marine-type bracket named on its nameplate.
- In the box: the extinguisher and a Mark MB818C mounting bracket, supplied as standard.
- Charging: Ships factory charged.
- Application limits: Halotron I should not be used in confined areas smaller than indicated on the extinguisher nameplate, in food preparation areas, or in the presence of people with cardiac problems, and never on fires involving chlorine-containing oxidizers such as pool chemicals. The manual carries the manufacturer's HCFC-123 ozone-depletion warning.
JL's catalog lists this extinguisher as compatible with the following cabinet tub sizes:
- 9" x 18" x 5-1/2" tub (Ambassador, Academy, Cosmopolitan and Panorama 8100 series)
- 10-1/2" x 24" x 5" tub (1700 series)
- 10-1/2" x 24" x 5-1/2" tub (1800 series)
- 10-1/2" x 24" x 6" tub (1000 series)
- 12" x 27" x 7-3/4" tub (2000 series)
- 16" x 32" x 7-3/4" tub (3000 series)
- 20" x 27" x 7-3/4" duo tub (4000 series, two extinguishers)
Sized to the cabinet tables in JL's fire protection catalog. JL's cabinet selection guide asks for at least 1" of clearance in height, width and depth over the extinguisher's own dimensions.
The Mark MB818C bracket that ships with this extinguisher is also sold on its own on the JL Industries MB818C bracket page.
JL Industries warrants its fire extinguishers free from defects in material and workmanship under normal use for six years from date of shipment; manufacturer warranty terms and conditions apply in all cases.
FSP · P-03
Submittal data
The same values print on the submittal sheet.
| Ratings and agent | |
|---|---|
| UL rating | 5B:C |
| Fire classes | Class B and C |
| Agent | Halotron I clean agent |
| Agent chemical base | Halotron I (HCFC blend B) |
| Nominal capacity | 5 lb |
| Dimensions and weight | |
|---|---|
| Overall height | 16.375 in |
| Overall width | 7.25 in |
| Cylinder diameter | 4.25 in |
| Shipping weight | 9.5 lb |
| Shipping volume | .3 cu. ft. |
| Discharge | |
|---|---|
| Discharge design | Power cone discharge stream, upright squeeze grip |
| Operation | Squeeze the lever, which opens the valve, allowing the agent to be forced out |
| Operating temperature range | -40°F (-40°C) to 120°F (49°C) |
| Construction | |
|---|---|
| Cylinder material | Drawn steel |
| Valve material | Aluminum |
| Mounting and standards | |
|---|---|
| Included mounting | Mark MB818C bracket, standard |
| Tested to | CAN/ULC-S556 - ANSI/UL 2129 and CAN/ULC-S508 - ANSI/UL 711 |
| Standard | NFPA 10 Standard for Portable Fire Extinguishers |
| US Coast Guard approved | Yes |
| Warranty | Six years from date of shipment |
| Item | |
|---|---|
| JL Industries model | Mercury 5 |
| JL Industries item number | FM05C |
| JL stock list | Yes |
FSP · P-04
Documents
FSP · P-05
General notes
What is the UL rating of the JL Industries Mercury 5?
5B:C, for Class B and C fires.
What are the dimensions of the Mercury 5 (FM05C)?
16-3/8" overall height, 7-1/4" overall width including hose and handle, and a 4-1/4" cylinder diameter.
How much does the FM05C weigh to ship?
9.5 lb, at .3 cu. ft. shipping volume.
Does the FM05C come with a bracket?
Yes. The Mark MB818C mounting bracket is standard with this model.
Where should Halotron I not be used?
Not in confined areas smaller than the extinguisher nameplate indicates, not in food preparation areas, not around people with cardiac problems, and never on fires involving chlorine-containing oxidizers such as pool chemicals.
