- Model
- MB817C
- Ship weight
- 1.0 lb

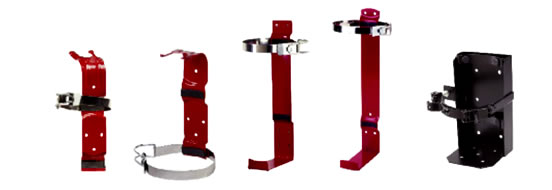

JL Industries Mark MB817C Fire Extinguisher Mounting Bracket
FSP · P-02
What it is
JL Industries Mark MB817C is a steel wall or vehicle mounting bracket for JL Industries C model portable fire extinguishers, finished in red epoxy powder paint and tested to UL 240. It fits Cosmic 2-1/2 (FE02C), Galaxy 2-1/2 (FG02C), Mercury 2-1/2 (FM02C) and Purple K 2-1/2. The strap assembly is 8" long and 1-3/4" wide and is backed with foam tape. JL supplies this bracket as standard with Cosmic 2-1/2, Galaxy 2-1/2, Mercury 2-1/2, Purple K 2-1/2, so it is already in the box on those models. UL requires a hanging device to withstand five times the weight of the charged extinguisher and not less than 100 pounds. Wall fasteners are not included.
The JL Industries Mark MB817C is a steel wall or vehicle mounting bracket for JL's C model portable fire extinguishers. JL supplies a J-hook as standard with most extinguishers; the Mark brackets are the strap and latch style option used where the extinguisher has to be held positively, such as on a vehicle, in a corridor subject to knocks, or inside a cabinet tub. It fits Cosmic 2-1/2 (FE02C), Galaxy 2-1/2 (FG02C), Mercury 2-1/2 (FM02C) and Purple K 2-1/2.
- Material: Steel
- Finish: Red epoxy powder paint
- Bracket size: Strap assembly 8" long x 1-3/4" wide, with foam tape
- Test standard: UL 240
- Fits: Cosmic 2-1/2 (FE02C), Galaxy 2-1/2 (FG02C), Mercury 2-1/2 (FM02C) and Purple K 2-1/2
- Supplied as standard with: Cosmic 2-1/2, Galaxy 2-1/2, Mercury 2-1/2, Purple K 2-1/2 - on those models the bracket is already in the box.
- Other reference numbers: 700287/A-2
- Fitment note: the fitment list is taken from JL's Mark bracket range submittal, which shows MB817C as standard for the 2-1/2 lb models. The individual MB817C submittal sheet repeats the MB818C fitment list, which appears to be an error on that sheet.
- In the box: one Mark MB817C bracket. Wall fasteners are not included; JL's owner's manual specifies the fastener type for wood stud, sheetrock, cinderblock, concrete, tile and steel substrates.
- Selection note: JL's bracket submittal says to select C brackets for C model extinguishers and A brackets for A model extinguishers.
- Load: UL specifies that a hanging device must withstand a vertical force of five times the weight of the charged extinguisher, and not less than 100 pounds.
Extinguishers this bracket is listed for on this store: FE02C, FG02C, FM02C.
The owner's manual notes that for marine use, a US Coast Guard approval is valid only when the extinguisher is fitted with the approved marine-type bracket named on its nameplate.
JL Industries warrants fire protection products other than extinguishers, including brackets, free from defects in materials and workmanship for one year from date of shipment; manufacturer warranty terms and conditions apply in all cases.
FSP · P-03
Submittal data
The same values print on the submittal sheet.
| Construction | |
|---|---|
| Material | Steel |
| Finish | Red epoxy powder paint |
| Dimensions and weight | |
|---|---|
| Bracket size | Strap assembly 8" long x 1-3/4" wide, with foam tape |
| Mounting and standards | |
|---|---|
| Test standard | UL 240 |
| Hanging device load | Five times the weight of the charged extinguisher, not less than 100 lb (UL) |
| Fits extinguisher models | Cosmic 2-1/2 (FE02C), Galaxy 2-1/2 (FG02C), Mercury 2-1/2 (FM02C) and Purple K 2-1/2 |
| Supplied as standard with | Cosmic 2-1/2, Galaxy 2-1/2, Mercury 2-1/2, Purple K 2-1/2 |
| Bracket family | C model extinguishers |
| Warranty | One year from date of shipment |
| Item | |
|---|---|
| JL Industries item number | MB817C |
| Other reference numbers | 700287/A-2 |
| JL stock list | Not listed |
FSP · P-04
Documents
FSP · P-05
General notes
Which extinguishers does the Mark MB817C fit?
Cosmic 2-1/2 (FE02C), Galaxy 2-1/2 (FG02C), Mercury 2-1/2 (FM02C) and Purple K 2-1/2.
What is the Mark MB817C made of?
Steel, finished in red epoxy powder paint.
Is the Mark MB817C UL listed?
JL's submittal gives UL 240 as the test standard for this bracket.
Do I need this bracket if I already bought the extinguisher?
No, if your extinguisher is one of these: Cosmic 2-1/2, Galaxy 2-1/2, Mercury 2-1/2, Purple K 2-1/2. JL supplies this bracket as standard with those models.
Are wall fasteners included?
No. JL's owner's manual specifies the screw or anchor type for wood stud, sheetrock, cinderblock, concrete, tile and steel substrates.
